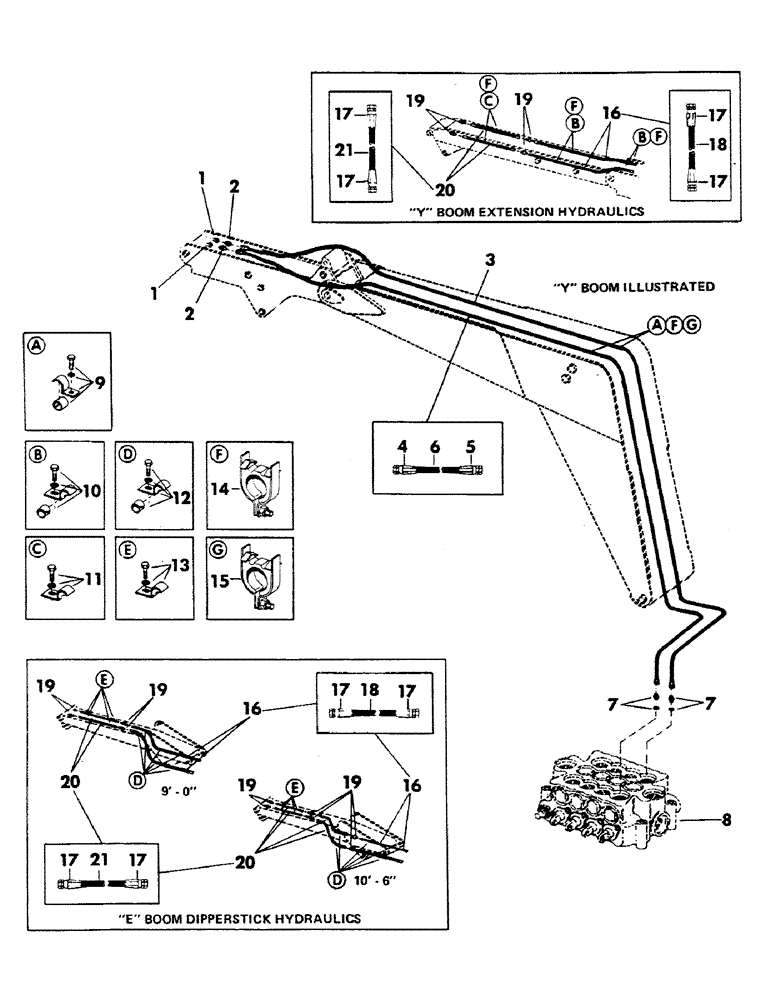

Запчасти Case 40YC (102) - AUXILIARY BOOM HYDRULICS (07) - HYDRAULIC SYSTEM

1

S6277

NUT

sleeve - (3/4" tube) - 1-1/16" - 12 female - 37 degrees flared

2шт.

2

S101833

ADAPTER

reducing - (3/4" x 1/2" tube) - 3/4" - 16 male - 37 degrees flared

2шт.

3

S75824

HOSE ASSY.

HOSE, high pressure - 3/4" ID x 28' long - (Consists of items 4, 5 and 6)

2шт.

4

S60037

COUPLING, reusable - 1-1/16" - 12 male - 37 degrees flared

2шт.

5

S220953

TUBE ASSY.,1.5 - 2" OD x 4" L

COUPLING, reusable - 1-1/16" - 12 female - 37 degrees flared

2шт.

Change in listing.

1шт.

6

S220967

TUBE

HOSE, high pressure - (Bulk) - 3/4" ID x 27' - 10" long

1шт.

Change in listing.

1шт.

7

S7969

CONNECTOR, ELEC

CONNECTOR - (3/4" tube) - 1-5/16" - 12 male x 1-1/16" - 12 male 37 degrees flared - (Includes "o" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

8

VALVE, 4-spool main control - (For breakdown, see Figure 149)

1шт.

9

S75850

CLAMP

tube - (Used on units with serial no. 1500 thru 2003 equipped with "Y" boom)

1шт.

S75850

CLAMP

tube - (Used on units with serial no. 1500 thru 2040 and 2054 equipped with "E" boom)

1шт.

S75794

RING

compression

1шт.

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" gr 5

1шт.

S4399

WASHER

lock - 1/2"

1шт.

10

S77324

CLAMP

tube - (Used on units with serial no. 1500 thru 2003 equipped with "Y" boom)

1шт.

S2464

BOLT

CPSW - 1/2" NC x 3/4" gr 5

1шт.

Change in listing.

1шт.

S4399

WASHER

lock - 1/2"

1шт.

S75792

RING

compression

1шт.

11

S77324

CLAMP

tube - (Used on units with serial no. 1500 thru 2003 equipped with "Y" boom)

1шт.

S2464

BOLT

CPSW - 1/2" NC x 3/4" gr 5

1шт.

Change in listing.

1шт.

S4399

WASHER

flat - 1/2"

1шт.

12

S77324

CLAMP

tube - (Used on units with serial no. 1500 thru 2040 and 2054 equipped with "E" boom)

1шт.

S2473

BOLT

CPSW - 1/2" NC x 3" gr 5

1шт.

S4399

WASHER

flat - 1/2"

1шт.

S75792

RING

compression

1шт.

13

S77324

CLAMP

tube - (Used on units with serial no. 1500 thru 2040 and 2054 equipped with "E" boom)

1шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

1шт.

S4399

WASHER

flat - 1/2"

1шт.

14

S93266

CLAMP

tube - (Used on units with serial no. 2004 - up equipped with "Y" boom)

1шт.

S93266

CLAMP

tube - (Used on units with serial no. 2041 thru 2053 and 2055 - up equipped with "E" boom)

1шт.

15

S99742

CLAMP

tube - (Used on units with serial no. 2041 thru 2053 and 2055 - up equipped with "E" boom)

1шт.

16

S11234

FLEXIBLE HOSE

HOSE, high pressure - 3/8" ID x 7' - 2-1/2" long - (Consists of items 17 and 18)

1шт.

17

S11091

FITTING

COUPLING, reusable - 3/4" - 16 female - 37 degrees flared

1шт.

18

S28465

HOSE

high pressure - (Bulk) - 2 pieces - 3/8" ID x 7' - 1/2" long

1шт.

19

S101334

UNION

- (1/2" tube) - 3/16" - 16 male x 3/4" - 16 male - 37 degrees flared

1шт.

20

S11236

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 26" long - (Consists of items 17 and 21)

1шт.

21

S28465

HOSE

high pressure - (Bulk) - 3/8" ID x 24" long

1шт.
