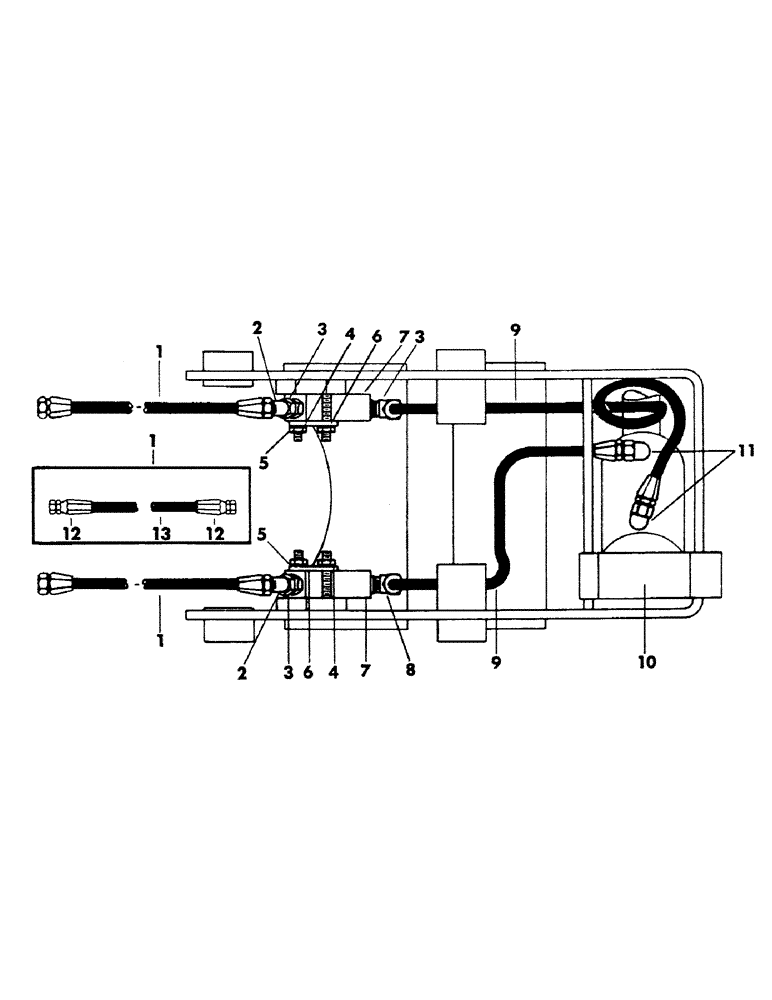

Запчасти Case 40YC (101) - WRIST -O - TWIST HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S11236

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 26" long - (Consists of items 12 and 13)

2шт.

2

S9490

ELBOW

45 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

2шт.

3

S7719

ADAPTER

- (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degrees flared

3шт.

4

S4222

NUT

- 3/8" NC

4шт.

5

S4397

WASHER

lock - 3/8"

4шт.

6

S81912

SPACER

2шт.

7

S210358

LOCK VALVE

VALVE, flow control

2шт.

8

S7731

ELBOW

adapter - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male 37 degrees flared

1шт.

9

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

2шт.

10

CYLINDER, wrist-o-twist - (For breakdown, see Figure 133)

1шт.

11

S10357

ELBOW

90 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

2шт.

12

S11091

FITTING

COUPLING, reusable - 3/4" - 16 female - 37 degrees flared

4шт.

13

S28465

HOSE

high pressure - (Bulk) - 2 pieces - 3/8" ID x 24" long

1шт.
