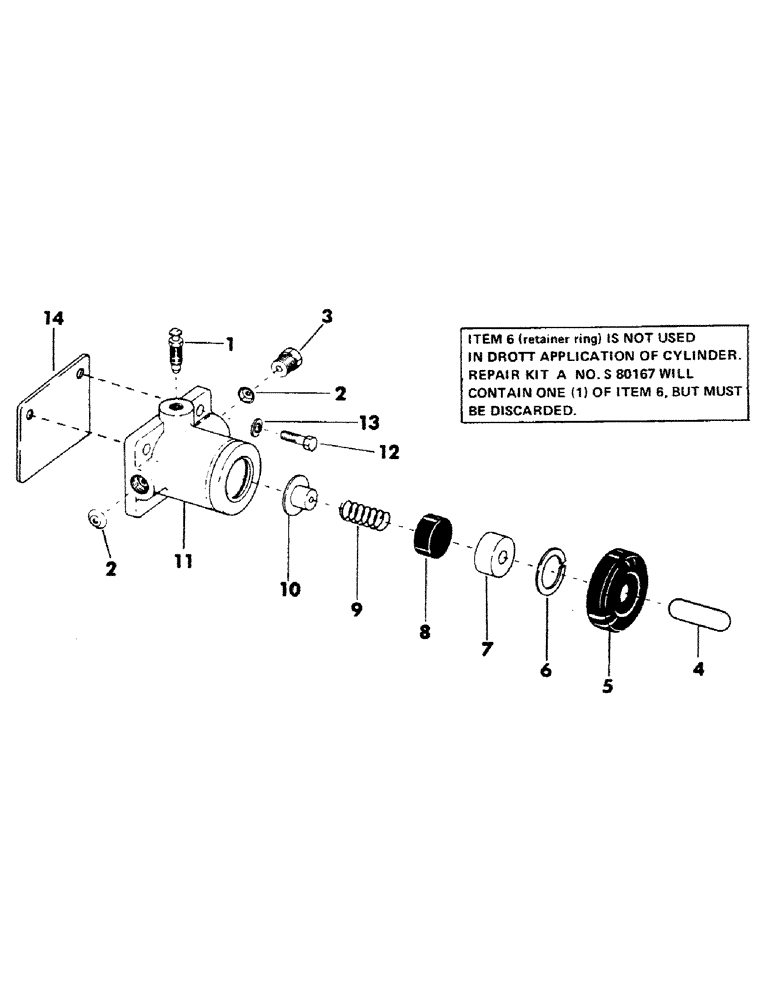

Запчасти Case 40YC (088) - TRACK BRAKE CYLINDER, *(USED ON UNITS WITH SERIAL NO. 1500 THRU 6270529) (07) - HYDRAULIC SYSTEM

S209804

CYLINDER

track brake - complete - (Consists of items 1 thru 11)

2шт.

1

SCREW, bleeder, quantites listed are for one complete brake cylinder

1шт.

NOTE: Circled letters in part number column indicate these items are serviced in kit only.

1шт.

2

INSERT - 1/4" tube seat, quantites listed are for one complete brake cylinder

2шт.

NOTE: Circled letters in part number column indicate these items are serviced in kit only.

1шт.

3

PLUG - 1/4" tube seat, quantites listed are for one complete brake cylinder

1шт.

NOTE: Circled letters in part number column indicate these items are serviced in kit only.

1шт.

4

NSS

NOT SOLD SEPARAT

ROD, push, quantites listed are for one complete brake cylinder

1шт.

5

BOOT, quantites listed are for one complete brake cylinder

1шт.

NOTE: Circled letters in part number column indicate these items are serviced in kit only.

1шт.

6

RING, retainer - (In S80167 kit - do not use), quantites listed are for one complete brake cylinder

1шт.

NOTE: Circled letters in part number column indicate these items are serviced in kit only.

1шт.

7

PISTON, quantites listed are for one complete brake cylinder

1шт.

NOTE: Circled letters in part number column indicate these items are serviced in kit only.

1шт.

8

CUP, quantites listed are for one complete brake cylinder

1шт.

NOTE: Circled letters in part number column indicate these items are serviced in kit only.

1шт.

9

SPRING, return, quantites listed are for one complete brake cylinder

1шт.

NOTE: Circled letters in part number column indicate these items are serviced in kit only.

1шт.

10

NSS

NOT SOLD SEPARAT

STOP, spring, quantites listed are for one complete brake cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

BODY, quantites listed are for one complete brake cylinder

1шт.

12

S2351

BOLT

CPSW - 1/4" NC x 1" gr 5, quantites listed are for one complete brake cylinder

2шт.

13

S4395

WASHER, LOCK

- 1/4", quantites listed are for one complete brake cylinder

2шт.

14

S96840

SPACER

quantites listed are for one complete brake cylinder

4шт.

a

S80167

PACKAGE,SERVICE

KIT, service - (Consists of items 1 thru 3 and 5 thru 9), quantites listed are for one complete brake cylinder

1шт.
