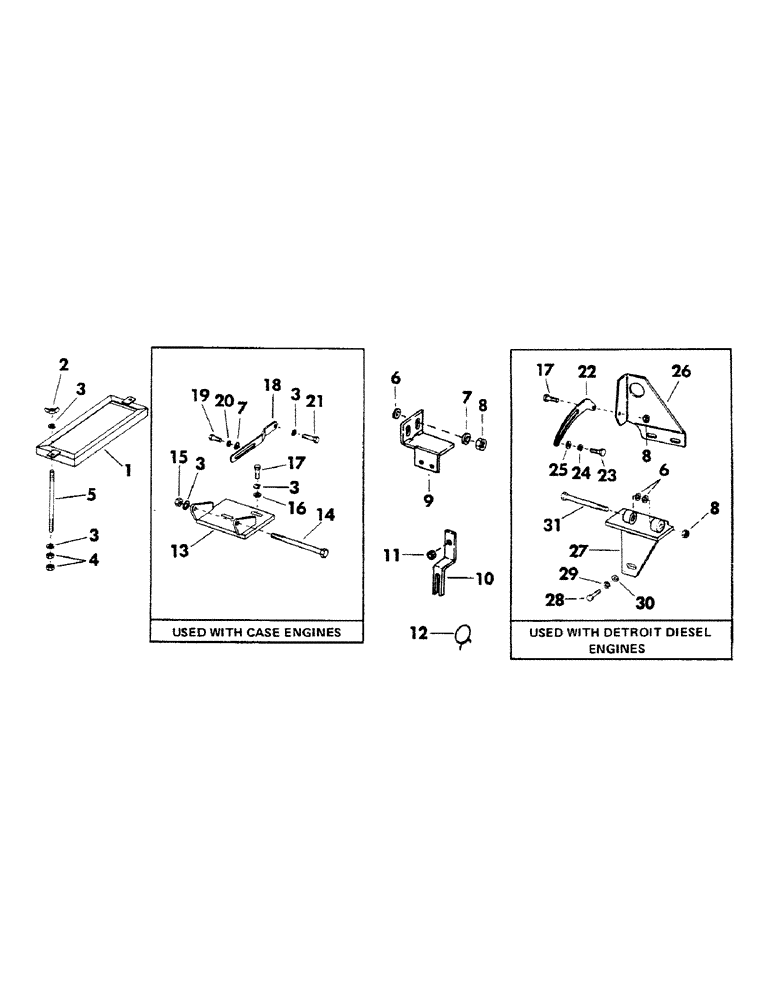

Запчасти Case 40YC (163) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
S202780
BRACKET
battery hold down
2шт.
2
S77941
NUT, wing - 3/8" NC
4шт.
3
S4397
WASHER
lock - 3/8" NC
1шт.
4
S4222
NUT
- 3/8" NC
8шт.
5
S78386
STUD
ROD
4шт.
6
S7387
WASHER
flat - 13/16"
1шт.
7
S7395
WASHER
flat - 1/2"
1шт.
8
S17167
INSTRUCTION
NUT, self locking - 3/8" NC
1шт.
9
S219384
BRACKET, micro switch mounting - (Brake warning system)
1шт.
10
S93331
BRACKET, micro switch mounting - (Brake warning system)
1шт.
11
231-1444
NUT,1/4"-20, GB
NUT, LOCK, 1/4"-20, GB
1шт.
12
S16068
CLAMP
1шт.
13
S505695
BRACKET, alternator mounting
1шт.
14
S2485
BOLT
CPSW - 1/2" NC x 6" gr 5
1шт.
15
S17169
INSTRUCTION
NUT, self locking - 1/2" NC
1шт.
16
S7385
INSTRUCTION
WASHER, flat - 3/8"
1шт.
17
S2402
BOLT
CPSW - 3/8" NC x 1-1/4" gr 5
1шт.
18
S219335
BRACKET
alternator adjusting
1шт.
19
S2465
BOLT (MACHINE)
CPSW - 1/2" NC x 1" gr 5
1шт.
20
S4399
WASHER
lock - 1/2"
1шт.
21
S2400
MUFFLER
CPSW - 3/4" NC x 1" gr 5
1шт.
22
S200898M1
STRAP
BRACKET, alternator adjusting
1шт.
23
S2376
CPSW - 5/16" NC x 1" gr 5
1шт.
24
S4396
WASHER, LOCK
- 5/16"
1шт.
25
S7383
WASHER
flat - 11/32"
2шт.
26
S211847
BRACKET, alternator left
1шт.
27
S211613
BRACKET, alternator mounting
1шт.
28
S2430
BOLT
CPSW - 7/16" NC x 1" gr 5
2шт.
29
S4398
WASHER, LOCK
- 7/16"
2шт.
30
S7389
WASHER
flat - 7/16"
2шт.
31
S2412
BOLT
CPSW - 3/8" NC x 3-3/8" gr 5
1шт.
Выбрано товаров: 31
