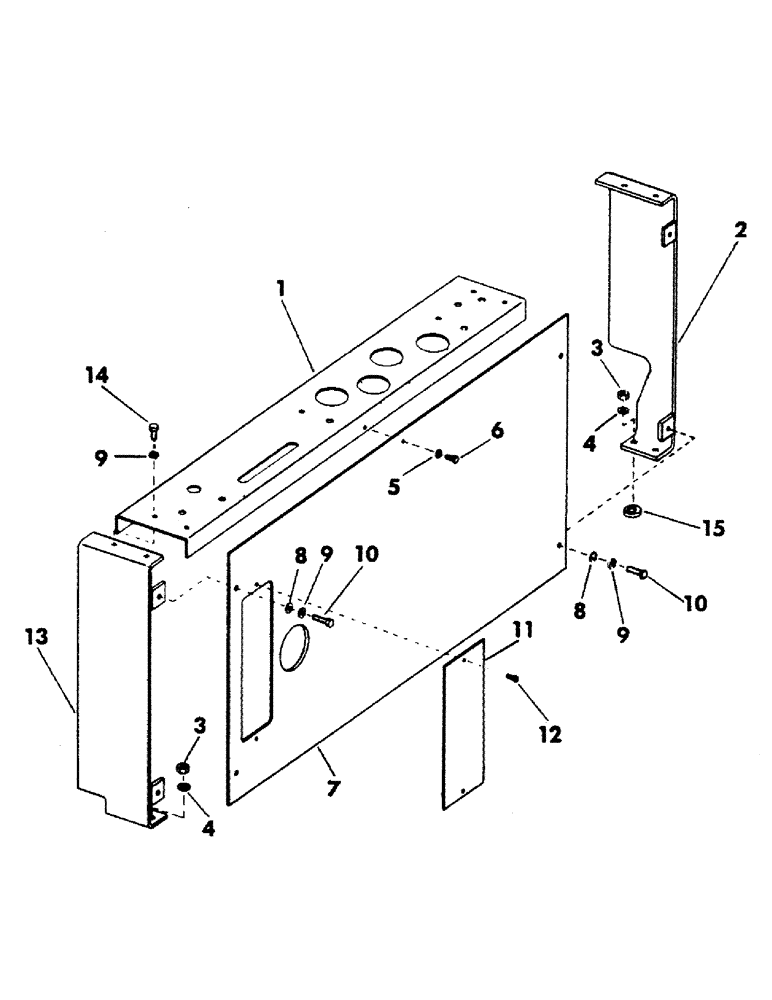

Запчасти Case 40YC (162) - INSTRUMENT PANEL AND ATTACHING PARTS (06) - ELECTRICAL SYSTEMS

1

S603457

PANEL, instrument

1шт.

2

S505704

BRACKET

1шт.

3

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

4

S7385

INSTRUCTION

WASHER, flat - 3/8"

4шт.

5

S4395

WASHER, LOCK

- 1/4"

1шт.

6

S2349

BOLT

CPSW - 1/4" NC x 1/2" gr 5

1шт.

7

S505708

PANEL, side

1шт.

8

S7380

WASHER

flat - 1/4"

4шт.

9

S4395

WASHER, LOCK

- 1/4"

8шт.

10

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" gr 5

4шт.

11

S92342

DOOR, fuse box

1шт.

12

S7579

SCREW

self tapping - no. 10 NC x 3/8"

2шт.

12

S505706

BRACKET

1шт.

14

S2349

BOLT

CPSW - 1/4" NC x 1/2" gr 5

4шт.

15

S7893

WASHER, flat - 1/2" - (Used as shim for back holes only)

2шт.
