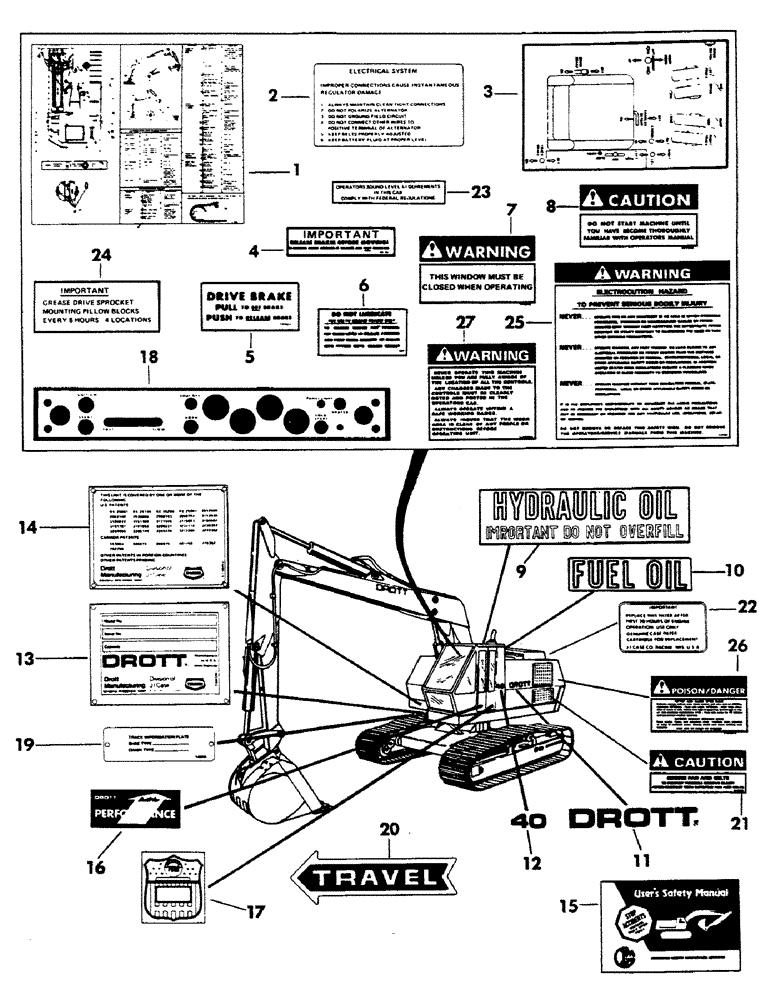

Запчасти Case 40YC (164) - GRAPHIC PRODUCTS (05) - UPPERSTRUCTURE CHASSIS

1

S506415

INSTRUCTION

DECAL, lube and maintenance

1шт.

2

S205825

DECAL

battery connections

1шт.

3

S506160

DECAL

operators controls - (Used on units with serial no. 1500 thru 6270457 and 6270460 thru 6270463)

2шт.

4

S80123

DECAL, brake - (Used on units with serial no. 1500 thru 6270489)

1шт.

5

S79862

DECAL

drive brake

1шт.

6

S80124

DECAL, do not lubricate

1шт.

7

S105633

DECAL

close window - (Supersedes S94000)

1шт.

8

S86264

DECAL

operators caution

1шт.

9

S80209

DECAL

hydraulic oil

1шт.

10

S70192

DECAL

fuel oil

1шт.

11

S952323

DECAL

Drott - (5" high) - (Used on units with serial no. 1500 thru 6270457 and 6270460 thru 6270463)

5шт.

12

S506027

DECAL

40 - (5" high) - (Used on units with serial no. 1500 thru 6270457 and 6270460 thru 6270463)

2шт.

13

S68433M1

PLATE, identification

1шт.

S23395

SCREW

drive

4шт.

14

S71660M3

PLATE, patent - (Used on units with serial no. 1500 thru 6270457 and 6270460 thru 6270463)

1шт.

S23395

SCREW

drive

4шт.

15

S406132

MANUAL, safety - (Supersedes S94087)

1шт.

16

S221202

DECAL

performance

1шт.

17

S89871

DECAL

PCSA

1шт.

18

S506469

DECAL

instrument panel

1шт.

19

S98969

PLATE

track information

1шт.

20

S506884

INDICATOR

travel - (Left hand) - (Illustrated)

1шт.

S506885

INDICATOR

travel - (Right hand) - (Not illustrated)

1шт.

21

S107837

DECAL

fan caution

2шт.

22

S89330

DECAL

oil filter - (Used on Case engine only)

1шт.

23

S95214

DECAL, sound level requirements

1шт.

24

S216990

DECAL

pillow block

1шт.

25

S510658

DECAL

electrocution hazard

1шт.

26

S105670

DECAL

battery hazard

1шт.

27

S229054

DECAL

operators controls warning

1шт.
