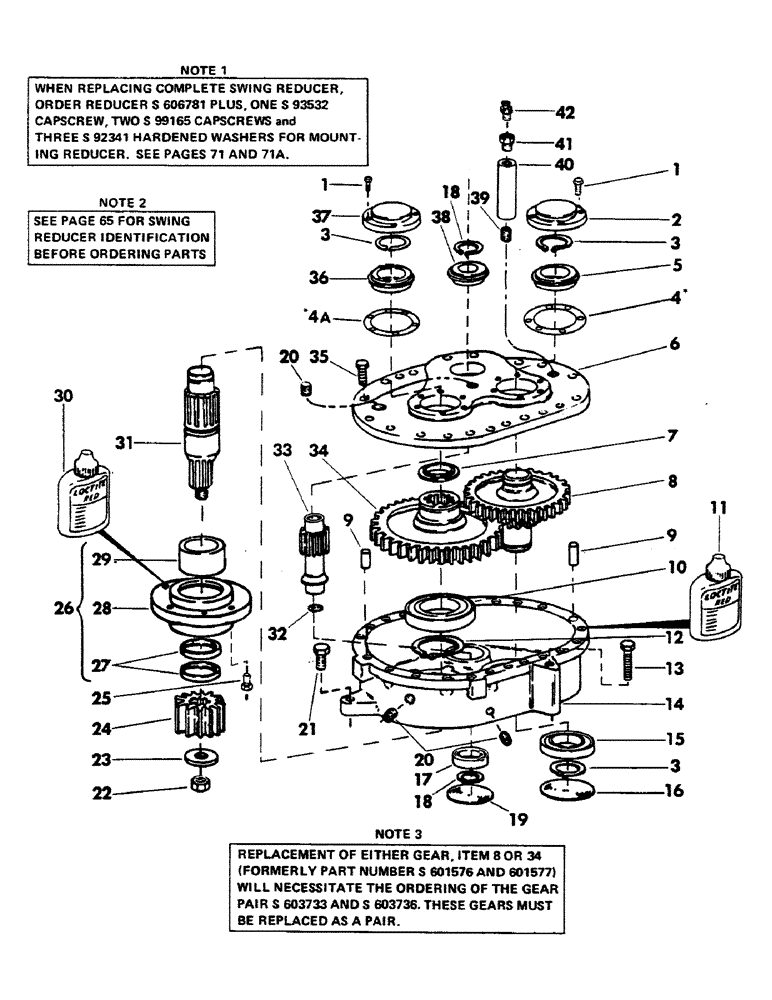

Запчасти Case 40YC (066) - SWING REDUCER, (USED AS ORIGINAL EQUIPMENT) (05) - UPPERSTRUCTURE CHASSIS

REDUCER swing - complete - (See illustration notes 1 and 2)

1шт.

1

S16475

CAPSCREW

CPSW - 5/16" NC x 1" gr 8

12шт.

2

S402194M1

CAP

bearing

1шт.

3

S62721

RING, SNAP

RING, retaining

3шт.

4

S103261

GASKET

1шт.

Change in listing.

1шт.

4a

S85842

GASKET

1шт.

Added listing.

1шт.

5

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING, ball

1шт.

6

S503551

COVER

gear case

1шт.

7

S214014

SPACER

, Serial Range: bearing-gear

1шт.

8

S603733

GEAR

cluster - (See illustration note 3)

1шт.

9

S64319

CALIPER

DOWEL - 3/8" diameter

2шт.

10

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

BEARING, ball

1шт.

11

S96077

SEAL

- 10 CC bottle (Red) - (Substitutes must not be used) (Replaces cover gasket)

1шт.

12

S15409

OIL SEAL

RING, retaining

1шт.

13

S2596

BOLT

CPSW - 7/8" NC x 5-1/2" gr 8 - (Reducer mounting)

2шт.

14

S55373M4

CASE, gear - (Used on units with serial no. 1500 thru 2036)

1шт.

S606331

CASE

gear - (Used on units with serial no. 2037 and after)

1шт.

15

S64316

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

1шт.

16

S64317

PLUG

expansion

1шт.

17

S64313

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

18

S62725

RING

retaining

2шт.

19

S64328

PLUG

expansion

1шт.

20

S7873

PLUG

pipe - 3/8" NPT - (Socket head)

5шт.

21

S2582

CPSW - 7/8" NC x 2" gr 8 - (Reducer mounting)

1шт.

22

S64448

NUT

self locking

1шт.

23

S83676

SPACER

1шт.

24

S502648

PINION

ouput - 10 tooth

1шт.

25

S16906

BOLT

CPSW - 1/2" NC x 1-3/4" gr 8 - (Nylok) - (Special DMC) - (Used on units with serial no. 1500 thru 2036)

6шт.

S2132

BOLT

CPSW - 5/8" NC x 1-3/4" gr 8 - (Used on units with serial no. 2037 and after)

6шт.

26

S59406M1

HOUSING - (Includes items 27 thru 29) - (Used on units with serial no. 1500 thru 2036)

1шт.

IF REPLACING S 608050 WITH S 603774, THE MOUNTING HOLES IN S 603774 MUST BE RE-DRILLED FOR 5/8" DIAMETER BOLTS

1шт.

27

S206136

OIL SEAL

oil

2шт.

28

NSS

NOT SOLD SEPARAT

SUPPORT, reducer

1шт.

29

S72921M1

BUSHING

1шт.

30

S96077

SEAL

- 10 CC bottle (Red) - (Substitutes must not be used) (Replaces reducer support gasket)

1шт.

31

SHAFT, output

1шт.

If replacement of shaft Ref. 31 (formerly P/N S504959) is required, you must order shaft P/N S603734 as illustrated in Figure 69 as Ref. 20. In addition, you must order housing P/N S603774 (Ref. 21) in Figure 69 also.

1шт.

32

S81286

PLUG

expansion

1шт.

33

S37176

PINION

AND SHAFT, input

1шт.

34

S603736

GEAR

drive - (See illustration note 3)

1шт.

35

S73499

BOLT

CPSW - 3/8" NC x 1-1/4" gr 8

23шт.

36

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

37

S214012M1

X

CAP, bearing

1шт.

38

S64312

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, ball

1шт.

39

S7840

NIPPLE, 3/8" NPT x 1" long

1шт.

40

S216625

TUBE,60" L

oil filler and breather

1шт.

41

S7780

BUSHING

REDUCER - 3/8" NPT male x 1/8" NPT female

1шт.

42

S17478

VENT

breather

1шт.
