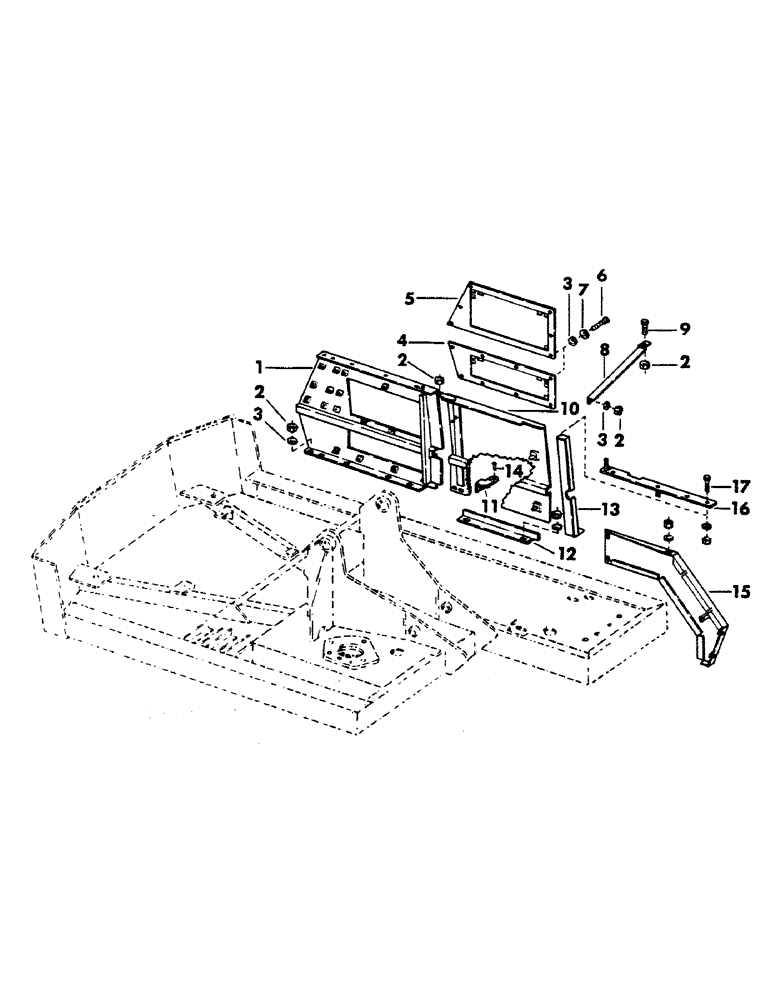

Запчасти Case 40YC (058) - TURNTABLE SHROUDING AND ATTACHING PARTS, (LEFT SIDE) (05) - UPPERSTRUCTURE CHASSIS

1

S602955

SHROUD, side panel - (Left hand)

1шт.

2

231-1447

NUT,7/16"-14, GB

NUT, self locking - 1/2"

1шт.

3

S86132

WASHER

flat - 1/2"

1шт.

4

S505834

GRILLE, bottom side - rear shroud

1шт.

Change in listing.

1шт.

5

S505835

GRILLE, top side - rear shroud

1шт.

Change in listing.

1шт.

6

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" gr 5

1шт.

7

S4399

WASHER

lock - 1/2"

1шт.

8

S219773

BRACE

1шт.

9

S2466

BOLT

CPSW - 1/2" NC x 1/4" gr 5

1шт.

10

S602954

DOOR, left side

1шт.

11

S507513

BRACKET

1шт.

12

S220568

ANGLE

1шт.

13

S220514

BRACE, door stop

1шт.

14

S217887

PIN

retaining

1шт.

15

S602549

SHROUD, door mounting - front

1шт.

16

S220521

BRACE

1шт.

17

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.
