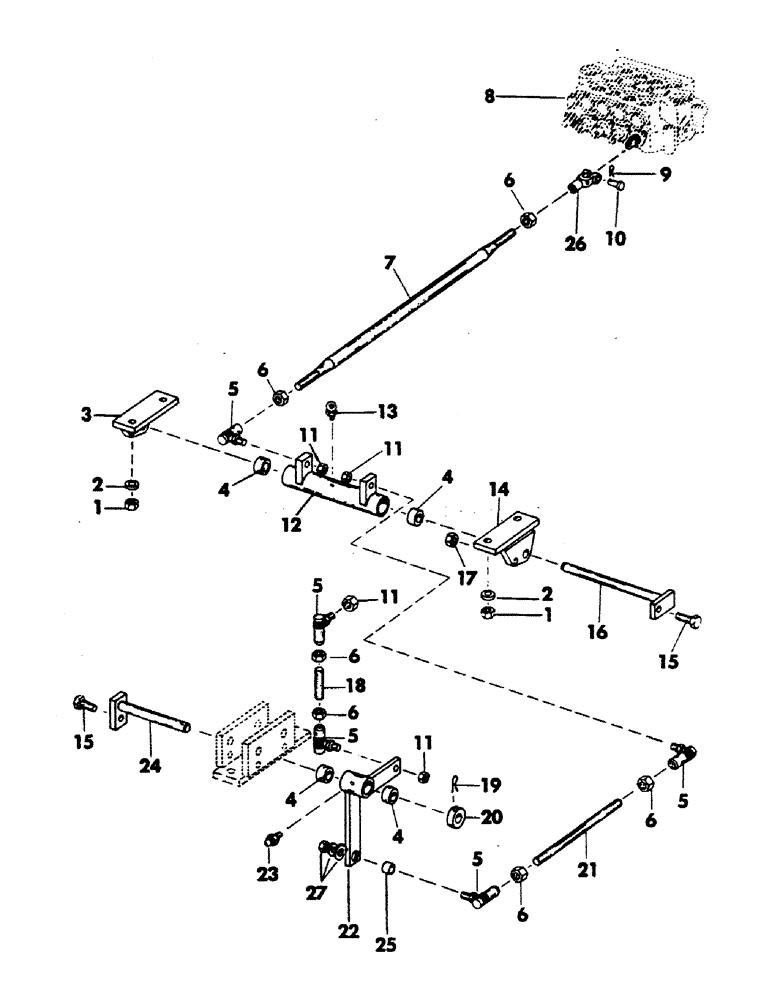

Запчасти Case 40YC (056) - UTILITY CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

2

S7397

WASHER

flat - 1/2"

4шт.

3

S218944

BRACKET

4шт.

4

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

4шт.

5

S215594

BALL

JOINT, ball

5шт.

6

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NC

6шт.

7

S219275

ROD

connecting

1шт.

8

VALVE, 4-spool main control - (For breakdown, see Figure151)

1шт.

9

S4640

PIN, cotter - 5/32" x 1" long

1шт.

10

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

11

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

4шт.

12

S220208

BELLCRANK

1шт.

13

S46960

FITTING

grease - 1/4" NPT - (Straight)

1шт.

14

S218943

BRACKET

1шт.

15

S2352

BOLT

CPSW - 1/4" NC x 1-1/4" gr 5

2шт.

16

S218963

SHAFT

1шт.

17

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

18

S87534

ROD

connecting

1шт.

19

S4658

SPLIT PIN

PIN, cotter - 3/16" x 1-1/2" long

1шт.

20

S88670

SPACER

1шт.

21

S91682

ROD, connecting

1шт.

22

S216744

BELLCRANK

1шт.

23

S46960

FITTING

grease - 1/4" NPT - (Straight)

1шт.

24

S219056

SHAFT

1шт.

25

S40815

BEARING, NEEDLE,0.375" ID x 0.5630" OD x 0.312"

1шт.

26

S12514

YOKE

1шт.

27

S17103

NUT

self locking - 3/8" NF

1шт.

S7387

WASHER

flat - 3/8"

2шт.
