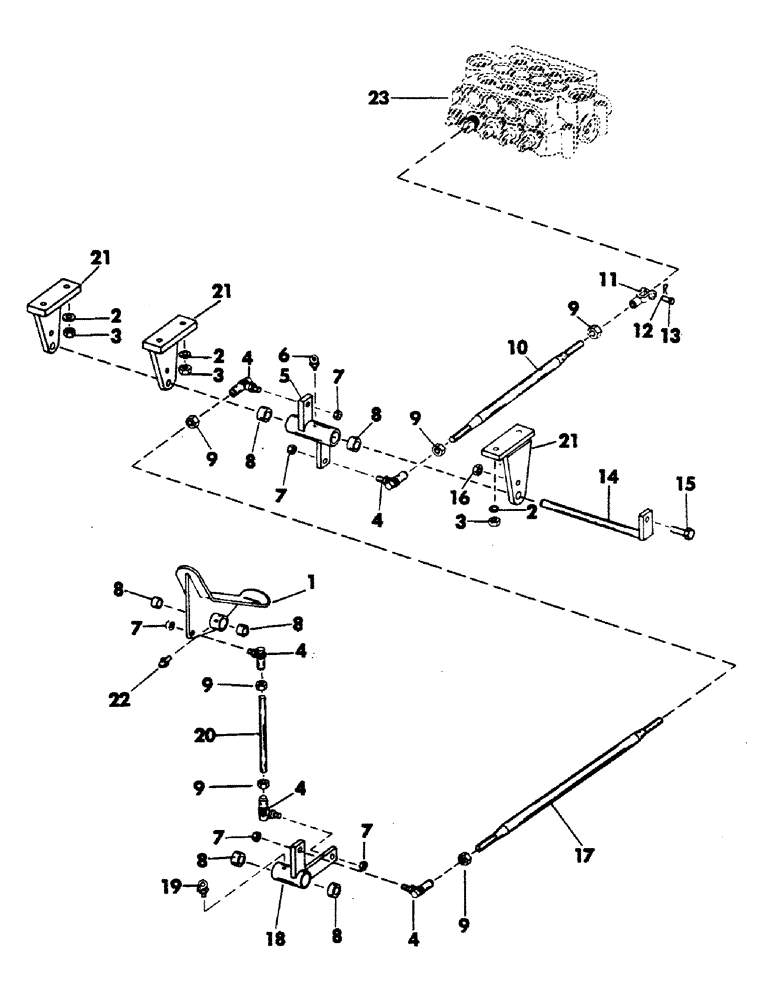

Запчасти Case 40YC (054) - TOOL PEDAL CONTROL AND LINKAGE (05) - UPPERSTRUCTURE CHASSIS

1

S504577

PEDAL, tool control

1шт.

2

S7397

WASHER

flat - 1/2"

6шт.

3

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

6шт.

4

S215594

BALL

JOINT, ball

5шт.

5

S220210

BELLCRANK

1шт.

6

S49793

FITTING

grease - 1/4" NPT x 65 degrees

6шт.

7

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

5шт.

8

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

6шт.

9

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

6шт.

10

S219273

ROD

connecting

1шт.

11

S12514

YOKE

1шт.

12

S4640

PIN, cotter - 5/32" x 3/4" long

1шт.

13

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

14

S218966

SHAFT

1шт.

15

S2352

BOLT

CPSW - 1/4" NC x 1-1/4" gr 5

1шт.

16

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

17

S219278

ROD

connecting

1шт.

18

S220211

ARM ASSY.

BELLCRANK - (Includes item 19)

1шт.

19

S46960

FITTING

grease - 1/4" NPT - (Straight)

1шт.

20

S91681

ROD

connecting

1шт.

21

S218939

BRACKET

3шт.

22

S46960

FITTING

grease - 1/4" NPT - (Straight)

1шт.

23

VALVE, 4-spool main control - (For breakdown, see Figure 149)

1шт.
