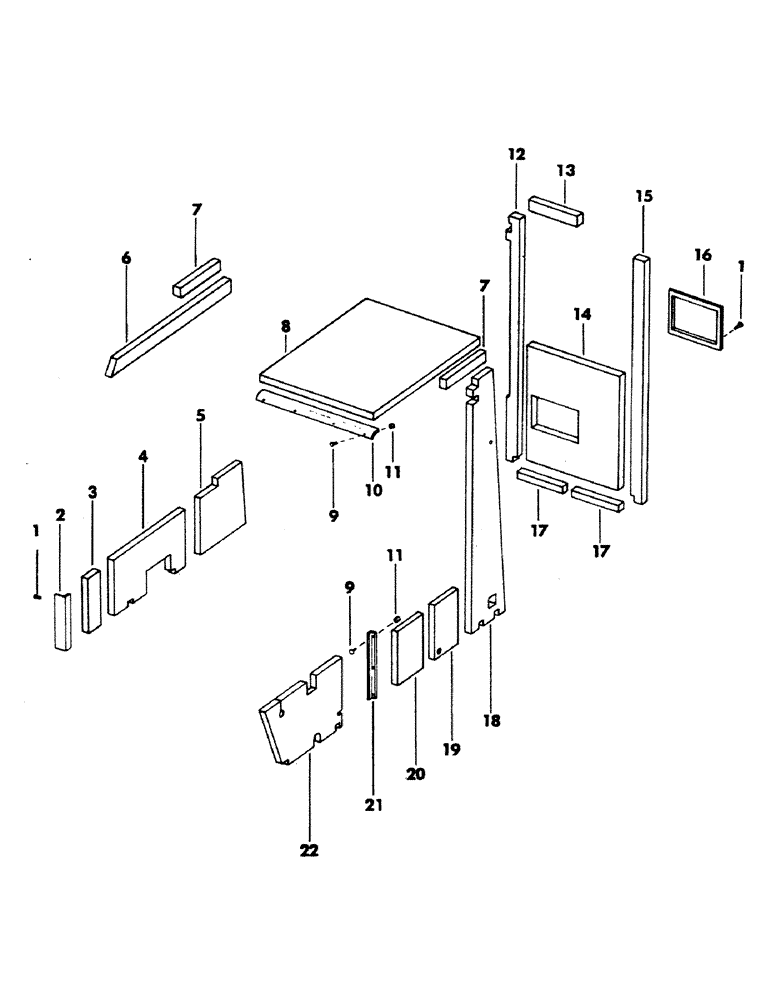

Запчасти Case 40YC (046) - STANDARD CAB INSULATION (05) - UPPERSTRUCTURE CHASSIS

1

S14468

SCREW - No. 10 NC x 3/8"

7шт.

2

S222614

CHANNEL

1шт.

3

S95515

INSULATION

1шт.

4

S222610

INSULATION

1шт.

5

S95512

INSULATION

1шт.

6

S95506

INSULATOR

INSULATION

1шт.

7

S95507

INSULATOR

INSULATION

2шт.

8

S95511

INSULATION

1шт.

9

S14469

SCREW - No. 10 NF x 3/8"

7шт.

10

S222613

ANGLE

1шт.

11

S95516

NUT

lock - No. 10 NF

7шт.

12

S222611

INSULATION

1шт.

13

S95513

INSULATOR

INSULATION

1шт.

14

S95501

INSULATOR

INSULATION

1шт.

15

S95514

INSULATOR

INSULATION

1шт.

16

S507325

FRAME

1шт.

17

S95505

INSULATOR

INSULATION

2шт.

18

S222612

INSULATOR

INSULATION

1шт.

19

S95509

INSULATOR

INSULATION

1шт.

20

S95508

INSULATOR

INSULATION

1шт.

21

S222603

ANGLE

1шт.

22

S222609

INSULATION

1шт.

23

S95517

ADHESIVE

- (For insulation installation) - (Not illustrated)

1шт.
