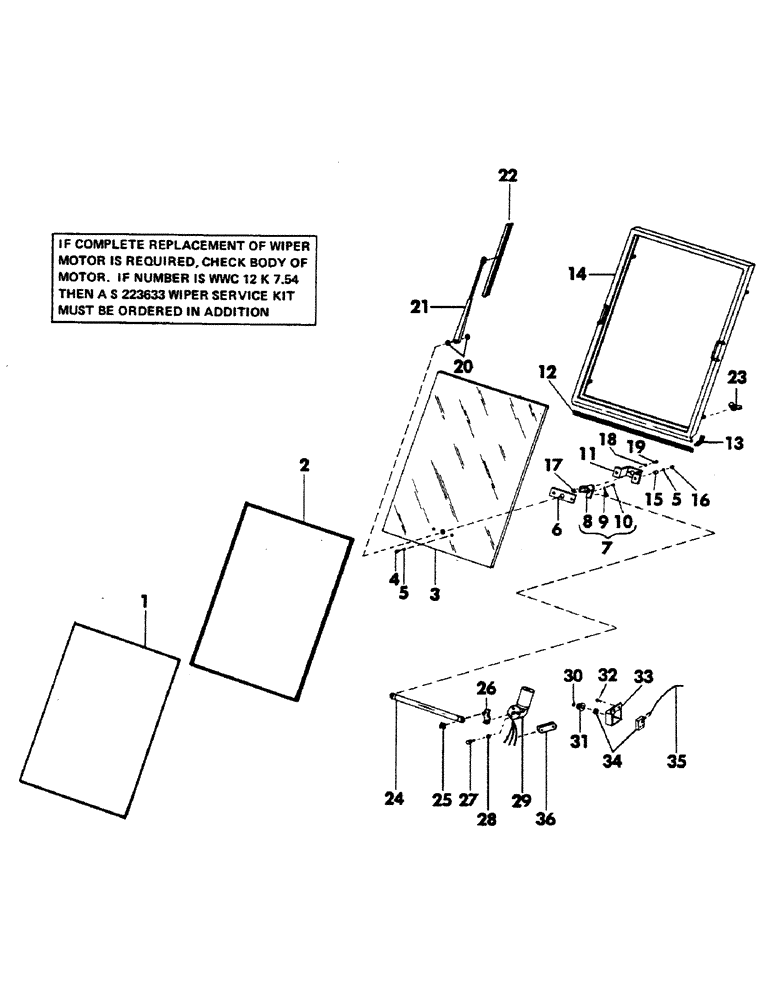

Запчасти Case 40YC (041) - STANDARD CAB UPPER FRONT WINDOW AND ATTACHING PARTS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
S221460
WINDOW
ASSEMBLY, upper front - (Includes items 1 thru 19)
1шт.
1
S75830
SEAL
STRIP, filler - (Bulk) - 158" long
1шт.
2
S75829
SEAL
SETTING MATERIAL, glass - (Bulk) - 158" long
1шт.
3
S89971
SHIELD
GLASS - (Tempered)
1шт.
4
S90069
SCREW
pan head - No. 10 NC x 1"
2шт.
5
S90070
WASHER, flat - No. 10 NC
4шт.
6
S218046
GASKET
1шт.
7
S218045
ARM ASSY.
PIVOT ARM ASSEMBLY - (Includes items 8 thru 10)
1шт.
8
S90074
ARM ASSY.
ARM, pivot
1шт.
9
S90073
CHAIN
1шт.
10
S90075
SCREW
binding head - no. 8 x 5/16"
1шт.
11
S94305
BRACKET
pivot arm
1шт.
12
S75838
SEAL
weather - (Bulk) - 32.4" long
1шт.
13
S67064
SEAL
2шт.
14
S94304
FUNNEL
FRAME, window
1шт.
15
S90068
BUSHING
2шт.
16
S90072
NUT
lock - no. 10 NC
2шт.
17
S17262
NUT
- no. 8 NF
2шт.
18
S7339
WASHER, internal tooth lock - no. 8
2шт.
19
S90071
SCREW
pan head - no. 8 NF x 5/8"
2шт.
20
S90044
WASHER
flat
2шт.
21
S217996
ARM
wiper
1шт.
22
S90047
HALF BLADE
BLADE, wiper
1шт.
23
S90039
NUT
wing - 3/8" NC
4шт.
24
S90046
PITMAN
LINK, arm
1шт.
25
S90045
CLIP
- (Fits in drive arm)
1шт.
26
S89993
ARM
drive
1шт.
27
S7500
CPSW - 1/4" NC x 5/8" gr 5
3шт.
28
S4395
WASHER, LOCK
- 1/4"
3шт.
29
S90043
MOTOR
wiper - (For wiring of motor, see item 9 on Figure 156)
1шт.
30
S90057
DECAL
1шт.
31
A41647
KNOB
wiper switch
1шт.
32
S90056
SCREW
- 1/4" NC x 1/2"
2шт.
33
S90076
BRACKET
wiper switch - (Used with WWC 12 K 7.54 motor)
1шт.
S96777
BRACKET
wiper switch - (Used with WWC 12 L 7.54 motor, Drott No. S96755)
1шт.
34
S88046
SWITCH
wiper - (Includes nut) - (Used with WWC 12 K 7.54 motor)
1шт.
S96776
SWITCH
wiper - (Includes nut) - (Used with WWC 12 L 7.54 motor, Drott No. S96755)
1шт.
S96788
NUT, jam
1шт.
35
S90088
WIRE ASSEMBLY
1шт.
36
S90066
CLIP
wiper wires
2шт.
37
S223633
MOTOR
KIT, wiper service - (Consists of items 33 and 34)
1шт.
Выбрано товаров: 41
