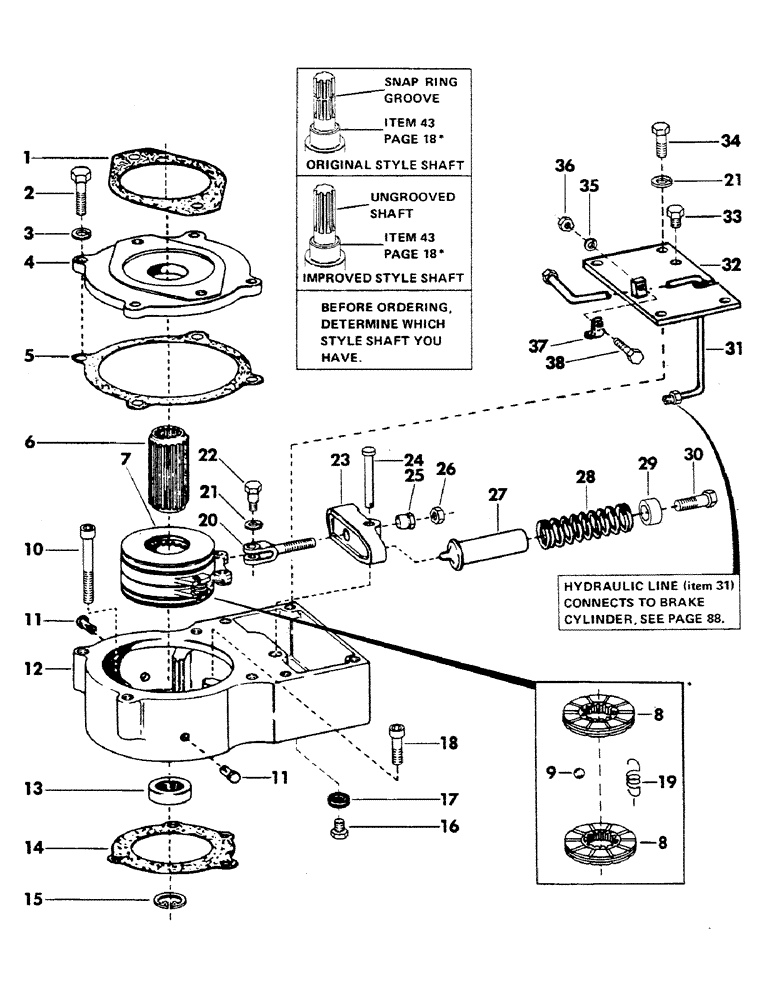

Запчасти Case 40YC (086) - TRACK BRAKE (04) - UNDERCARRIAGE

S606006

BRAKE LINE

BRAKE, track drive - complete - (Consists of items 1 thru 38) (Right and left hand) - (Supersedes S57641M1)

2шт.

1

S203387

GASKET

mounting flange, quantites listed are for one complete track brake

1шт.

2

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5, quantites listed are for one complete track brake

4шт.

3

S4399

WASHER

lock - 1/2", quantites listed are for one complete track brake

4шт.

4

S38006

COVER

AND MOUNTING FLANGE, quantites listed are for one complete track brake

1шт.

5

S203386

GASKET

cover, quantites listed are for one complete track brake

1шт.

6

S224667

COUPLING, BREAK AWAY

COUPLING, splined - (Improved style with internal snap ring groove), quantites listed are for one complete track brake

1шт.

S208430

COUPLING

splined - (Original style without snap ring groove replaced by Kit, item 39) - (See note), quantites listed are for one complete track brake

1шт.

7

207618M1

BRAKE ASSEMBLY - (Includes item 8, 9 and 19), quantites listed are for one complete track brake

1шт.

Change in listing.

1шт.

8

S81615M1

DISC, brake, quantites listed are for one complete track

2шт.

9

S68703

BALL

- (Between the two item 8's), quantites listed are for one complete track brake

1шт.

10

S12276

CAPSCREW

CPSW, self locking - 1/2" NC x 3" gr 8, quantites listed are for one complete track brake

1шт.

11

S79912

RIVET

for drain hole in housing, quantites listed are for one complete track brake

1шт.

12

S57642

HOUSING

brake - (Right and left hand), quantites listed are for one complete track

1шт.

13

S65001

OIL SEAL

oil, quantites listed are for one complete track brake

1шт.

14

S80305

GASKET

brake housing, quantites listed are for one complete track

1шт.

15

S74048

RING, SNAP

RING, retaining - (For improved style coupling item 6), quantites listed are for one complete track brake

1шт.

S60206

RING, SNAP

RING, retaining - (For original style shaft) - (Replaced by Kit, item 39) - (See note), quantites listed are for one complete track brake

1шт.

16

S2399

BOLT

CPSW - 3/8" NC x 1/2" gr 5, quantites listed are for one complete track brake

1шт.

17

S75334

GROMMET,5/16" ID x 3/4" Groove Dia

rubber, quantites listed are for one complete track brake

1шт.

18

S89476

CPSW, nylok - gr 8, quantites listed are for one complete track brake

1шт.

19

S68705

SPRING

quantites listed are for one complete track brake

1шт.

20

S65002

FORK

YOKE, plain, quantites listed are for one complete track brake

1шт.

21

S4397

WASHER

lock - 3/8", quantites listed are for one complete track brake

5шт.

22

S66646

BOLT,5/16" x 3/4"

shoulder, quantites listed are for one complete track brake

1шт.

23

S203385

LEVER

quantites listed are for one complete track brake

1шт.

24

S61970

PIN

clevis - 1/2" x 2.516" grip length, quantites listed are for one complete track brake

1шт.

25

S64911

NUT

ball - seat, quantites listed are for one complete track brake

1шт.

26

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF, quantites listed are for one complete track brake

1шт.

27

S209803

STOP

spring, quantites listed are for one complete track brake

1шт.

28

S210158

SPRING

quantites listed are for one complete track brake

1шт.

29

S80879

SPACER

quantites listed are for one complete track brake

1шт.

30

S2351

BOLT

CPSW - 1/4" NC x 1" gr 5, quantites listed are for one complete track brake

1шт.

31

S210281

LINE

hydraulic - (Includes grommet), quantites listed are for one complete track brake

1шт.

32

S210312

COVER

quantites listed are for one complete track brake

1шт.

33

S65007

PLUG

- 5/8" SAE, quantites listed are for one complete track brake

1шт.

34

S2400

MUFFLER

CPSW - 3/8" NC x 3/4" gr 5, quantites listed are for one complete track brake

4шт.

35

S4395

WASHER, LOCK

- 1/4", quantites listed are for one complete track brake

1шт.

36

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4" NC, quantites listed are for one complete track brake

1шт.

37

S75868

CLAMP

quantites listed are for one complete track brake

1шт.

38

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" gr 5, quantites listed are for one complete track brake

1шт.

39

S607927

SHAFT

KIT, shaft - (Includes shaft S508255, splined coupling S224667, and snap ring S74048) - (Supersedes S34044), quantites listed are for one complete track brake

1шт.
