Запчасти Case 40YC (084) - TRACK-BRAKE VALVE AND CONTROL LINKAGE (04) - UNDERCARRIAGE

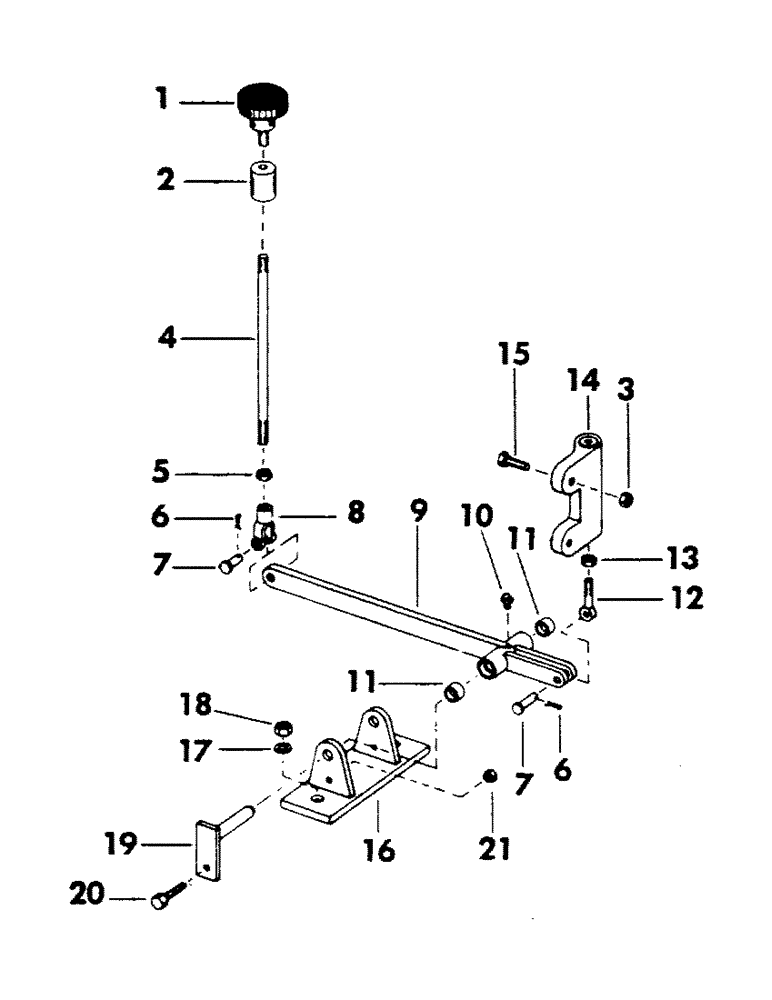

Схема запчастей Case 40YC - (084) - TRACK-BRAKE VALVE AND CONTROL LINKAGE (04) - UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

S62125

KNOB

1шт.

2

S93329

COUPLING

1шт.

3

231-1445

NUT,5/16"-18, GB

NUT, self locking - 5/16" NC

2шт.

4

S93328

ROD

1шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

1шт.

6

S4626

PIN, cotter - 1/8" x 3/4" long

2шт.

7

S10739

CLEVIS PIN

PIN, clevis - 5/16" x .953" grip length

2шт.

8

S85426

YOKE

1шт.

9

S220300

BELLCRANK

1шт.

10

S49270

FITTING

grease - 1/8" NPT - (Straight)

1шт.

11

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

2шт.

12

S90657

BOLT, eye

1шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

jam - 3/8" NC

1шт.

14

VALVE, track brake - (For breakdown, see Figure 085)

1шт.

15

S2382

BOLT

CPSW - 5/16" NC x 2-1/2" gr 5

2шт.

16

S220309

BRACKET

1шт.

17

S7392

WASHER

flat - 1/2"

2шт.

18

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

19

S218962

SHAFT ASSY.

SHAFT

1шт.

20

S2351

BOLT

CPSW - 1/4" NC x 1" gr 5

1шт.

21

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

Выбрано товаров: 21
