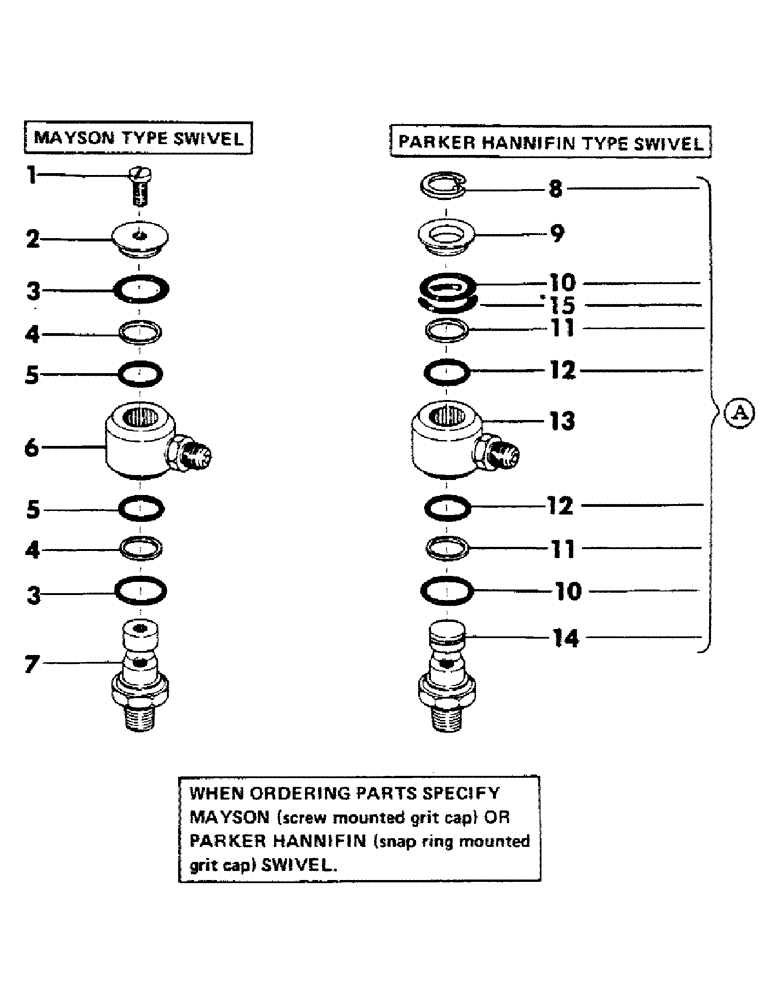

Запчасти Case 40YC (083) - TRACK SERVICE BRAKE SWIVEL (04) - UNDERCARRIAGE

S209351

FITTING

SWIVEL, track brake (Mayson) - complete - (Consists of items 1 thru 7)

1шт.

1

S63916

SCREW

Fillister head - No. 10 NC x 3/8"

1шт.

2

S7989

CAP

grit

1шт.

3

S5709

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - .737" ID x .937" OD

2шт.

4

S80212

WASHER

RING, backup

2шт.

5

S6478

SEAL

"O" RING - .612" ID x .812" OD

2шт.

6

S80213

SLEEVE

1шт.

7

S79933

LINK

STEM

1шт.

S209351

FITTING

SWIVEL, track brake - (Parker Hannifin) - complete - (Consists of items 8 thru 14)

1шт.

8

RING, snap

1шт.

Part of Parker Hannifin Type Swivel

1шт.

9

NSS

NOT SOLD SEPARAT

CAP, grit

1шт.

10

"O" RING

2шт.

Part of Parker Hannifin Type Swivel

1шт.

11

RING, backup

2шт.

Part of Parker Hannifin Type Swivel

1шт.

12

"O" RING

2шт.

Part of Parker Hannifin Type Swivel

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

14

NSS

NOT SOLD SEPARAT

STEM

1шт.

Change in listing.

1шт.

15

"O" RING

1шт.

Added listing.

1шт.

Part of Parker Hannifin Type Swivel

1шт.

S95177

KIT

service - (Consists of items 8, 10, 11, 12 and 15)

1шт.

Part of Parker Hannifin Type Swivel

1шт.
