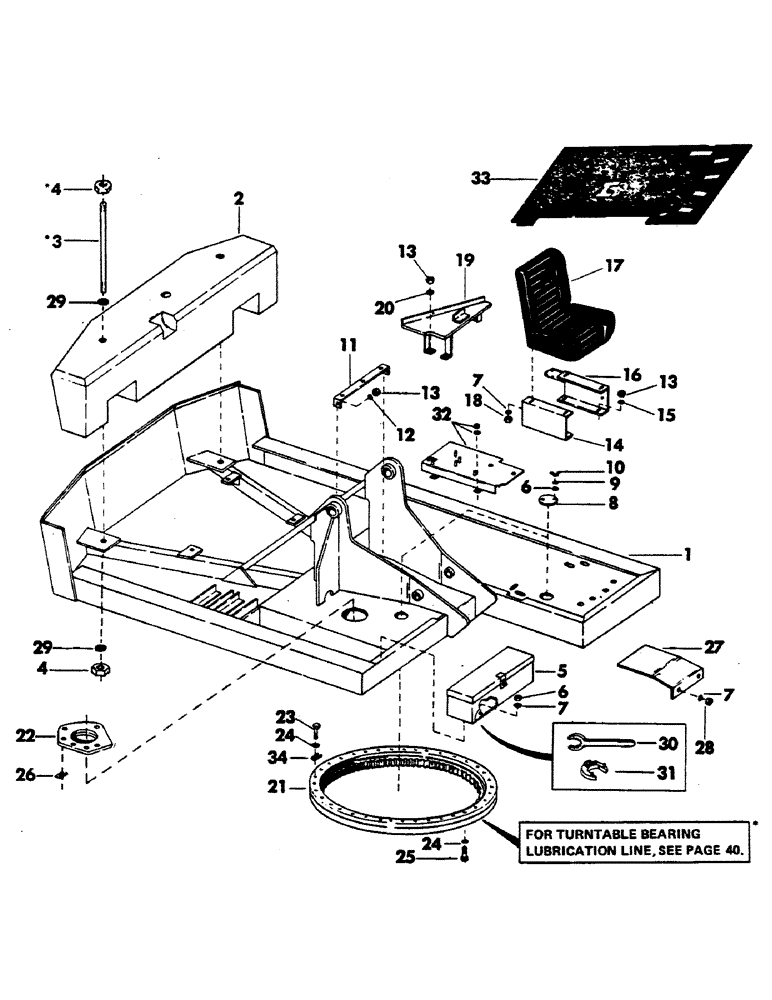

Запчасти Case 40YC (038) - TURNTABLE, COUNTERWEIGHT, BEARING AND ATTACHING PARTS (04) - UNDERCARRIAGE

1

S604782

TURNTABLE, machined - (Used on units with serial no. 1500 thru 2003) - (Supersedes S952902)

1шт.

1

S606626

TURNTABLE, machined - (Used on units with serial no. 2004 and after)

1шт.

2

S603034

COUNTERWEIGHT

1шт.

3

S228705

STUD

2шт.

Change in listing.

1шт.

4

S17093

LOCK NUT

NUT - 1-1/4" NC

4шт.

Change in listing.

1шт.

5

S219842

BOX, TOOL

TOOL BOX - (Optional)

1шт.

6

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

7

S7385

INSTRUCTION

WASHER, flat - 3/8"

14шт.

8

S76664

COVER

- (Bearing access and cleaning hole)

2шт.

9

S4397

WASHER

lock - 3/8"

4шт.

10

S77941

NUT, wing - 3/8" NC

4шт.

11

S68667

BRACKET, hydraulic clamp mounting

1шт.

12

S86132

WASHER

flat - 1/2"

2шт.

13

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

9шт.

14

S219432

CHANNEL, seat mounting - (Right hand)

1шт.

15

S7397

WASHER

flat - 1/2"

1шт.

16

S506117

CHANNEL, seat mounting - (Left hand)

1шт.

17

S220432

NO LONGER SERVICED

SEAT, operators

1шт.

18

S9088

NUT

self locking - 5/16" NC

4шт.

19

S506187

GUIDE, window storage

1шт.

20

S7395

WASHER

flat - 1/2"

3шт.

21

S508668

SLEWING RING

BEARING, turntable - (Supersedes S212362)

1шт.

Change in listing.

1шт.

22

S506965M1

X

PLATE, swing reducer mounting

1шт.

23

S86503

BOLT

CPSW - 5/8" NC x 2-1/4" - (Special D.M.C. cpsw - use item 24 also)

36шт.

Change in listing.

1шт.

24

S92353

WASHER

hardened - 5/8"

72шт.

Change in listing.

1шт.

25

S84906

BOLT

CPSW - 5/8" NC x 2" - (Special D.M.C. cpsw - use items 24 also)

36шт.

26

S77916

SHIM,.005" Thk

Reducer plate to turntable .005" Thk

1шт.

26

S77917

SHIM,.010" Thk

Reducer plate to turntable .010" Thk

1шт.

26

S77918

SHIM,.015" Thk

Reducer plate to turntable .015" Thk

1шт.

26

S77919

SHIM,.030" Thk

Reducer plate to turntable .030" Thk

1шт.

26

S77920

SHIM,.060" Thk

Reducer plate to turntable .060" Thk

1шт.

26

S84889

SHIM,.003" Thk

Reducer plate to turntable .003" Thk

1шт.

26

S84890

SHIM,.007" Thk

Reducer plate to turntable .007" Thk

1шт.

27

S210964

COVER

turntable bearing bolts

1шт.

28

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

29

S94627

WASHER, flat - 1-3/8"

4шт.

30

S206800

OPEN END WRENCH

WRENCH, tube - 1-1/2"

1шт.

31

G33236

OPEN END WRENCH

WRENCH, spanner

1шт.

32

S505720

PLATE

1шт.

S7397

WASHER

flat - 1/2"

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

33

S603731

MAT, floor

1шт.

34

S77916

SHIM,.005" Thk

Bearing to turntable, Listed are used on some earlier units with turntable S952902 only .005" Thk

1шт.

S77917

SHIM,.010" Thk

Bearing to turntable, listed are used on some earlier units with turntable S952902 only .010" Thk

1шт.

S77918

SHIM,.015" Thk

Bearing to turntable, Listed are used on some earlier units with turntable S952902 only .015" Thk

1шт.

S77919

SHIM,.030" Thk

Bearing to turntable, Lsted are used on some earlier units with turntable S952902 only .030" Thk

1шт.

S77920

SHIM,.060" Thk

Bearing to turntable, Listed are used on some earlier units with turntable S952902 only .060" Thk

1шт.

S84889

SHIM,.003" Thk

Bearing to turntable, Listed are used on some earlier units with turntable S952902 only .003" Thk

1шт.

S84890

SHIM,.007" Thk

Bearing to turntable, Listed are used on some earlier units with turntable S952902 only .007" Thk

1шт.
