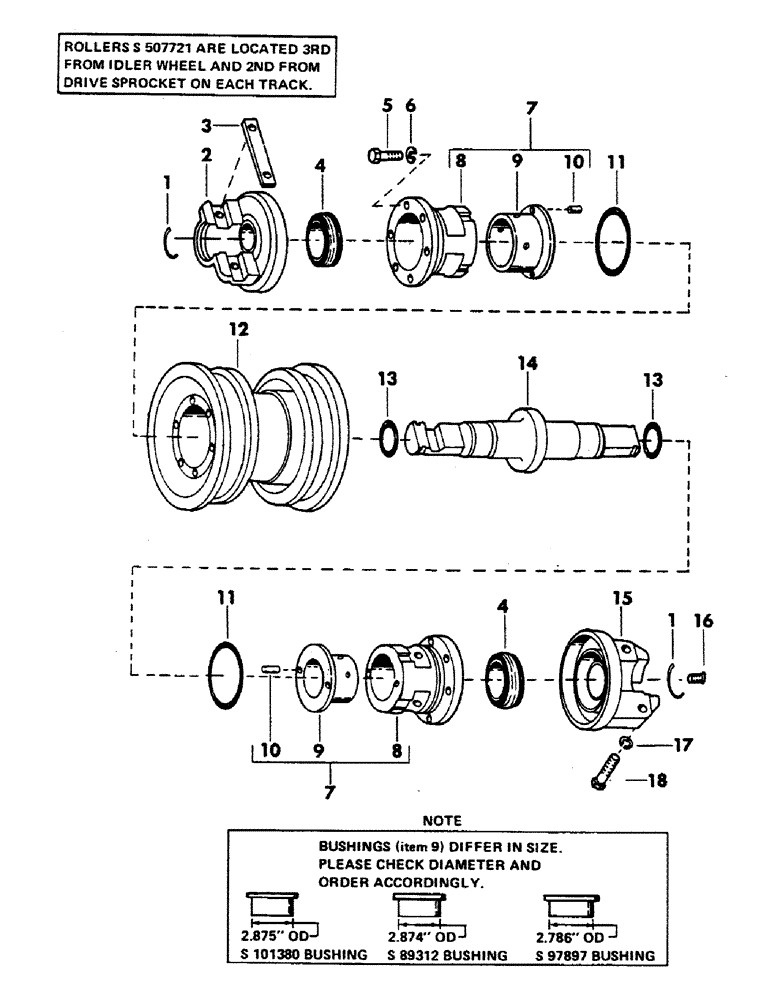

Запчасти Case 40YC (014) - DOUBLE FLANGE TRACK ROLLER, (USED ON UNITS WITH SERIAL NUMBER 1832 AND AFTER) (04) - UNDERCARRIAGE

S507721

ROLLER

Double flange track, complete, Consists of Refs. 1 thru 18, The total quantity of rollers required per machine is 20. On units with serial number listed above a machine requires 16 rollers of S505093 as illustrated on Fig. 18 and 4 rollers of S507721 list

4шт.

1

S89317

RING, LOCKING

RING, snap - (Shaft to collars), quantities listed are for one complete track roller

2шт.

2

S89309

COLLAR

inner, quantities listed are for one complete track roller

1шт.

3

S89310

LOCK

quantities listed are for one complete track roller

1шт.

4

S95098

SEAL

GROUP, quantities listed are for one complete track roller

2шт.

5

S87457

CAPSCREW

CPSW - 3/8" NC x1-1/8" gr 5, quantities listed are for one complete track roller

12шт.

6

S4397

WASHER

lock - 3/8", quantities listed are for one complete track roller

12шт.

7

S89315

BUSHING

ASSEMBLY - (Includes items 8 thru 10), quantities listed are for one complete track roller

2шт.

8

NSS

NOT SOLD SEPARAT

BUSHING, outer - (Cast iron) - (Order item 7), quantities listed are for one complete track roller

1шт.

9

S97897

BUSHING

inner - (Bronze) - 2.786" OD - (See note on illustration), quantities listed are for one complete track roller

1шт.

S89312

BUSHING

inner - (Bronze) - 2.874" OD - (See note on illustration), quantities listed are for one complete track roller

1шт.

S101380

BUSHING, inner - (Bronze) - 2.875" OD - (See note on illustration), quantities listed are for one complete track roller

1шт.

10

S89318

PIN

quantities listed are for one complete track roller

2шт.

11

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL, quantities listed are for one complete track roller

2шт.

12

S97793

RIM

quantities listed are for one complete track roller

1шт.

13

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O"RING - 1.859" ID 2.125" OD - (Collar to shaft), quantities listed are for one complete track roller

2шт.

14

S89376

SHAFT

quantities listed are for one complete track roller

1шт.

15

S89314

COLLAR

outer, quantities listed are for one complete track roller

1шт.

16

S87854

PLUG

pipe - 3/4" - 16 male, quantities listed are for one complete track roller

1шт.

17

S97895

WASHER, quantities listed are for one complete track roller

4шт.

18

S97894

CAPSCREW

CPSW, quantities listed are for one complete track roller

4шт.
