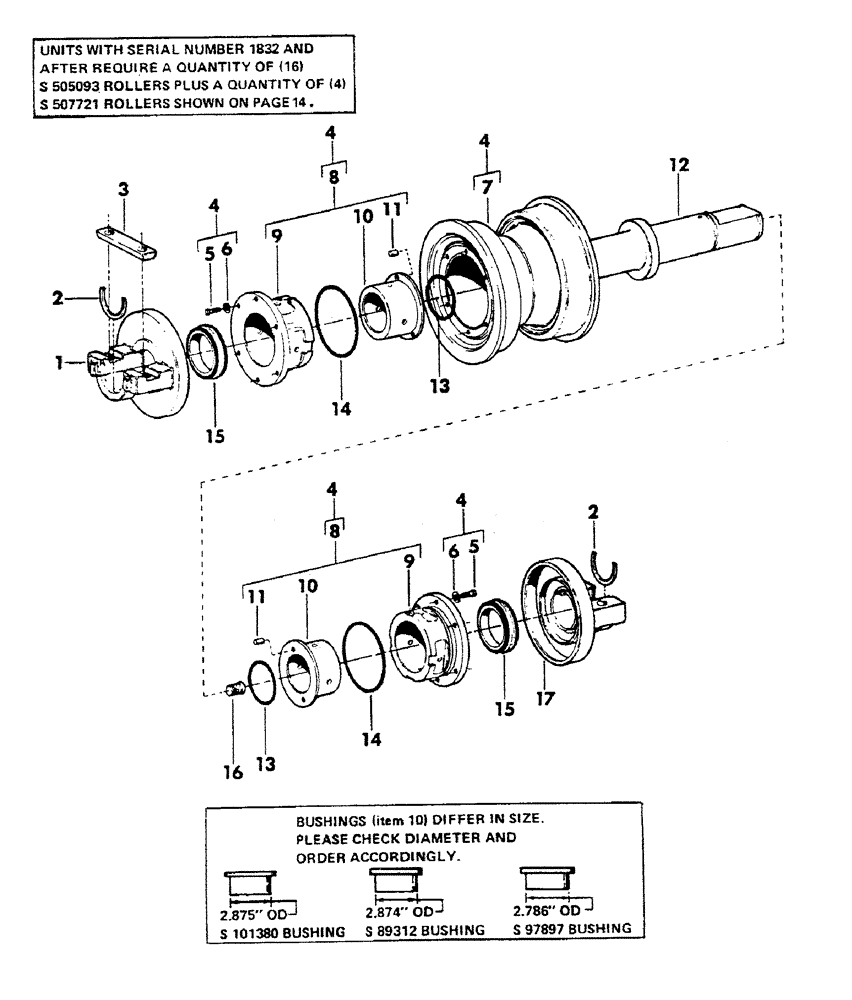

Запчасти Case 40YC (012) - SINGLE FLANGE TRACK ROLLER (04) - UNDERCARRIAGE

S505093

ROLLER

single flange track - complete (Consists of items 1 thru 17) - (Used on units with serial number 1500 thru 1831)

20шт.

S505093

ROLLER

single flange track - complete (Consists of items 1 thru 17) - (Used on units with serial number 1832 and after)

16шт.

1

S89309

COLLAR

inner, quantities listed are for one complete track roller

1шт.

2

S89317

RING, LOCKING

RING, snap - (Shaft to collars), quantities listed are for one complete track roller

2шт.

3

S89310

LOCK

quantities listed are for one complete track roller

1шт.

4

S89306

ROLLER

ASSEMBLY - (Includes items 5 thru 11), quantities listed are for one complete track roller

1шт.

5

S87457

CAPSCREW

CPSW - 3/8" NC x 1-1/8" gr 5, quantities listed are for one complete track roller

12шт.

6

S4397

WASHER

lock - 3/8", quantities listed are for one complete track roller

12шт.

7

S89307

RIM

quantities listed are for one complete track roller

1шт.

8

S89315

BUSHING

ASSEMBLY - (Includes items 9 thru 11), quantities listed are for one complete track roller

2шт.

9

NSS

NOT SOLD SEPARAT

BUSHING, outer - (Cast iron) - (Order item 8), quantities listed are for one complete track roller

1шт.

10

S97897

BUSHING

inner - (Bronze) - 2.786" OD - (See note on illustration), quantities listed are for one complete track roller

1шт.

S89312

BUSHING

inner - (Bronze) - 2.874" OD - (See note on illustration), quantities listed are for one complete track roller

1шт.

S101380

BUSHING, inner - (Bronze) - 2.875" OD - (See note on illustration), quantities listed are for one complete track roller

1шт.

11

S89318

PIN

quantities listed are for one complete track roller

2шт.

12

S89316

SHAFT

quantities listed are for one complete track roller

1шт.

13

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1.859" ID x 2.125" OD - (Collar to shaft), quantities listed are for one complete track roller

2шт.

14

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD - (Bushing seal), quantities listed are for one complete track roller

2шт.

15

S95098

SEAL

GROUP, quantities listed are for one complete track roller

2шт.

16

S87854

PLUG

pipe - 3/4" - 16 male, quantities listed are for one complete track roller

1шт.

17

S89314

COLLAR

outer, quantities listed are for one complete track roller

1шт.

FOOTNOTE

1шт.

NOTE: COMMENT IN BOX AT TOP OF ILLUSTRATION SHOULD READ, "UNITS WITH SERIAL NUMBER 1832 AND AFTER REQUIRE A QUANTITY OF (16) S 509093 ROLLERS PLUS A QUANTITY OF (4) S 507721 ROLLERS SHOWN ON PAGE 14".

1шт.
