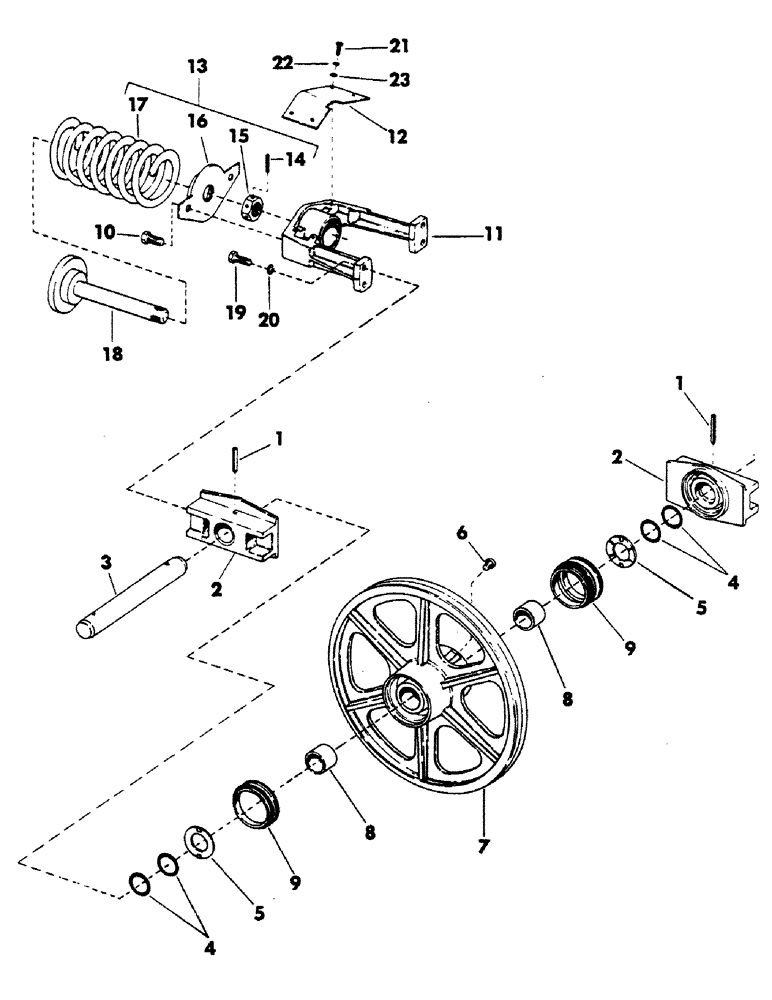

Запчасти Case 40YC (010) - IDLER WHEEL AND TRACK ADJUSTER (04) - UNDERCARRIAGE

S504106

FRONT IDLER

WHEEL, idler - complete (Consists of items 1 thru 9)

1шт.

1

S5526

ROLL PIN

PIN, roll - 33/64" x 3 long, quantities listed are for one complete wheel

2шт.

2

S600594

BLOCK

guide, quantities listed are for one complete wheel

2шт.

3

S78699

SHAFT

idler, quantities listed are for one complete wheel

1шт.

4

S6318

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD, quantities listed are for one complete wheel

4шт.

5

S78702

WASHER

quantities listed are for one complete wheel

2шт.

6

S8993

PLUG

pipe - 1/8" NPT, quantities listed are for one complete wheel

2шт.

7

S952422

FRONT IDLER

WHEEL, idler, quantities listed are for one complete wheel

1шт.

Change in listing.

1шт.

8

S78703

BUSHING

quantities listed are for one complete wheel

2шт.

9

S209139

SEAL

SET, quantities listed are for one complete wheel

2шт.

10

S2503

BOLT (MACHINE)

CPSW - 5/8" NC x 1-3/4" gr 5, quantities listed are for one track adjuster less

2шт.

11

S600551

YOKE

idler, quantities listed are for one track adjuster less

1шт.

12

S504059

COVER

yoke, quantities listed are for one track adjuster less

1шт.

13

S504108

SPRING

ASSEMBLY, track tension - (Includes items 14 thru 18), quantities listed are for one track adjuster less

1шт.

14

S5438

PIN, ROLL

- 1/4" x 1-7/8" long, quantities listed are for one track adjuster less

1шт.

15

S87010

NUT

- (Special), quantities listed are for one track adjuster less

1шт.

16

S215128

LARGE PLATE

PLATE, end, quantities listed are for one track adjuster less

1шт.

17

S215129

SPRING

quantities listed are for one track adjuster less

1шт.

18

S215127

GUIDE

quantities listed are for one track adjuster less

1шт.

19

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5 - (Yoke to guide block), quantities listed are for one track adjuster less

4шт.

20

S4399

WASHER

lock - 1/2", quantities listed are for one track adjuster less

4шт.

21

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5, quantities listed are for one track adjuster less

2шт.
