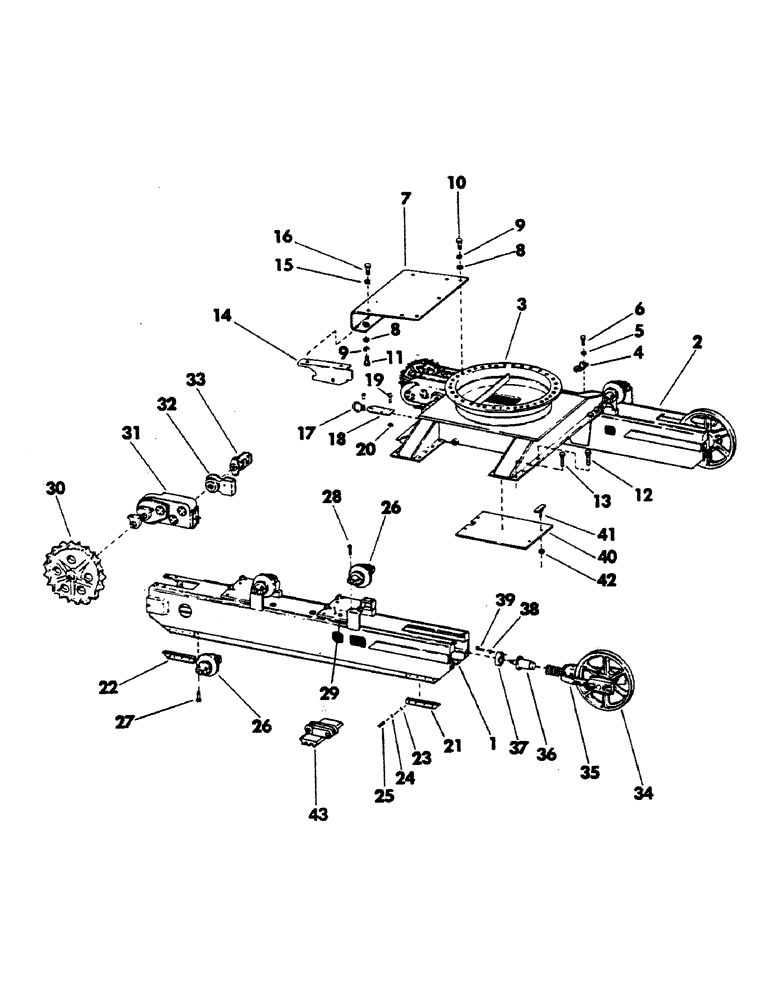

Запчасти Case 40YC (008) - CRAWLER UNDERCARRIAGE AND ATTACHING PARTS (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
S953033
FRAME, track - (Right hand)
1шт.
2
S953034
FRAME, track - (Left hand)
1шт.
3
S953036
CARBODY
1шт.
4
S209072
STOP, tracking adjusting
4шт.
5
S4399
WASHER
lock - 1/2"
8шт.
6
S2466
BOLT
CPSW - 1/2" NC x 1-1/4" gr 5
8шт.
7
S57024
GUARD, motor
1шт.
8
S7393
WASHER
flat - 1/2"
5шт.
9
S4399
WASHER
- lock - 1/2"
5шт.
10
S2466
BOLT
CPSW - 1/2" NC x 1-1/4" gr 5
3шт.
11
S2468
BOLT
CPSW - 1/2" NC x1-3/4" gr 5
2шт.
12
S93531
BOLT
CPSW - 7/8" NC x 3" gr 8
16шт.
13
S93532
BOLT
CPSW - 7/8" NC x 2" gr 8
16шт.
14
S501901M2
SHIELD - (Right hand) - (Illustrated)
1шт.
S501900M2
SHIELD - (Left hand) - (Not illustrated)
1шт.
15
S4399
WASHER
lock - 1/2"
8шт.
16
S2467
BOLT
CPSW - 1/2" NC x 1-1/2" gr 5
8шт.
17
S100742
SHACKLE
round pin - (Optional)
1шт.
18
S209710
PLATE
draw bar - (Optional)
1шт.
19
S2548
BOLT (MACHINE)
CPSW - 3/4" NC x 2-3/4" gr 5
4шт.
20
S4227
NUT
- 3/4" NC
4шт.
21
S215812
BAR
wear - (Right hand)
4шт.
22
S215813
BAR
wear - (Left hand)
4шт.
23
S86132
WASHER
flat - 1/2"
32шт.
24
S4399
WASHER
lock - 1/2"
32шт.
25
S83408
BOLT
CPSW - 1/2" NC x 1-1/2" gr 8
32шт.
26
ROLLER, track - (For breakdown, see Figures 012 and 014)
20шт.
Change in listing.
1шт.
27
S83629
BOLT
CPSW - 5/8" NC x 2" gr 8
64шт.
Change in listing.
1шт.
28
S2506
BOLT (MACHINE)
CPSW - 5/8" NC x 2-1/2" gr 5
16шт.
29
S17088
NUT
self locking - 5/8" NC
16шт.
30
S952423M1
RIM
WHEEL, sprocket drive
2шт.
31
TRANSMISSION, final drive - (Left hand) - (For breakdown, see Figure 018)
1шт.
Change in listing.
1шт.
TRANSMISSION, final drive - (Right hand) - (For breakdown, see Figure 018)
1шт.
Change in listing.
1шт.
32
BRAKE, track drive - (For breakdown, see Figure 086)
2шт.
33
MOTOR, track drive - (For breakdown, see Figure 139)
2шт.
34
WHEEL, front idler - (For breakdown, see Figure 010)
2шт.
35
TRACK ADJUSTER GROUP, - (For breakdown, see Figure 010)
2шт.
36
CYLINDER, track adjustment - (For breakdown, see Figure 021)
2шт.
Change in listing.
1шт.
37
S79135
SPACER
2шт.
38
S4399
WASHER
lock - 1/2"
4шт.
39
86505993
BOLT,Hex, 1/2" - 13 x 4", Gr 5
4шт.
40
S210279
PLATE, swivel guard
1шт.
41
S210280
CLAMP
4шт.
42
S9093
NUT, self locking - 5/8" NC
4шт.
43
TRACK ASSEMBLY - (For breakdown, see Figure 016 and 016A)
2шт.
Change in listing.
1шт.
Выбрано товаров: 51
