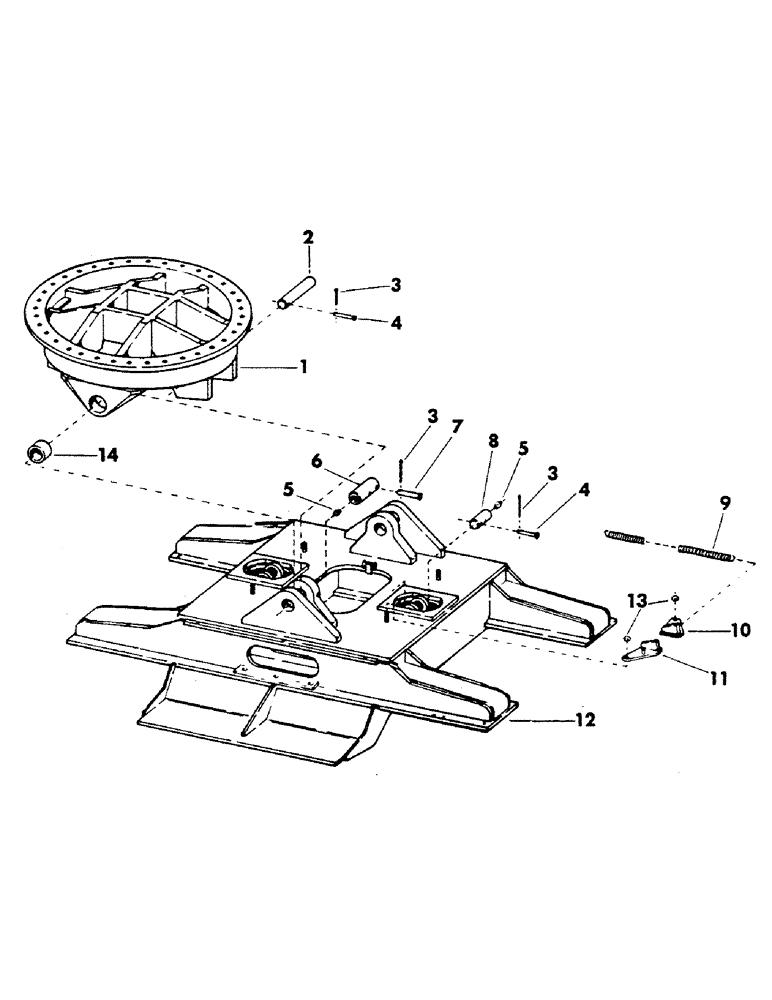

Запчасти Case 40YC (007) - TURNTABLE LEVELER WITH PINS AND HARDWARE (04) - UNDERCARRIAGE

1

S56800

LEVEL

ER, upper

1шт.

2

S78554

PIN

, Serial Range: cylinder-top

2шт.

3

S4627

SPLIT PIN

PIN, cotter - 5/32" x 1" long

6шт.

4

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

4шт.

5

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

4шт.

6

S72631

PIN

leveler, Serial Range: top-bottom

2шт.

7

S61976

CLEVIS PIN

PIN, clevis - 5/8" x 4.516" grip length

2шт.

8

S78317

PIN

, Serial Range: cylinder-bottom

2шт.

9

S64335

SPRING

2шт.

10

S209083

STOP, leveler

2шт.

11

S209082

STOP, leveler

2шт.

12

S953035

LEVELER, lower

1шт.

13

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

14

S202163

BUSHING

S

2шт.
