(40YC) - DROTT SERIES-B CRAWLER EXCAVATOR (1/71-12/84)
/
(01) - ENGINE
/

(166) - SPARK ARRESTORS

Запчасти Case 40YC (166) - SPARK ARRESTORS (01) - ENGINE

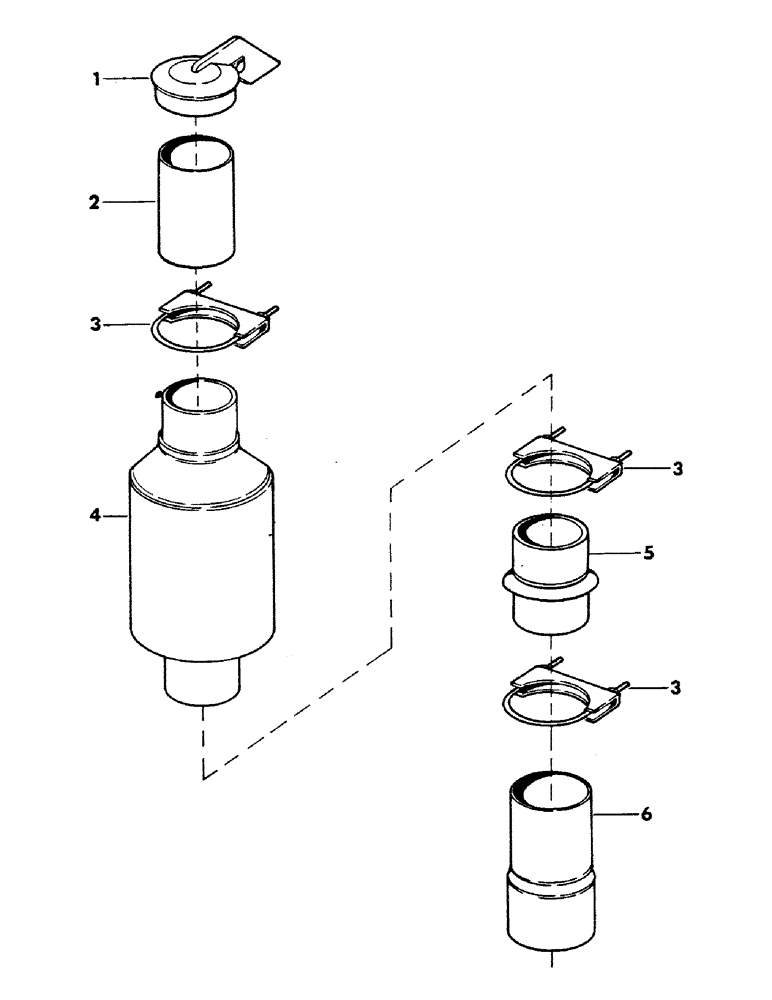

Схема запчастей Case 40YC - (166) - SPARK ARRESTORS (01) - ENGINE

№

Артикул

Название

Примечание

Количество

S607432

KIT, spark arrestor - complete - (Consists of items 1 thru 6) (Used with Detroit diesel 4-71 engines on units with serial no. 1884 thru 2003)

1шт.

1

S19795

CAP, rain, quantities listed are for complete kit

1шт.

2

S99869

PIPE, EXHAUST SYSTEM

PIPE, exhaust, quantities listed are for complete kit

1шт.

3

S68529

CLAMP

exhaust pipe, quantities listed are for complete kit

3шт.

4

S226198

SPARK ARRESTER

ARRESTOR, spark, quantities listed are for complete kit

1шт.

5

S99157

CONNECTOR, ELEC

CONNECTOR, quantities listed are for complete kit

1шт.

6

S99866

ADAPTER

exhaust, quantities listed are for complete kit

1шт.

S607431

KIT, spark arrestor - complete - (Consists of items 1 thru 5) (Used with Case 504BD diesel engines on units with serial no. 1884 thru 2003), quantities listed are for complete

1шт.

1

D33884

CAP

rain, quanitites listed are for one complete kit

1шт.

2

S99883

PIPE

exhaust, quanitites listed are for one complete kit

1шт.

3

S65056

CLAMP

exhaust pipe, quanitites listed are for one complete kit

2шт.

4

S99882

MUFFLER

ARRESTOR, spark, quanitites listed are for one complete kit

1шт.

5

S99867

CONNECTOR, quanitites listed are for one complete kit

1шт.

S607433

KIT

spark arrestor - complete - (Consists of items 1 thru 5) (Used with Detroit diesel 4-71 and Case 504BD diesel engines on units with serial number 2004 - up), quanitites listed are for one complete

1шт.

1

S19795

CAP, rain, quanitites listed are for one complete kit

1шт.

2

S99869

PIPE, EXHAUST SYSTEM

PIPE, exhaust, quanitites listed are for one complete kit

1шт.

3

S68529

CLAMP

exhaust pipe, quanitites listed are for one complete kit

2шт.

4

S226198

SPARK ARRESTER

ARRESTOR, spark, quanitites listed are for one complete kit

1шт.

5

S99157

CONNECTOR, ELEC

CONNECTOR, quanitites listed are for one complete kit

1шт.

FOR PART NO. S 607432, REF. #1 SHOULD READ, "A19795" 9/30/96 FOR PART NO. S 607433, REF. #1 SHOULD READ, "A19795" 9/30/96

1шт.
