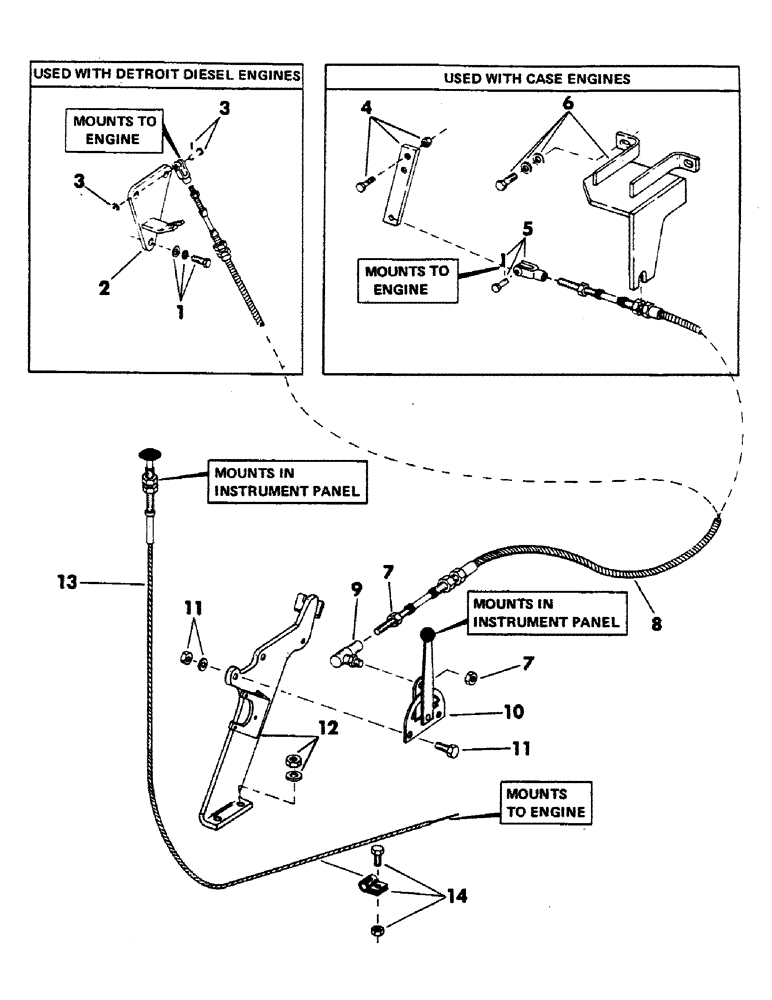

Запчасти Case 40YC (036) - THROTTLE AND SHUT-OFF CONTROL CABLES (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
S2431
BOLT
CPSW - 7/16" NC x 1-1/4" gr 5
1шт.
S4398
WASHER, LOCK
- 7/16"
1шт.
S7389
WASHER
flat - 7/16"
1шт.
S2466
BOLT
CPSW - 1/2" NC x 1-1/4" gr 5
2шт.
S4399
WASHER
lock - 1/2"
2шт.
S86132
WASHER
flat - 1/2"
2шт.
2
S211614
BRACKET
cable support -, Serial Range: (Mounts-engine)
1шт.
3
S87722
PIN
1шт.
S7377
WASHER
flat - 1/4"
1шт.
S87721
CLIP, hairpin
1шт.
S63916
SCREW
machine - No. 10 NF x 3/8"
1шт.
4
S92444
BAR
LEVER, throttle control
1шт.
S2360
SCREW
CPSW - 1/4" NC x 7/8" gr 5
2шт.
231-1444
NUT,1/4"-20, GB
NUT, LOCK, 1/4"-20, GB
2шт.
5
S12568
YOKE
1шт.
S10714
CLEVIS PIN
PIN, clevis - 1/4" x .648" grip length
1шт.
S4620
PIN, SPLIT (COTTER)
PIN, cotter - 7/64" x 3/4" long
1шт.
6
S505829
BRACKET
cable support
1шт.
S2401
BOLT
CPSW - 3/8" NC x 1" gr 5
2шт.
S4397
WASHER
lock - 3/8"
2шт.
S7385
INSTRUCTION
WASHER, flat - 3/8"
2шт.
7
425-154
JAM NUT,Jam, 1/4"-28, G5
- 1/4" NF
1шт.
8
S219334
CABLE
throttle
1шт.
9
S76046
GASKET
JOINT, ball
1шт.
S17151
NUT
- 1/4" NF
1шт.
10
S91894
CONTROL LEVER
LEVER, throttle
1шт.
S94426
KNOB
BALL, throttle lever
1шт.
11
S2351
BOLT
CPSW - 1/4" NC x 1" gr 5
2шт.
S7380
WASHER
flat - 1/4"
2шт.
231-1444
NUT,1/4"-20, GB
NUT, LOCK, 1/4"-20, GB
2шт.
12
S505702
BRACKET, throttle lever mounting
1шт.
Change in listing.
1шт.
S7387
WASHER
flat - 13/32"
2шт.
S17167
INSTRUCTION
NUT, self locking - 3/8" NC
2шт.
13
S201620M1
CABLE, shut-off
1шт.
S7381
WASHER
flat - 5/16"
1шт.
14
S75863
CLAMP
1шт.
S2351
BOLT
CPSW - 1/4" NC x 1" gr 5
1шт.
231-1444
NUT,1/4"-20, GB
NUT, LOCK, 1/4"-20, GB
1шт.
Выбрано товаров: 39
