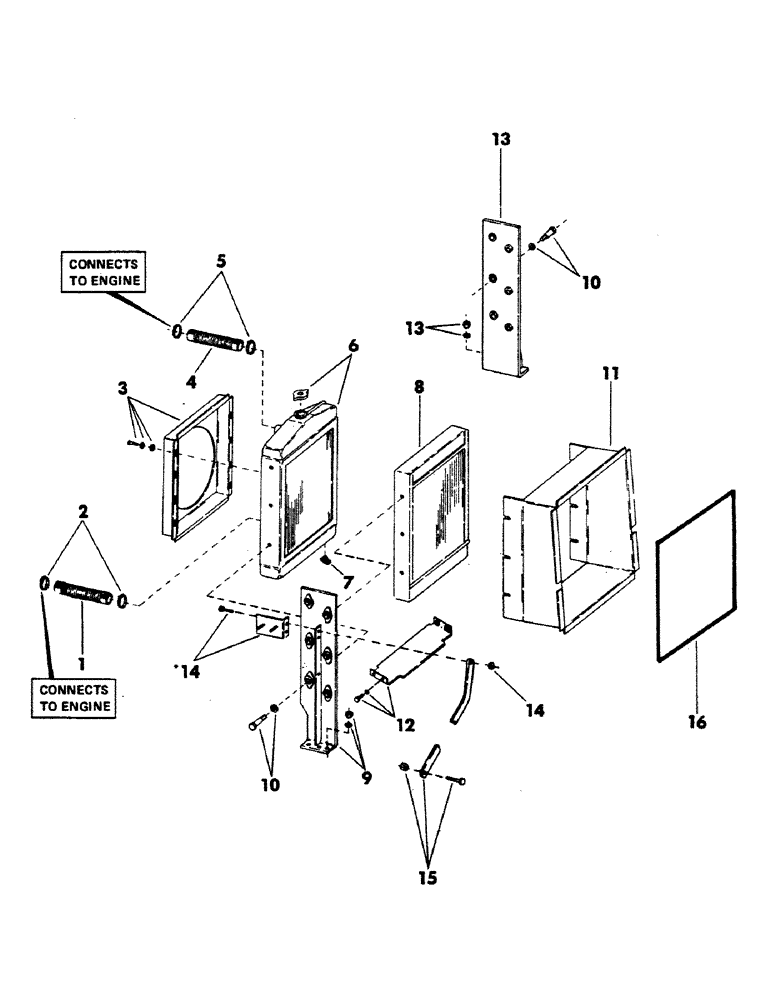

Запчасти Case 40YC (031) - RADIATOR, OIL COOLER AND HOSES (01) - ENGINE

1

S95994

HOSE

2.50" ID x 20.00", SAE 20R5, Radiator, Lower; Used on Units With CASE 504BD Diesel Engines

1шт.

S63572

HOSE

lower radiator - (Used on units with Detroit diesel 4-71 engines)

1шт.

2

S10880

HOSE CLAMP

CLAMP, hose - (Used on units with Case 504BD diesel engines)

2шт.

S10878

HOSE CLAMP

CLAMP, hose - (Used on units with Detroit diesel 4-71 engines)

2шт.

3

S602543

SHROUD

fan - (Used on units with Case 504BD diesel engines)

1шт.

Change in listing.

1шт.

S602534

SHROUD

fan - (Used on units with Detroit diesel 4-71 engines)

1шт.

S14471

BOLT (MACHINE)

SCREW, machine - 1/4" NC x 3/8" gr 5

8шт.

S7342

WASHER, LOCK

WASHER, internal tooth lock - 1/4"

8шт.

S7377

WASHER

flat - 1/4"

8шт.

4

S94323

RADIATOR HOSE,2.50" ID x 8.25", SAE 20R4 CLASS SC

- Upper (Used on units with Case 504BD diesel engines) 2.50" ID x 8.25", SAE 20R4 CLASS SC

1шт.

S83666

HOSE

upper radiator - (Used on units with Detroit diesel 4-71 engines)

1шт.

5

S10880

HOSE CLAMP

CLAMP, hose - (Used on units with Case 504BD diesel engines)

2шт.

S10877

HOSE CLAMP

CLAMP, hose - (Used on units with Detroit diesel 4-71 engines)

2шт.

6

S600781

RADIATOR

- (Used on units with Case 504BD diesel engines)

1шт.

S57279

RADIATOR - (Used on units with Detroit diesel 4-71 engines)

1шт.

7

S49610

VALVE

radiator drain

1шт.

8

S601960

COOLER, oil

1шт.

9

S505875

BRACKET, radiator and cooler mounting - (Right hand) - (Used with Case 504BD diesel engines) - (Used on units with serial no. 1500 thru 6270478 and 6270484 thru 6270487)

1шт.

S509886

BRACKET, radiator and cooler mounting - (Right hand) - (Used with Case 504BD diesel engines) - (Used on units with serial no. 6270479 thru 6270483 and 6270488 and after)

1шт.

S505855

BRACKET, radiator and cooler mounting - (Right hand) - (Used with Detroit diesel 4-71 engine) - (Used on units with serial no. 1500 thru 6270478 and 6270484 thru 6270487)

1шт.

S509882

BRACKET, radiator and cooler mounting - (Right hand) - (Used with Detroit diesel 4-71 engines) - (Used on units with serial no. 6270479 thru 6270483 and 6270488 and after)

1шт.

S86132

WASHER

hardened flat - 1/2"

3шт.

S17086

NUT

self locking - 1/2" NC

3шт.

10

S7344

WASHER, LOCK

WASHER, internal tooth lock - 3/8"

6шт.

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1-5/8" gr 5

6шт.

11

S602544

SHROUD - (Used on units with Case 504BD diesel engines)

1шт.

S602535

SHROUD - (Used on units with Detroit diesel 4-71 engines)

1шт.

12

S224312

BRACKET, radiator to cooler - (Upper and lower) - (Used with Detroit diesel 4-71 engines) - (Used on units with serial no. 1500 thru 6270478 and 6270484 thru 6270487)

2шт.

S224310

BRACKET, radiator to cooler - (Upper) - (Used with Case 504BD diesel engines) - (Used on units with serial no. 1500 thru 6270478 and 6270484 thru 6270487)

1шт.

S224314

BRACKET, radiator to cooler - (Lower) - (Used with Case 504BD diesel engines) - (Used on units with serial no. 1500 thru 6270478 and 6270484 thru 6270487)

1шт.

S228881

BRACKET, radiator to cooler - (Upper and lower) - (Used on units with serial no. 6270479 thru 6270483 and 6270488 and after)

2шт.

13

S505876

BRACKET, radiator and cooler mounting - (Left hand) - (Used with Case 504BD diesel engines) - (Used on units with serial no. 1500 thru 6270478 and 6270484 thru 6270487)

1шт.

S222918

SHOCK ABSORBER

GROMMET rubber, use w/part number S505876

1шт.

S509884

BRACKET, radiator and cooler mounting - (Left hand) - (Used with Case 504BD diesel engines) - (Used on units with serial no. 6270479 thru 6270483 and 6270488 and after)

1шт.

S222918

SHOCK ABSORBER

GROMMET rubber, use w/part number S505884

1шт.

S505857

BRACKET, radiator and cooler mounting - (Left hand) - (Used with Detroit diesel 4-71 engine) - (Used on units with serial no. 1500 thru 6270478 and 6270484 thru 6270487)

1шт.

S509880

BRACKET, radiator and cooler mounting - (Left hand) - (Used with Detroit diesel 4-71 engine) - (Used on units with serial no. 6270479 thru 6270483 and 6270488 and after)

1шт.

S86132

WASHER

hardened flat - 1/2"

3шт.

S17086

NUT

self locking - 1/2" NC

2шт.

14

S220540

BRACKET, relay mounting

1шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

1шт.

S2403

BOLT

CPSW - 3/8" NC x 1-1/2" gr 5

1шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

15

S222081

BAR, support

1шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

1шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.

16

S76711

SEAL

STRIP, weather - 1 piece x 150" long

1шт.
