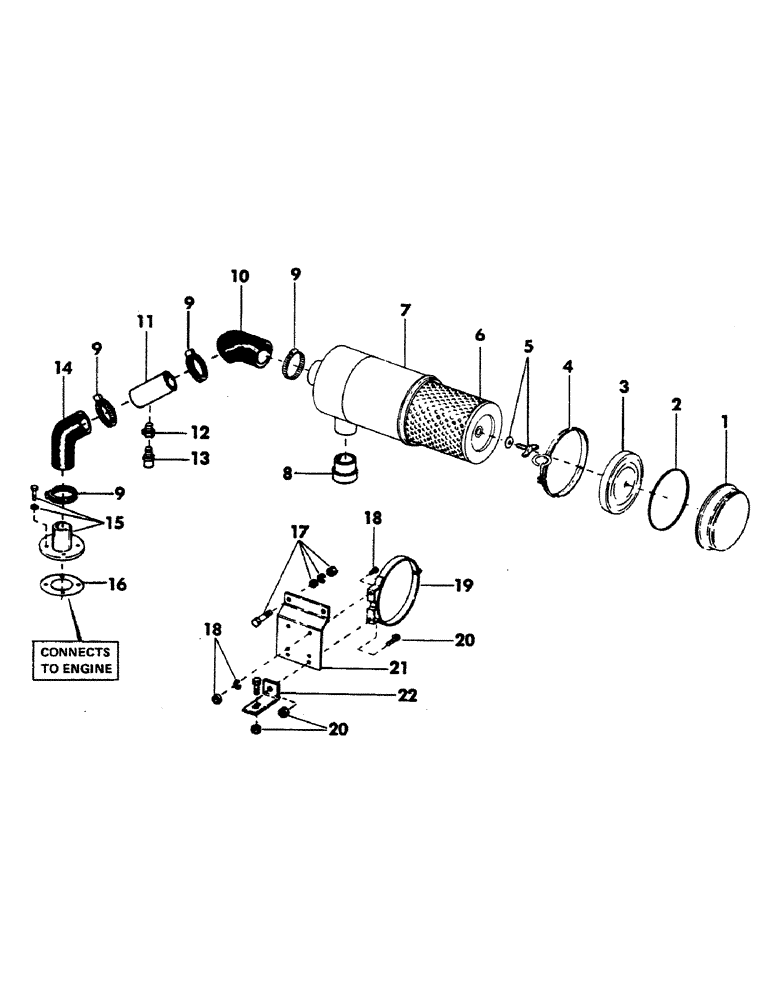

Запчасти Case 40YC (029) - AIR CLEANER AND ATTACHING PARTS FOR:, DETROIT DIESEL 4-71 ENGINE (01) - ENGINE

S505882

CLEANER, air - complete - (Consists of items 1 thru 8)

1шт.

1

S221315

COVER

CUP

1шт.

2

S94185

GASKET

"O" RING

1шт.

3

S221314

BAFFLE

1шт.

4

L30936

CLAMP

1шт.

5

S221107

BOLT (MACHINE)

SCREW ASSEMBLY

1шт.

6

S221313

FILTER, ELEMENT

ELEMENT, air cleaner

1шт.

7

NSS

NOT SOLD SEPARAT

BODY, air cleaner

1шт.

8

R21180

CAP

1шт.

9

S83027

CLAMP

4шт.

10

S92499

ELBOW

45 degree rubber

1шт.

11

S221350

TUBE 9" L

1шт.

12

D36264

FITTING

filtered

1шт.

13

A59569

INDICATOR

air restrictor

1шт.

14

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90 Degree, Rubber

1шт.

15

S206577

PIPE

ADAPTER - (Mounts to engine intake)

1шт.

S2376

CPSW - 5/16" NC x 1" gr 5

4шт.

S4396

WASHER, LOCK

- 5/16"

4шт.

16

S69424

GASKET

1шт.

17

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

2шт.

S86132

WASHER

flat - 1/2"

2шт.

S4399

WASHER

lock - 1/2"

2шт.

280431

NUT,1/2"-13, G5

2шт.

18

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

3шт.

S4397

WASHER

lock - 3/8"

3шт.

S4222

NUT

- 3/8" NC

3шт.

19

S219922

BAND

mounting

1шт.

20

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

2шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

21

S219891

PLATE, air cleaner mounting -, Serial Range: (Mounts-shroud)

1шт.

22

S94091

ANGLE, mounting

1шт.

NOTE: ILLUSTRATION IS INCORRECT, AS SHOWN. REF. #8-DOES NOT EXIST. 9/27/96 REF. #12-MOUNTS INTO BOTTOM OF "OUTLET" END OF AIR CLEANER BODY (REF. # 7) 9/27/96 REF. #13-MOUNTS INTO D 36264 FITTING (REF. #12) 9/27/96

1шт.
