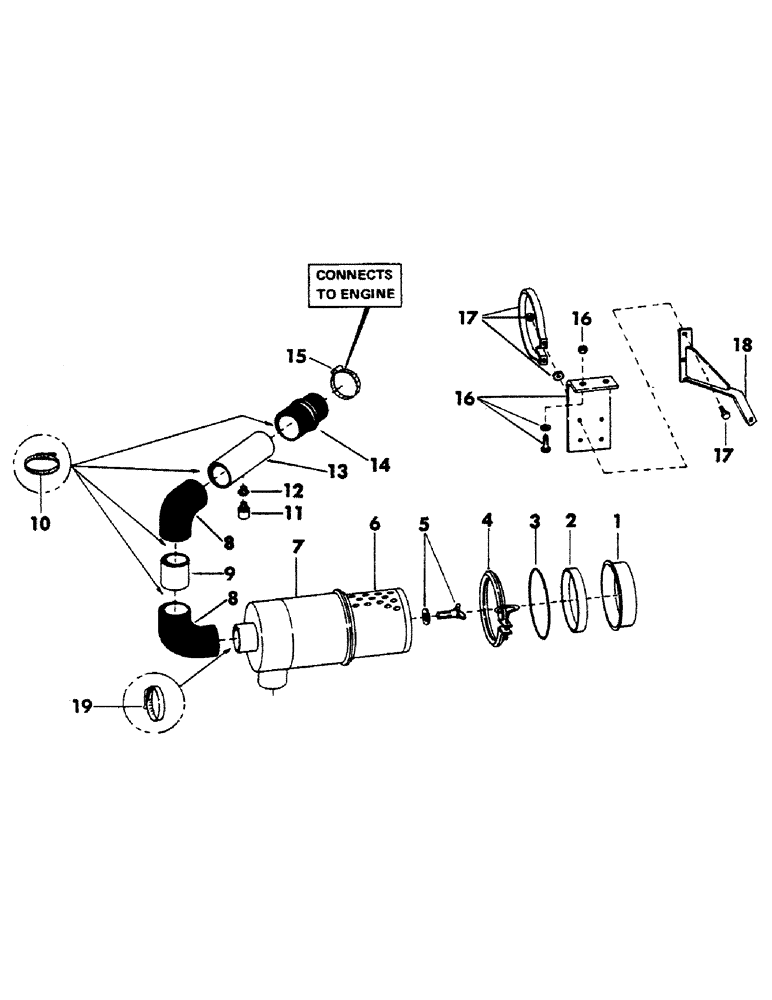

Запчасти Case 40YC (027) - AIR CLEANER AND ATTACHING PARTS FOR:, CASE 504BD DIESEL ENGINE (01) - ENGINE

S505847

CLEANER, air - complete - (consists of items 1 thru 7)

1шт.

1

L33819

CUP

1шт.

2

D50942

BAFFLE

1шт.

Change in listing.

1шт.

3

D50946

GASKET

"O" RING

1шт.

4

D50941

CLAMP

1шт.

5

S221107

BOLT (MACHINE)

SCREW ASSEMBLY

1шт.

6

S221106

ELEMENT

air cleaner

1шт.

7

NSS

NOT SOLD SEPARAT

BODY, air cleaner

1шт.

8

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90-Degree, Rubber

2шт.

9

S94599

TUBE 4" OD x 3.5" L

1шт.

10

S83027

CLAMP

4шт.

Change in listing.

1шт.

11

A56568

INDICATOR, air restrictor

1шт.

12

S36264

RING, SNAP

FITTING, filtered

1шт.

13

S220421

TUBE 5.25" L

1шт.

14

S92498

REDUCER

HUMP, reducer

1шт.

15

S83025

CLAMP

1шт.

16

S219849

BRACKET, air cleaner mounting

1шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

2шт.

S7397

WASHER

flat - 9/16"

2шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

17

S219850

BAND

mounting

2шт.

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

2шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

2шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

18

S220531

BRACKET, air cleaner mounting - (Mounts to engine shroud)

1шт.

19

S96811

HOSE CLAMP

CLAMP

1шт.

Added listing.

1шт.
