Запчасти Case 40YC (023) - CASE 504BD DIESEL ENGINE AND ATTACHING PARTS (01) - ENGINE

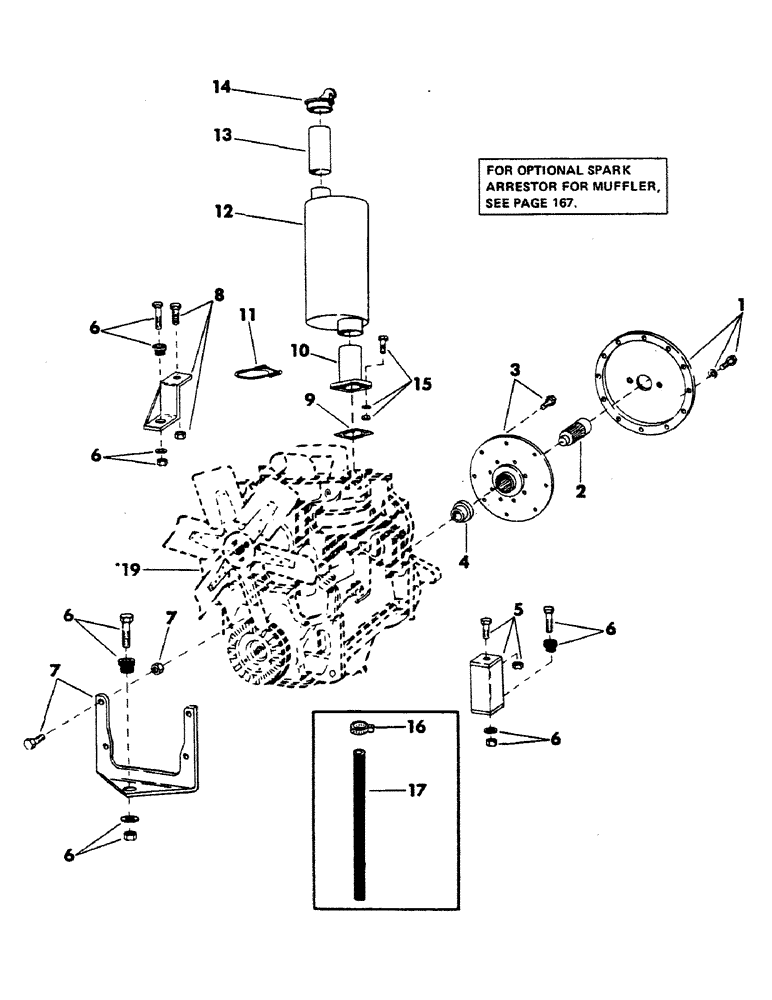

Схема запчастей Case 40YC - (023) - CASE 504BD DIESEL ENGINE AND ATTACHING PARTS (01) - ENGINE

Артикул

Название

Примечание

Количество

1

S52615

MOUNTING PARTS

MOUNTING, hydraulic pump

1шт.

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

12шт.

S4397

WASHER

lock - 3/8"

12шт.

2

S63201

COUPLING

1шт.

3

S33201M2

DAMPER

DAMPENER

1шт.

S63218

BOLT

CPSW - 3/8" NC x 5/8" gr 5

8шт.

4

S87483

ADAPTER

SPACER

1шт.

5

S220171

BRACKET, rear engine mounting - (Left hand)

1шт.

S2546

BOLT (MACHINE)

CPSW - 3/4" NC x 2-1/4" gr 5

1шт.

S17089

NUT

self locking - 3/4" NC

1шт.

6

S2557

CPSW - 3/4" NC x 5" gr 5

1шт.

S93392

MOUNTING PARTS

MOUNT, rubber

3шт.

S82255

WASHER

snubbing

3шт.

S17089

NUT

self locking - 3/4" NC

1шт.

7

S219772

SUPPORT, front engine

1шт.

S2549

BOLT

CPSW - 3/4" NC x 3" gr 5

4шт.

S17089

NUT

self locking - 3/4" NC

4шт.

8

S220170M1

BRACKET, rear engine mounting - (Right hand)

1шт.

S2546

BOLT (MACHINE)

CPSW - 3/4" NC x 2-1/4" gr 5

1шт.

S17089

NUT

self locking - 3/4" NC

1шт.

9

S87740

GASKET

1шт.

10

S215627

ADAPTER, exhaust - (Used on units with serial no. 1500 thru 2003)

1шт.

S226162

FLANGE

ADAPTER, exhuast - (Used on units with serial no. 2004 and after)

1шт.

11

S65056

CLAMP

pipe - (Used on units with serial no. 1500 thru 2003)

2шт.

S68529

CLAMP

pipe - (Used on units with serial number 2004 and after)

2шт.

12

S502058

MUFFLER

- (Used on units with serial no. 1500 thru 2003)

1шт.

S508420

MUFFLER

- (Used on units with serial no. 2004 and after)

1шт.

13

S93394

PIPE, EXHAUST SYSTEM

PIPE, exhaust - (Used on units with serial no. 1500 thru 2003)

1шт.

S98927

PIPE CLAMP

PIPE, exhaust - (Used on units with serial no. 2004 and after)

1шт.

14

D33884

CAP

exhaust pipe - (Used on units with serial no. 1500 thru 2003)

1шт.

A19795

CAP

exhaust pipe - (Used on units with serial no. 2004 and after)

1шт.

15

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr 5

4шт.

S4399

WASHER

lock - 1/2"

4шт.

280431

NUT,1/2"-13, G5

4шт.

16

S10874

HOSE CLAMP

CLAMP

1шт.

17

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 1 piece - 20" long (Mounts to breather pipe of engine) 1.00" ID Bulk, SAE 100R3

1шт.

18

S88836

SET OF BELTS,0.69" W x 60.00" L

V-Belt, Fan and alternator (Matched set of 2) (Not illustrated) 0.69" W x 60.00" L

1шт.

19

A64310

ENGINE - (Case 504BD) - (Used on units with serial no. 1500 thru 6270522)

1шт.

An added listing.

1шт.

A137712

ENGINE ASSEMBLY

ENGINE - (Case 504BD) - (Used on units with serial no. 6270523 and after)

1шт.

An added listing.

1шт.

Выбрано товаров: 41
