Запчасти Case 40YC (098) - CONCRETE REMOVAL BUCKET (19) - BUCKETS

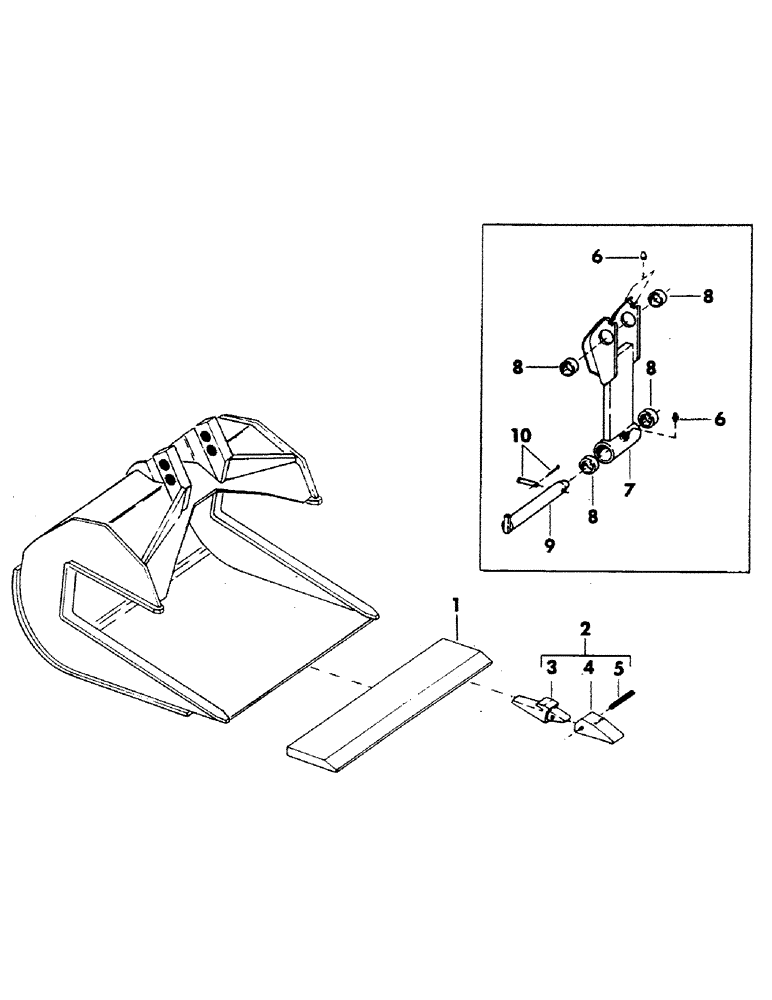

Схема запчастей Case 40YC - (098) - CONCRETE REMOVAL BUCKET (19) - BUCKETS

Артикул

Название

Примечание

Количество

S952763

BUCKET

concrete - complete - (Consists of items 1 and 2)

1шт.

1

S218340

EDGE, CUTTING

1шт.

2

S503108

TOOTH

- (Includes items 3 thru 5)

6шт.

3

S59402

SHANK

6шт.

4

S503093M1

TIP, tooth

6шт.

5

S7894

PIN

roll - 33/64" - 2-1/2" long

6шт.

6

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

3шт.

7

S208062M2

LINK

- (Includes items 6 and 8)

1шт.

8

S202134

BUSHING

4шт.

9

S223986

PIN

- (Supersedes S205653M1)

1шт.

Change in listing.

1шт.

10

S61974

PIN

clevis - 1/2" x 4.266" grip length

1шт.

S4641

PIN, SPLIT (COTTER)

PIN, cotter - 5/32" x 1" long

1шт.

Выбрано товаров: 13
