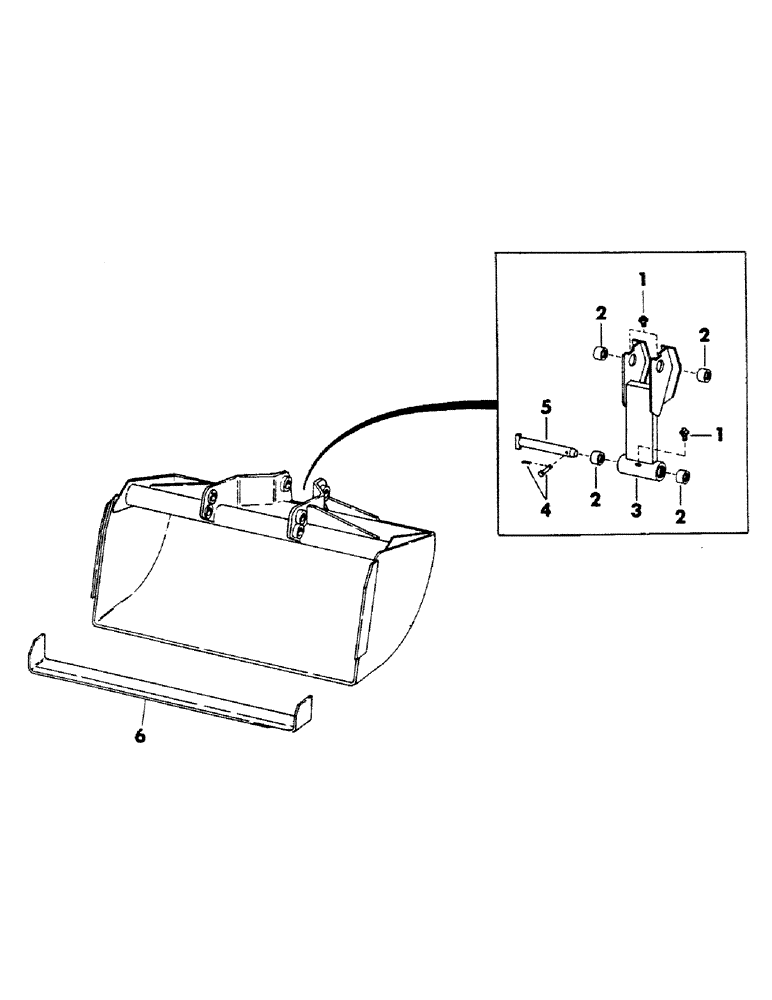

Запчасти Case 40YC (097) - DITCH BUCKET (19) - BUCKETS

S951016M2

BUCKET, ditch - 60" - complete - (Consists of items 6 and 7)

1шт.

S952131

BUCKET, ditch - 72" - complete - (consists of items 6 and 7)

1шт.

1

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

3шт.

2

S202134

BUSHING

4шт.

3

S208062M2

LINK

- (Includes items 1 and 2)

1шт.

4

S61972

PIN

clevis - 1/2" x 3.266" grip length

1шт.

S4641

PIN, SPLIT (COTTER)

PIN, cotter - 5/32" x 1 " long

1шт.

5

S223986

PIN

1шт.

6

S206752

EDGE

cutting - (Used with S951016M2 ditch bucket)

1шт.

S212928

EDGE

cutting - (Used with S952131 ditch bucket)

1шт.

7

S68433

IDENTITY PLATE

PLATE, identification - (Not illustrated)

1шт.

S23395

SCREW

drive

4шт.
