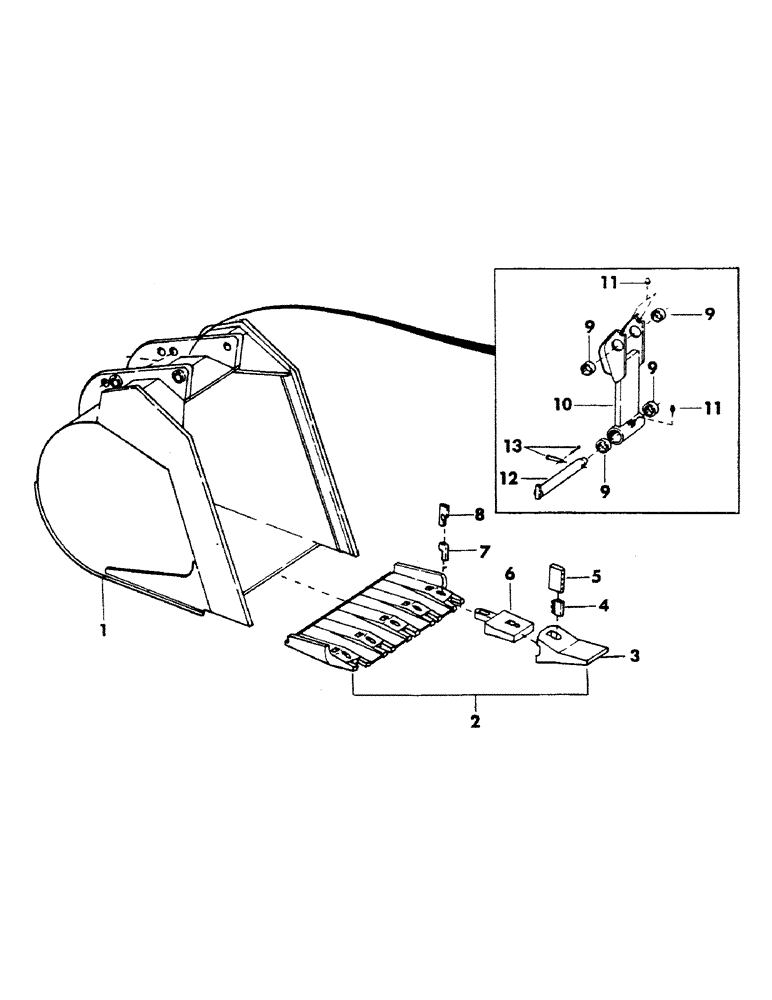

Запчасти Case 40YC (096) - SEVERE DUTY BACKHOE BUCKETS WITH ESCO TEETH (19) - BUCKETS

1

S953269

BUCKET, severe duty backhoe - 24-1/4" inside width - 1/2 cu. yd. capacity

1шт.

S953270

BUCKET, severe duty backhoe - 29-1/4" inside width - 5/8 cu. yd. capacity

1шт.

S953271

BUCKET, severe duty backhoe - 35-1/4" inside width - 3/4 cu. yd. capacity

1шт.

2

S506820

LIP ASSEMBLY - (Used with 953269 bucket - includes lip and 4 of items 3 thru 8)

1шт.

S506821

LIP ASSEMBLY - (Used with 953270 bucket - includes lip and 4 of items 3 thru 8)

1шт.

S506822

LIP ASSEMBLY - (Used with 953271 bucket - includes lip and 5 of items 3 thru 8)

1шт.

3

S96431

POINT

1шт.

4

S96433

LOCK

1шт.

5

S96434

PIN

1шт.

6

S96432

NIPPLE, LUBE

ADAPTER

1шт.

7

S110286

SPOOL

LOCK - (Supersedes S96436)

1шт.

Change in listing.

1шт.

8

S110285

WEDGE

KEY - (Supersedes S96435)

1шт.

Change in listing.

1шт.

9

S202134

BUSHING

4шт.

10

S208062M2

LINK

- (Includes item 10 and 12)

1шт.

11

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight)

3шт.

12

S223986

PIN

- (Supersedes S205653M1)

1шт.

Change in listing.

1шт.

13

S61972

PIN

clevis - 1/2" x 3.266" grip length

1шт.

S4641

PIN, SPLIT (COTTER)

PIN, cotter - 5/32" x 1" long

1шт.
