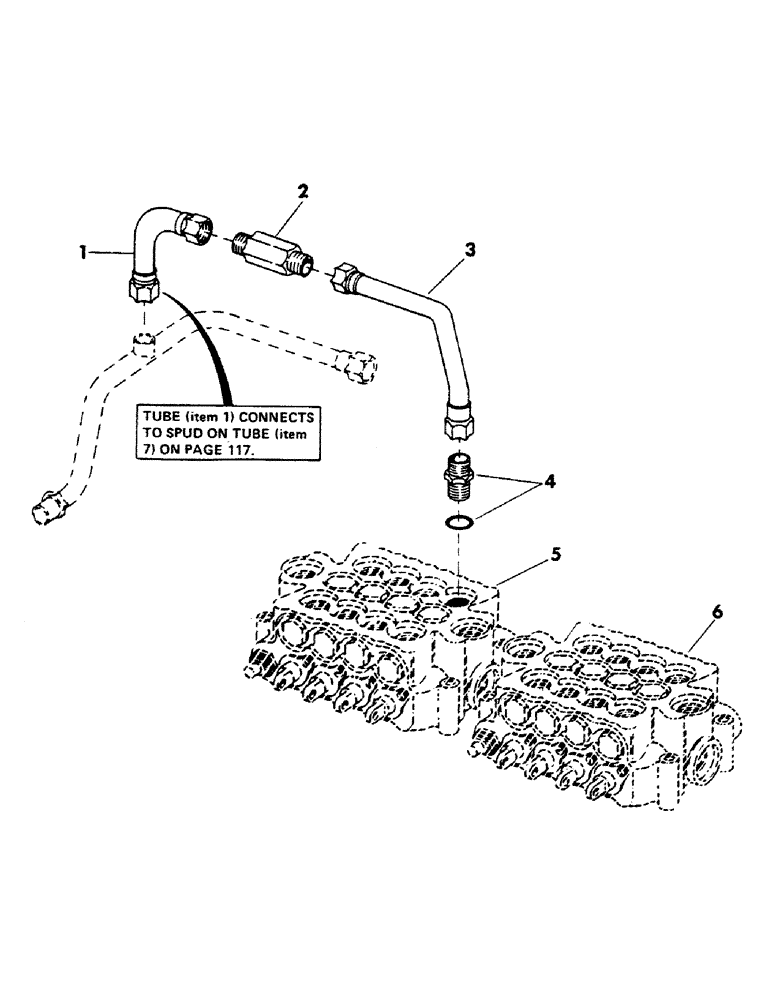

Запчасти Case 40YC (178) - FAST HOIST HYDRAULICS (18) - ATTACHMENT ACCESSORIES

1

S221086

TUBE,1.25" OD x 4.25, 9.39" L

LINE, hydraulic

1шт.

2

S93154

VALVE

check

1шт.

3

S221085

TUBE,1.25" OD

LINE, hydraulic

1шт.

4

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 7/8" - 14 male - 37 degrees flared - (Includes "o" ring)

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

1шт.

5

VALVE, 4-spool main control - (Inside) - (For breakdown, see Figure 149)

1шт.

6

VALVE, 4-spool main control - (Outside) - (For breakdown, see Figure 151)

1шт.
