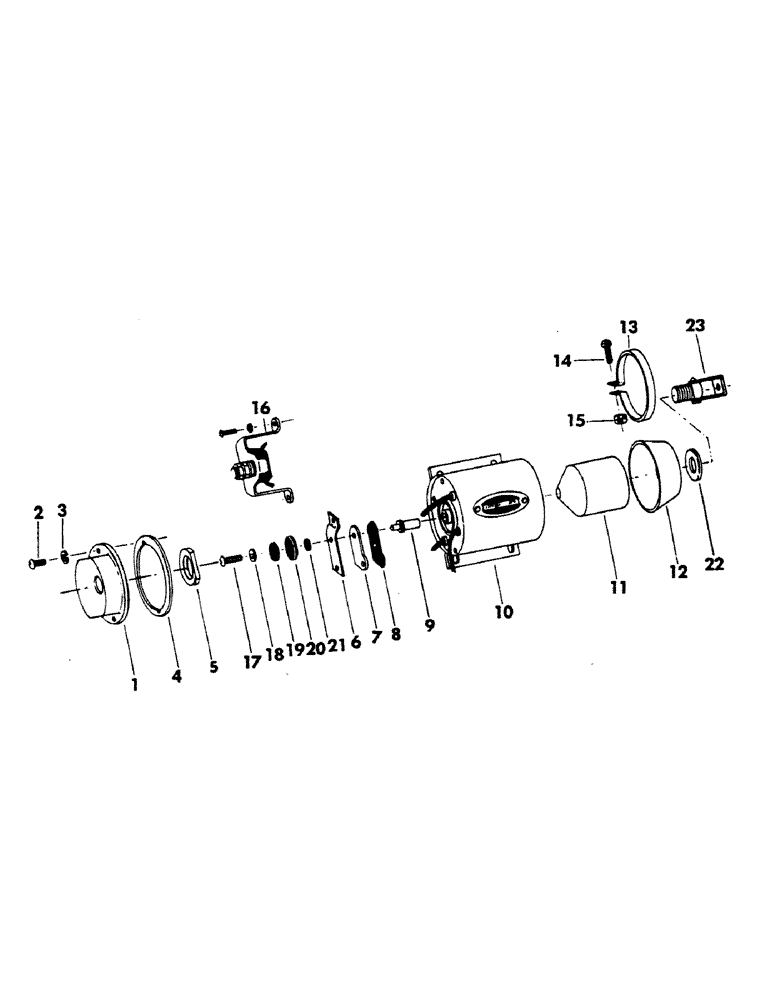

Запчасти Case 40YC (176) - FAST HOIST SOLENOID (18) - ATTACHMENT ACCESSORIES

S205334

SOLENOID

switch - complete - (Consists of items 1 thru 23)

2шт.

1

S73263

COVER, quantities listed are for one complete solenoid

1шт.

2

S14453

SCREW, machine - no. 8 NC x 5/16", quantities listed are for one complete solenoid

2шт.

3

S4395

WASHER, LOCK

- 1/4", quantities listed are for one complete solenoid

2шт.

4

S73264

GASKET

quantities listed are for one complete solenoid

1шт.

5

S73265

GASKET

quantities listed are for one complete solenoid

1шт.

6

S73266

SPRING

contact, quantities listed are for one complete solenoid

1шт.

7

S73267

CONTACT

AND SUPPORT, quantities listed are for one complete solenoid

1шт.

8

S73268

INSULATOR

contact, quantities listed are for one complete solenoid

1шт.

9

S73269

ROD

push, quantities listed are for one complete solenoid

1шт.

10

NSS

NOT SOLD SEPARAT

CASE AND COIL, quantities listed are for one complete solenoid

1шт.

11

S73270

PLUNGER

quantities listed are for one complete solenoid

1шт.

12

S73271

BOOT

plunger, quantities listed are for one complete solenoid

1шт.

13

S73272

CLAMP, boot, quantities listed are for one complete solenoid

1шт.

14

S14515

SCREW, machine - no. 10 NF x 5/8", quantities listed are for one complete solenoid

1шт.

15

S17262

NUT

- no. 10 NF, quantities listed are for one complete solenoid

1шт.

16

S73273

BRACKET, terminal, quantities listed are for one complete solenoid

1шт.

17

S14491

SCREW, machine - no. 8 NC x 1/2", quantities listed are for one complete solenoid

1шт.

18

S7479

WASHER

lock - no. 8, quantities listed are for one complete solenoid

1шт.

19

S7371

WASHER

flat - 3/16", quantities listed are for one complete solenoid

1шт.

20

S73274

WASHER

insulated, quantities listed are for one complete solenoid

1шт.

21

S73275

WASHER

insulated, quantities listed are for one complete solenoid

1шт.

22

WASHER, space adjusting screw, quantities listed are for one complete solenoid

1шт.

23

S73276

LINK

AND SCREW ASSEMBLY, quantities listed are for one complete solenoid

1шт.
