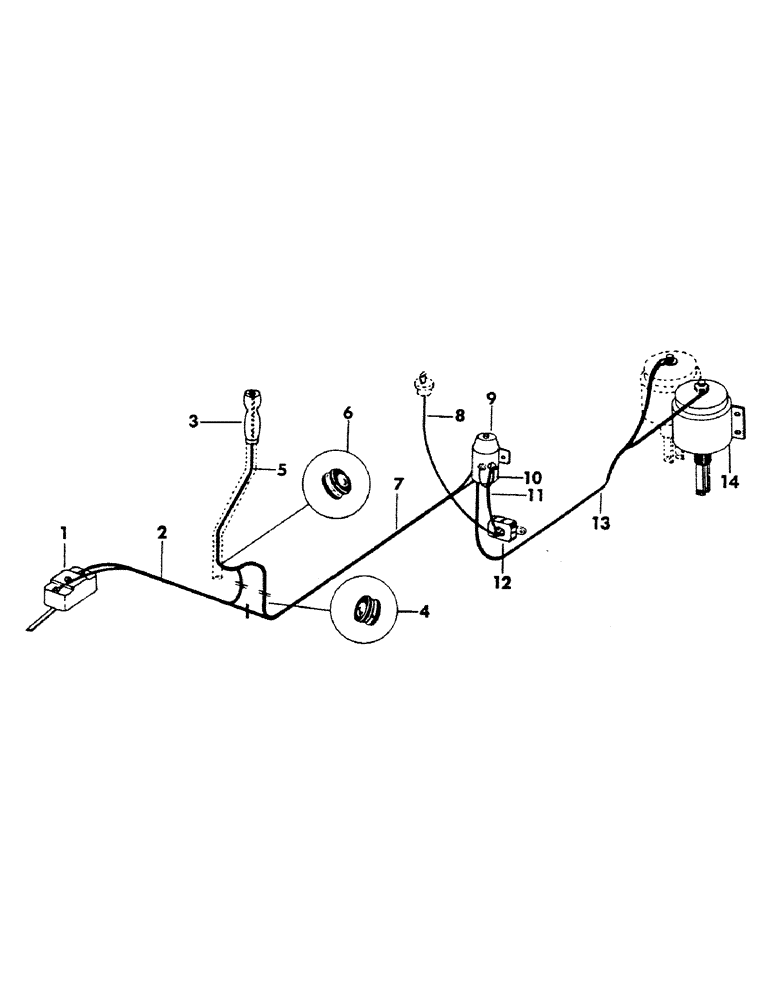

Запчасти Case 40YC (174) - FAST HOIST ELECTRICAL (18) - ATTACHMENT ACCESSORIES

1

S67614

SWITCH

micro - (On swing linkage)

1шт.

S72426

COVER

1шт.

S14575

SCREW, machine - no. 6 NC x 1-1/4"

2шт.

S7371

WASHER

flat - 3/16"

2шт.

S7338

WASHER

lock - 3/16"

2шт.

S17261

NUT

- no. 6 NC

2шт.

S73387

CLIP

TIE, cable

2шт.

2

S217710

WIRING HARNESS - 16 gauge wire x 20" long

1шт.

3

S218252

SWITCH

ASSEMBLY, push button

1шт.

S90349

SWITCH

push button

1шт.

4

S92810

GROMMET

rubber - (Through cab floor)

1шт.

5

S218253

HARNESS

WIRING HARNESS - 16 gauge x 26" long

1шт.

6

S92810

GROMMET

rubber

1шт.

7

S219446

WIRING HARNESS - 16 gauge x 80" long

1шт.

8

S221230

WIRE ASSEMBLY - 12 gauge x 24" long

1шт.

S62256

LOOM

- 32" long

1шт.

9

S70276

SOLENOID

SWITCH, magnetic

1шт.

S4396

WASHER, LOCK

- 5/16"

2шт.

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

S17276

NUT

- no. 10 NF

2шт.

S7480

WASHER, LOCK

- no. 10

2шт.

S14532

SCREW

machine - 1/4" NC x 3/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

self locking - 1/4" NC

2шт.

S7377

WASHER

flat - 1/4"

2шт.

S4395

WASHER, LOCK

- 1/4"

2шт.

10

S206566

ELECTRICAL WIRE

WIRE ASSEMBLY - no. 14 gauge x 3-1/2" long

1шт.

11

S214163

WIRE ASSEMBLY - no. 12 gauge x 7" long

1шт.

12

S49918

BREAKER

circuit

1шт.

S14514

SCREW, machine - no. 10 NC x 5/8"

2шт.

S17263

NUT

- no. 10 NC

2шт.

S7480

WASHER, LOCK

WASHER, flat - no. 10

2шт.

S17276

NUT

- no. 10 NF

2шт.

S7340

WASHER, LOCK

WASHER, flat - no. 10

2шт.

13

S219445

WIRING HARNESS - no. 10 gauge x 28" long

1шт.

14

SOLENOID - (For breakdown, see Figure 176)

2шт.
