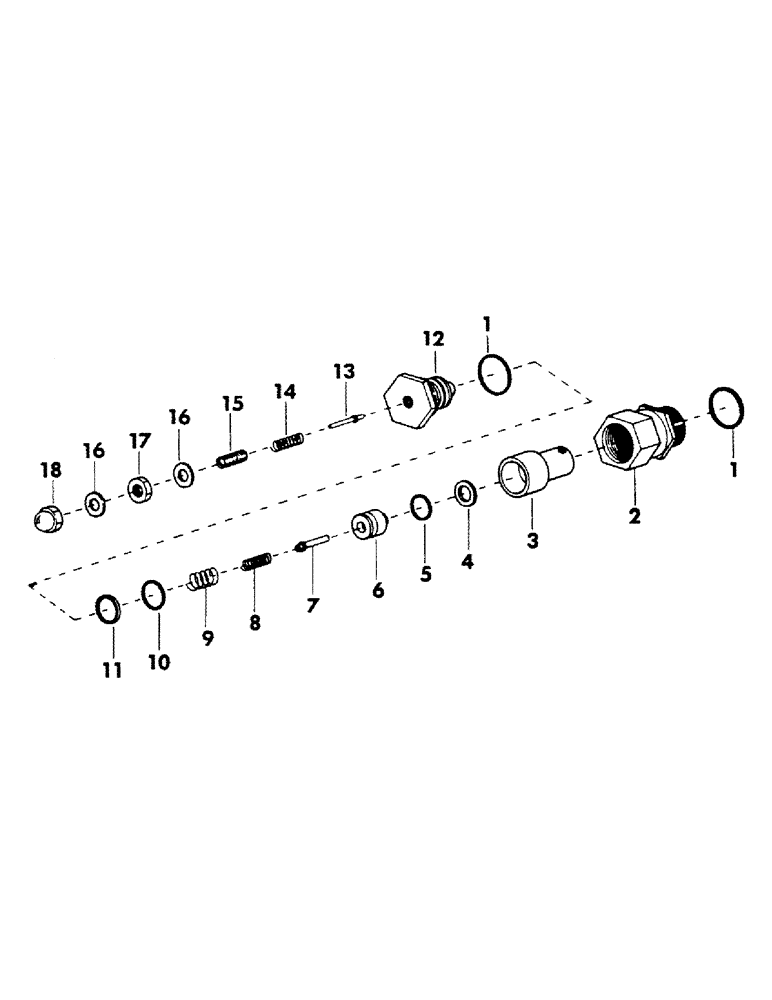

Запчасти Case 40YC (154) - PORT RELIEF CARTRIDGE (07) - HYDRAULIC SYSTEM

S81689M1

CARTRIDGE, port relief - set at 3000 PSI - complete - (Consists of items 1 thru 18)

8шт.

S81796M1

VALVE

CARTRIDGE, port relief - set at 2250 PSI - complete - (Consists of items 1 thru 18)

4шт.

S85640

VALVE

CARTRIDGE, port relief - set at 2500 PSI - complete - (Consists of items 1 thru 18)

2шт.

1

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD, quantities listed are for one complete valve

2шт.

2

S62302

CAP

quantities listed are for one complete valve

1шт.

3

S62303

POPPET, quantities listed are for one complete valve

1шт.

4

S84098

BACK-UP RING,1/2" ID x 11/16" OD

backup, quantities listed are for one complete valve

1шт.

5

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING - .487" ID x .687" OD, quantities listed are for one complete valve

1шт.

6

S62366

VALVE POPPET

POPPET, quantities listed are for one complete valve

1шт.

7

S62324

PISTON, quantities listed are for one complete valve

1шт.

8

S62326

SPRING

quantities listed are for one complete valve

1шт.

9

S62368

SPRING, quantities listed are for one complete valve

1шт.

10

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

"O" RING - .734" ID x 1.000" OD, quantities listed are for one complete valve

1шт.

11

S84155

BACK-UP RING,76mm ID x 0.45mm Width

backup, quantities listed are for one complete valve

1шт.

12

S62304

PLUG

quantities listed are for one complete valve

1шт.

13

S62323

POPPET, quantities listed are for one complete valve

1шт.

14

S62359

SPRING

quantities listed are for one complete valve

1шт.

15

S62325

ADJUSTMENT SCREW

adjustment, quantities listed are for one complete valve

1шт.

16

S62365

WASHER

copper, quantities listed are for one complete valve

2шт.

17

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF, quantities listed are for one complete valve

1шт.

18

S62363

NUT

acorn, quantities listed are for one complete valve

1шт.

NOTE: PART NOS. S81689M1; S81796M1; S85640 SUB TO PART NO. N9092 9/30/96

1шт.
