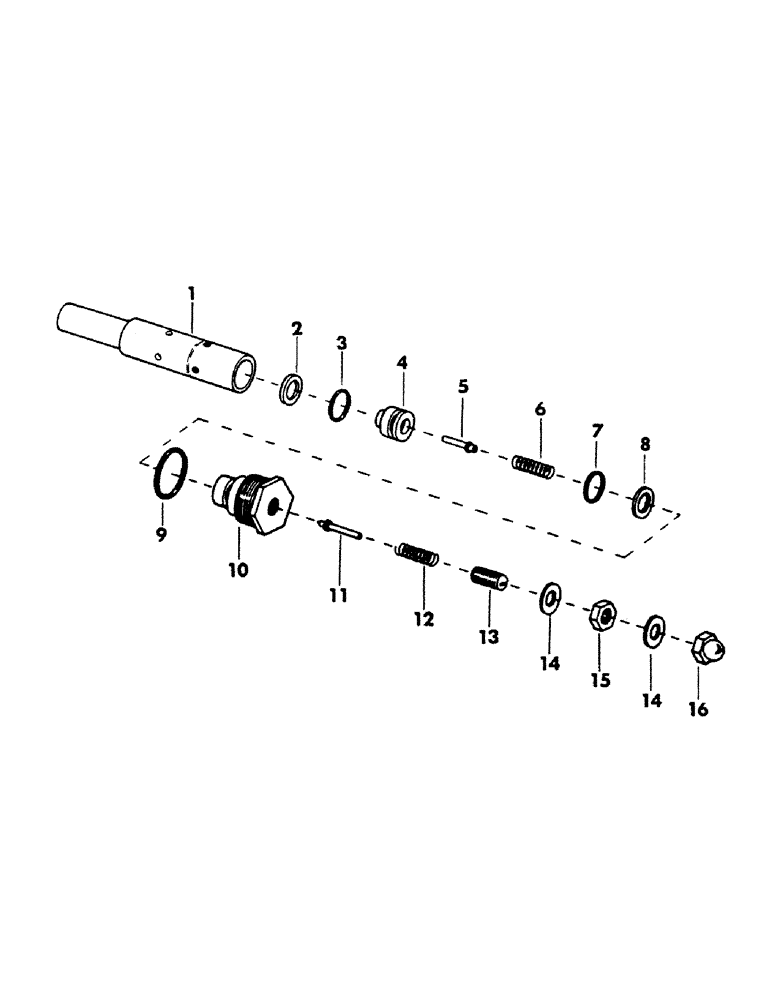

Запчасти Case 40YC (153) - MAIN RELIEF CARTRIDGE (07) - HYDRAULIC SYSTEM

S62112

CARTRIDGE

main relief - set at 2500 PSI - complete - (Consists of items 1 thru 16)

2шт.

1

S62413

SLEEVE

quantites listed are for one complete cartridge

1шт.

2

S84098

BACK-UP RING,1/2" ID x 11/16" OD

backup, quantites listed are for one complete cartridge

1шт.

3

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

"O" RING - .487" ID x .687" OD, quantites listed are for one complete cartridge

1шт.

4

S62366

VALVE POPPET

POPPET, quantites listed are for one complete cartridge

1шт.

5

S62408

PISTON

quantites listed are for one complete cartridge

1шт.

6

S62372

SPRING

quantites listed are for one complete cartridge

1шт.

7

S5706

O-RING,0.562" ID x 0.75" OD x 0.93"

"O" RING - .549" ID x .750" OD, quantites listed are for one complete cartridge

1шт.

8

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

backup, quantites listed are for one complete cartridge

1шт.

9

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" OD, quantites listed are for one complete cartridge

1шт.

10

S62414

PLUG

quantites listed are for one complete cartridge

1шт.

11

S62323

POPPET, quantites listed are for one complete cartridge

1шт.

12

S62359

SPRING

quantites listed are for one complete cartridge

1шт.

13

S62325

ADJUSTMENT SCREW

adjustment, quantites listed are for one complete cartridge

1шт.

14

S62365

WASHER

copper, quantites listed are for one complete cartridge

2шт.

15

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF, quantites listed are for one complete cartridge

1шт.

16

S62363

NUT

acorn, quantites listed are for one complete cartridge

1шт.
