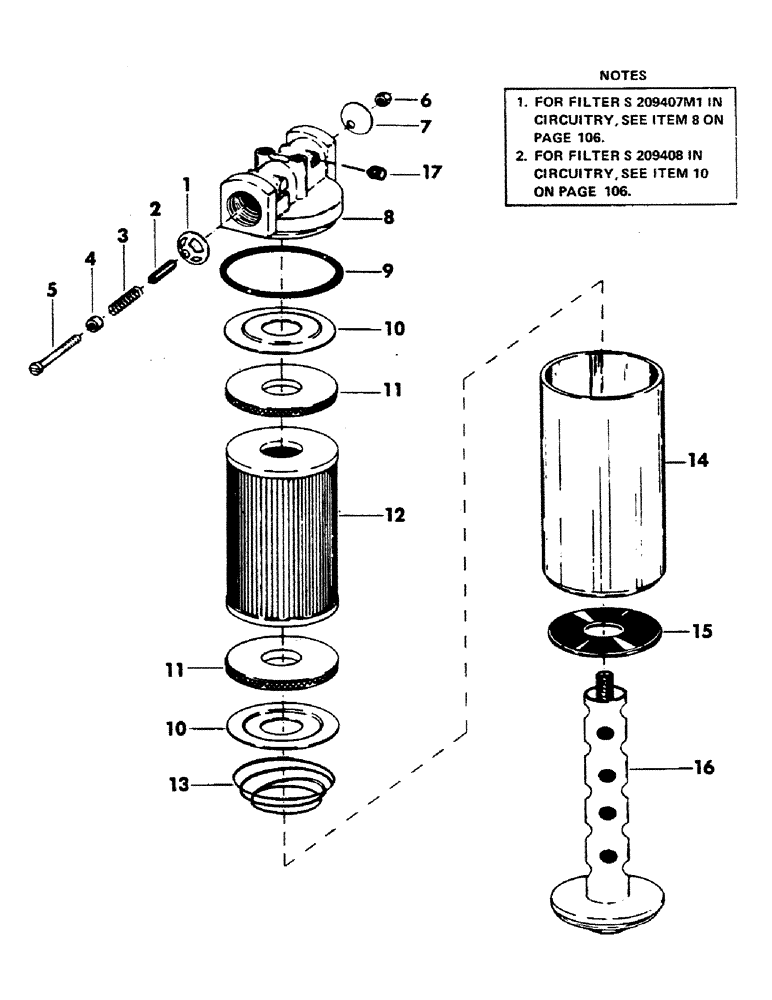

Запчасти Case 40YC (143) - HYDRAULIC OIL FILTERS (07) - HYDRAULIC SYSTEM

S209407M1

FILTER, hydraulic oil - complete - (Consists of items 5 thru 17)

1шт.

S209408

FILTER

hydraulic oil - complete - (Consists of items 1 thru 17)

1шт.

1

S63731

GUIDE

by-pass valve, quantities listed are for one complete filter

1шт.

2

S63732

SPACER

by-pass valve, quantities listed are for one complete filter

1шт.

3

S63733

SPRING

by-pass - 15 PSI, quantities listed are for one complete filter

1шт.

Change in listing.

1шт.

4

S63734

CAP

by-pass stem, quantities listed are for one complete filter

1шт.

5

S63735

SCREW, quantities listed are for one complete filter

1шт.

6

S63730

NUT

quantities listed are for one complete filter

1шт.

7

S63729

VALVE

by-pass - (Quantity of 2 used with S209407M1 filter and quantity of 1 used with S209408 filter), listed are for one complete

1шт.

8

S60100

HEAD

- (Includes item 17), quantities listed are for one complete filter

1шт.

9

S63727

SEAL

"O" RING, quantities listed are for one complete filter

1шт.

10

T29790

WASHER

backup, quantities listed are for one complete filter

2шт.

11

S89349

GASKET

quantities listed are for one complete filter

2шт.

12

S89348

FILTER, ENGINE OIL

ELEMENT, filter - 100 mesh screen - (Used with S209407M1 filter only) - (See note), quantities listed are for one complete

1шт.

S62434

FILTER, ELEMENT

ELEMENT, filter - 20 micron - (Used with S209408M1 filter only) (See note), quantities listed are for one complete

1шт.

13

S63723

SPRING

conical, quantities listed are for one complete filter

1шт.

14

S63722

HOUSING

filter, quantities listed are for one complete

1шт.

15

S63721

GASKET

quantities listed are for one complete filter

1шт.

16

S63720

POST

center - (Cast iron), quantities listed are for one complete filter

1шт.

17

S15163

PLUG, pipe - 3/8" NPT male, quantities listed are for one complete filter

1шт.
