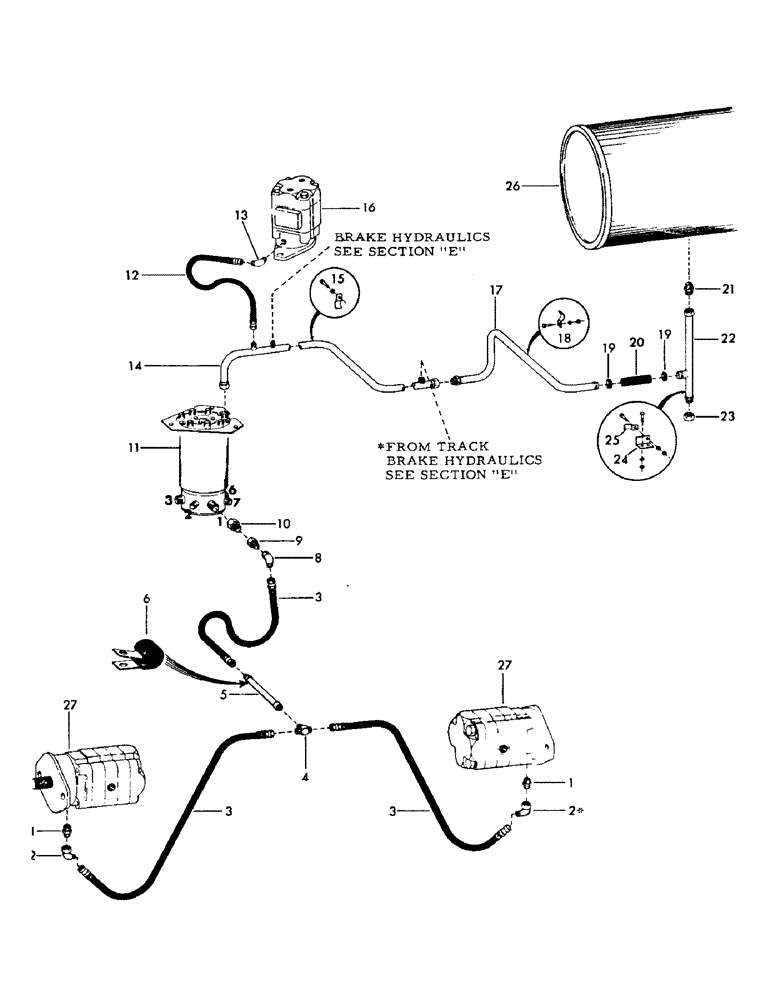

Запчасти Case 40YC (G20) - DRAIN LINE CIRCUIT, (SWING AND TRACK DRIVE MOTORS), (USED ON (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
101310
ADAPTER
flared - (1/2" long) - 3/4"-16 male x 1/4" NPT male - 37 degrees flared
2шт.
2
9490
SEAL
ELBOW, 45 degrees - swivel - (1/2" tube) 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared - (Used on units with serial number 700 thru 759)
2шт.
10357
BRACKET
ELBOW, 90 degrees - swivel - (1/2" tube) 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared - (Used on units with serial number 760-up)
2шт.
3
11230
HOSE, high pressure - 3/8" ID x 28" long - (With 3/4"-16 female pressed on couplings)
3шт.
4
60498
SPARE PART
TEE - (1/2" tube) - 3/4"-16 male x 3/4"-16 male - 37 degrees flared
1шт.
5
209700
SCREW
LINE, hydraulic
1шт.
6
77322
CLAMP
1шт.
8
10357
BRACKET
ELBOW - 90 degrees - swivel - (1/2" tube) - 3/4"-16 male x 3/4"-16 female 37 degrees flared
1шт.
9
101833
ADAPTER - reducing - (3/4" to 1/2" reduction) - 3/4"-16 male - 37 degrees flared
1шт.
6277
O-RING
NUT, tube - (3/4" tube) - 1-1/16"-12 female - 37 degrees flared
1шт.
10
101832
ADAPTER, reducing - (1" to 3/4" reduction) - 1-1/16"-12 male - 37 degrees flared
1шт.
6279
NUT, tube - (1" tube) - 1-5/16" - 12 female - 37 degrees flared
1шт.
11
SWIVEL, hydraulic - (For breakdown, see section "H")
1шт.
12
77121
HOSE, high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)
1шт.
13
5006
ELBOW, 45 degrees - flared - (3/8" tube) - 9/16"-18 male x 1/4" NPT male
1шт.
14
209678
LINE, hydraulic
1шт.
15
45219
CLAMP, tube
1шт.
2400
LAMP
CPSW - 3/8" x 3/4" NC grade 5
1шт.
4397
LOCKWASHER - 3/8"
1шт.
7389
WASHER, flat - 7/16"
1шт.
16
MOTOR, swing - (For breakdown, see section "H")
1шт.
17
208880
LINE, hydraulic
1шт.
18
45219
CLAMP, tube
1шт.
2402
LAMP
CPSW - 3/8" x 1-1/4" NC grade 5
1шт.
4397
LOCKWASHER - 3/8"
1шт.
4222
NUT - 3/8" NC
1шт.
19
10873
CLAMP, hose
2шт.
20
202581
HOSE, low pressure - (Bulk) - 1 piece - 1" ID x 8" long
1шт.
21
60838
ADAPTER, flared - (1" tube) - 1-5/16"-12 male x 3/4" NPT male
1шт.
22
208879
LINE, hydraulic
1шт.
23
9419
TANK
CAP
1шт.
24
78402
BRACKET
1шт.
2351
LAMP
CPSW - 1/4" x 1" NC grade 5
2шт.
4395
WASHER
LOCKWASHER - 1/4"
2шт.
4220
TOOL
NUT - 1/4" NC
2шт.
25
45219
CLAMP, tube
1шт.
2403
LAMP
CPSW - 3/8" x 1-1/2" NC grade 5
1шт.
4397
LOCKWASHER - 3/8"
1шт.
4222
NUT - 3/8" NC
1шт.
7389
WASHER, flat 7/16"
2шт.
Added listing.
1шт.
26
RESERVOIR, hydraulic - (For breakdown, see section "H")
1шт.
27
MOTOR, track drive - (For breakdown, see section "H")
2шт.
Выбрано товаров: 43
