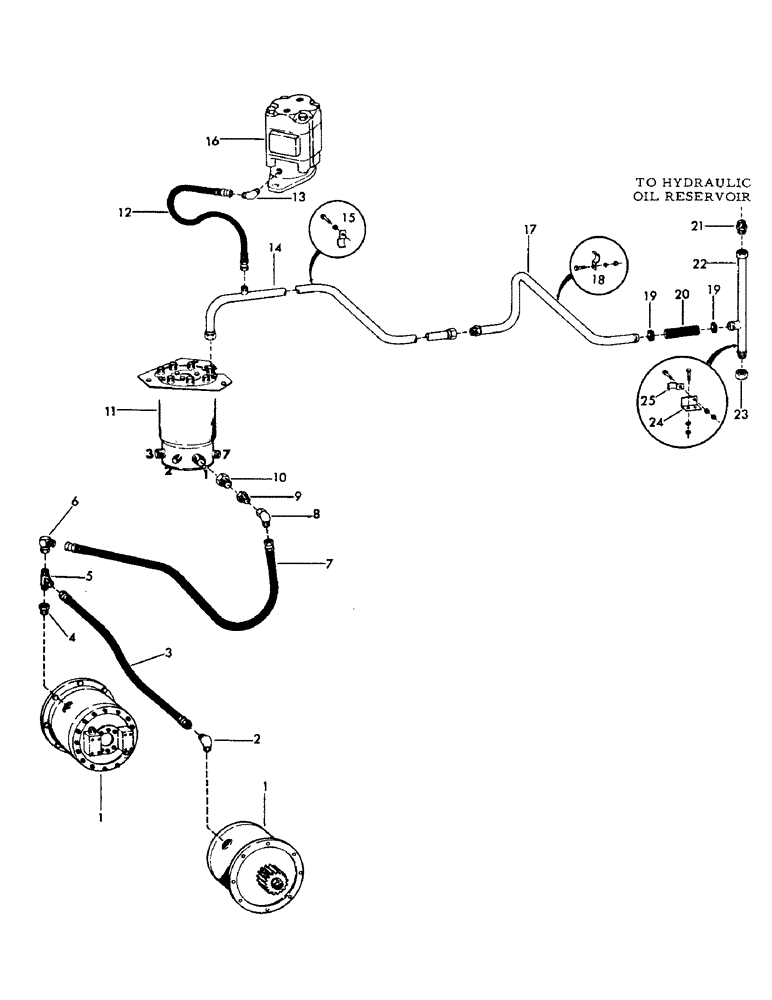

Запчасти Case 40YC (G18) - DRAIN LINE CIRCUIT, (SWING AND TRACK DRIVE MOTORS), (USED ON (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
206292
BUSHING
MOTOR, track drive - (For breakdown, see section "H")
2шт.
2
7731
HARNESS
ELBOW - 90 degrees adapter - 3/4" male x 1/2" male
1шт.
3
8657
NUT
HOSE, high pressure - 3/8" ID x 34" long
1шт.
4
7772
BUSHING, reducing - 1/2" male x 3/8" female
1шт.
5
60421
TEE - 3/4" male x 3/4" male x 3/8" NPT male
1шт.
6
10357
BRACKET
ELBOW - 90 degrees swivel - 3/4" male x 3/4" female
1шт.
7
11230
HOSE, high pressure - 3/8" x 28" long
1шт.
8
9490
SEAL
ELBOW - 45 degrees swivel - 3/4" male x 3/4" female
1шт.
9
101833
ADAPTER, reducing - 3/4" x 1/2" reduction
1шт.
10
101832
ADAPTER, reducing - 1" x 3/4" reduction
1шт.
11
53526M4
SWIVEL, hydraulic - for breakdown, see section
1шт.
12
77121
HOSE, high pressure - 1/4" ID x 20" long
1шт.
13
5006
ELBOW - 45 degrees flared - 9/16" male x 1/4" NPT male
1шт.
14
208881
LINE, hydraulic
1шт.
15
45219
CLAMP, tube
1шт.
2400
LAMP
CPSW - 3/8" x 3/4" NC grade 5
1шт.
4397
LOCKWASHER - 3/8"
1шт.
16
33530M1
MOTOR, swing - (For breakdown and mounting hardware, see section "H")
1шт.
17
208880
LINE, hydraulic
1шт.
18
45219
CLAMP, tube
1шт.
2402
LAMP
CPSW - 3/8" x 1-1/4" NC grade 5
1шт.
4397
LOCKWASHER - 3/8"
1шт.
4222
NUT - 3/8" NC
1шт.
19
10873
CLAMP, hose
1шт.
20
202581
HOSE, low pressure - 1" ID x 8" long - (Bulk)
1шт.
Change in listing.
1шт.
21
60838
ADAPTER, flared - 1-5/16" male x 3/4" male
1шт.
22
208879
LINE, hydraulic
1шт.
23
9419
TANK
CAP
1шт.
24
78402
BRACKET
1шт.
2351
LAMP
CPSW - 1/4" x 1" NC grade 5
2шт.
4395
WASHER
LOCKWASHER - 1/4"
2шт.
4222
NUT - 1/4" NC
2шт.
25
45219
CLAMP, tube
1шт.
2403
LAMP
CPSW - 3/8" x 1-1/2" NC grade 5
1шт.
4397
LOCKWSHER - 3/8"
1шт.
4220
TOOL
NUT - 3/8" NC
1шт.
26
207808M1
RESERVOIR, hydraulic (For breakdown, see section "H")
1шт.
27
39359
O-RING
MOTOR, track drive (For breakdown, see section "H")
2шт.
Выбрано товаров: 39
