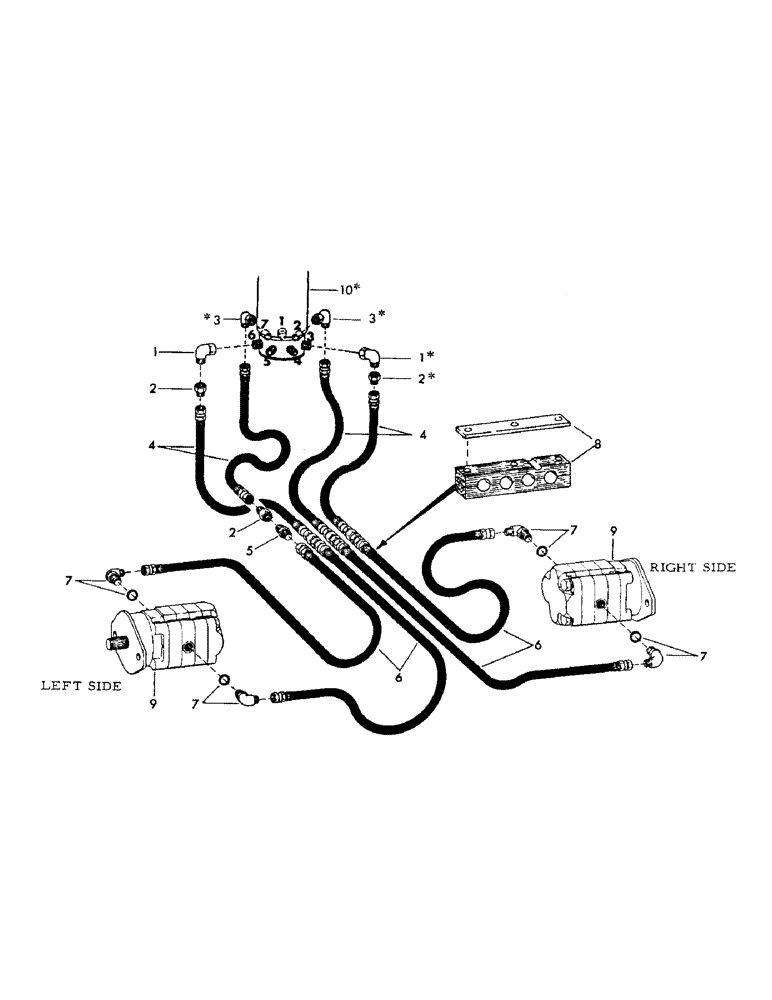

Запчасти Case 40YC (G17) - SWIVEL TO TRACK DRIVE MOTORS AND RETURN, (USED ON UNITS WITH (07) - HYDRAULIC SYSTEM

1

10361

BRACKET

ELBOW - 90 degrees swivel - 1-5/16" male x 1-5/16" female

2шт.

2

101832

ADAPTER, reducing - 1" x 3/4" reduction

6шт.

6279

NUT, tube

6шт.

3

10359

TUBE ASSY.

ELBOW, 90 degrees swivel - 1-1/16" male x 1-1/16" female

2шт.

4

15468

BUSHING

HOSE, high pressure - 3/4" ID x 28" long

4шт.

5

101338

UNION, flared - 1-5/16" male x 1-5/16" female

4шт.

6

8628

HOSE, high pressure - 1" ID x 36" long

4шт.

7

7952

BRACKET

ELBOW - 90 degrees swivel - 1-5/16" male x 1-5/8" male (Includes "O" ring)

4шт.

6073

O-RING

"O" RING - 1.475" ID x 1.711" O.D.

4шт.

8

209695

BLOCK, wood

1шт.

79724

BAR

1шт.

4399

WASHER

- 1/2"

3шт.

4224

NUT - 1/2" NC

3шт.

2479

BUSHING

CPSW - 1/2" x 4-1/2" NC grade 5

3шт.

9

MOTOR, track drive - (For breakdown, see section "H")

2шт.

Change in listing.

1шт.

10

SWIVEL, hydraulic - (For breakdown, see section "H")

1шт.

Change in listing.

1шт.
