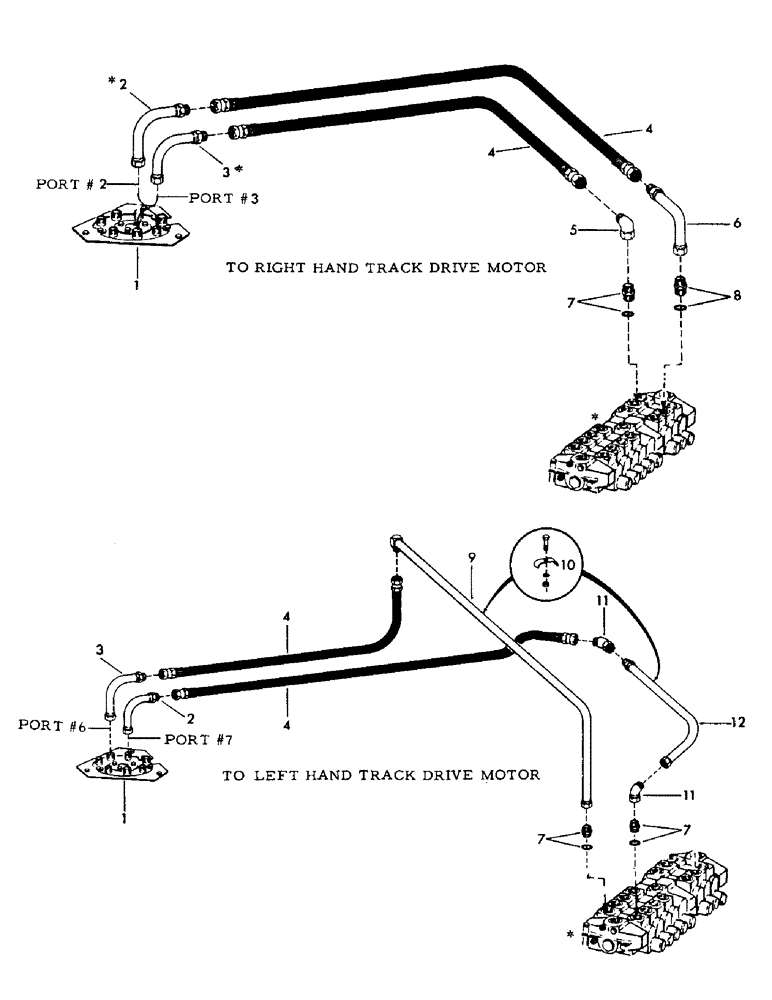

Запчасти Case 40YC (G14) - MAIN VALVE TO SWIVEL AND RETURN FOR TRACK DRIVE MOTORS (07) - HYDRAULIC SYSTEM

1

SWIVEL, hydraulic - (For breakdown, see section "H")

1шт.

Change in listing.

1шт.

2

208825

LINE, hydraulic

2шт.

3

208826

LINE, hydraulic

2шт.

4

8628

HOSE, high pressure - with pressed on couplings - 1" ID x 36" long

4шт.

5

10361

BRACKET

ELBOW - 90 degrees swivel - 1" NF male x 1" NF female

1шт.

6

208823

LINE, hydraulic

1шт.

7

66480

SPROCKET

CONNECTOR, straight - 1-5/16" male x 1-5/16" female (Includes "O" ring)

3шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" OD

1шт.

8

7972

JACK

CONNECTOR, flared - 1-5/16" male x 1-5/16" (Includes "O" ring)

1шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" OD

1шт.

9

208822

LINE, hydraulic

1шт.

10

46397

PIPE CLAMP

CLAMP, tube

1шт.

78360

BRACKET

1шт.

2472

CPSW - 1/2" x 2-3/4" NC gr. 5

1шт.

4399

WASHER

LOCKWASHER - 1/2"

1шт.

4224

NUT - 1/2" NC

1шт.

7389

WASHER, flat - 1/2" NC

1шт.

11

9494

ELBOW - 45 degrees swivel - 1-5/16" male x 1-5/16" female

2шт.

12

208824

LINE, hydraulic

1шт.
