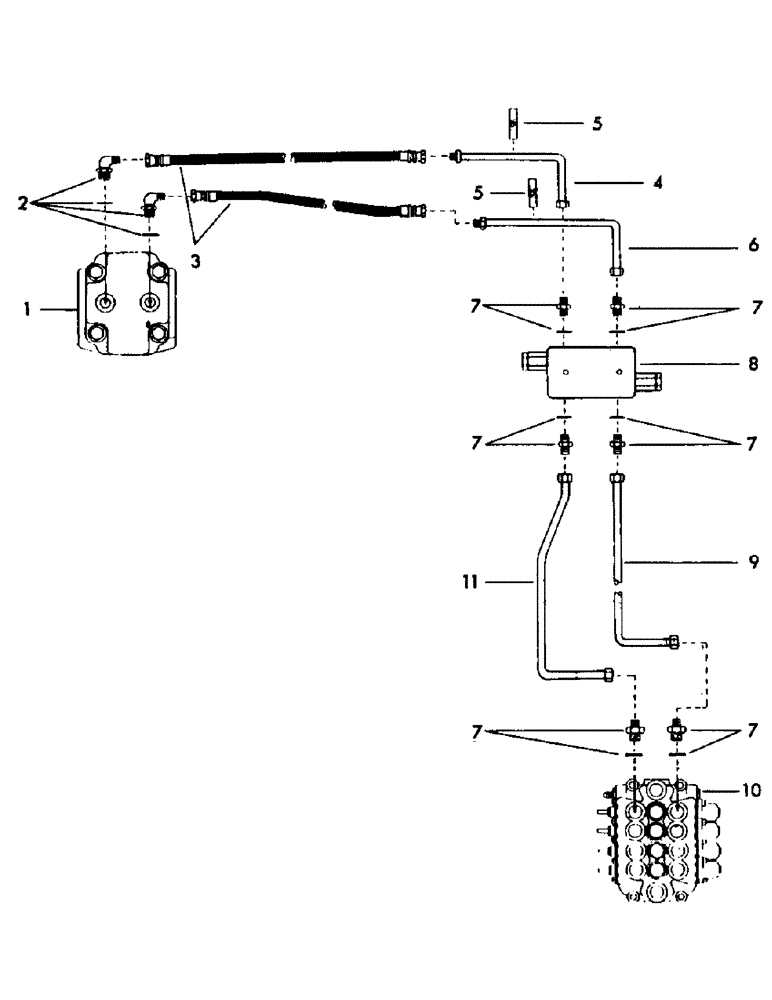

Запчасти Case 40YC (G09A) - VALVE TO SWING MOTOR AND RETURN, (USED ON UNITS WITH SERIAL (07) - HYDRAULIC SYSTEM

1

MOTOR, swing - (For breakdown, see section "H")

1шт.

2

7944

HYDRAULIC HOSE,0.50" ID x 100.00", SAE J517,SAE J516,SAE 100R17

ELBOW, 90 degrees - (1" tube) - 1-5/16" - 12 male x 1-1/16 - 12 male - 37 degrees flared - (Includes "O" ring)

2шт.

6065

O-RING

"O" RING - .924" ID x 1.156" OD

2шт.

3

8628

HOSE, high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on coulings)

2шт.

4

502076

LINE, hydraulic

1шт.

5

77469

CLAMP, tube

2шт.

76681

SPACER

BLOCK, spacer

2шт.

7389

WASHER, flat - 3/8"

2шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

2шт.

6

502077

LINE, hydraulic

1шт.

7

7972

JACK

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring)

6шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" OD

6шт.

8

VALVE, swing inline cross over relief - (For breakdown, see section "H")

1шт.

9

502075

LINER

LINE, hydraulic

1шт.

10

VALVE, main - inside - (For breakdown, see section "H")

1шт.

11

502074

LINER

LINE, hydraulic

1шт.
