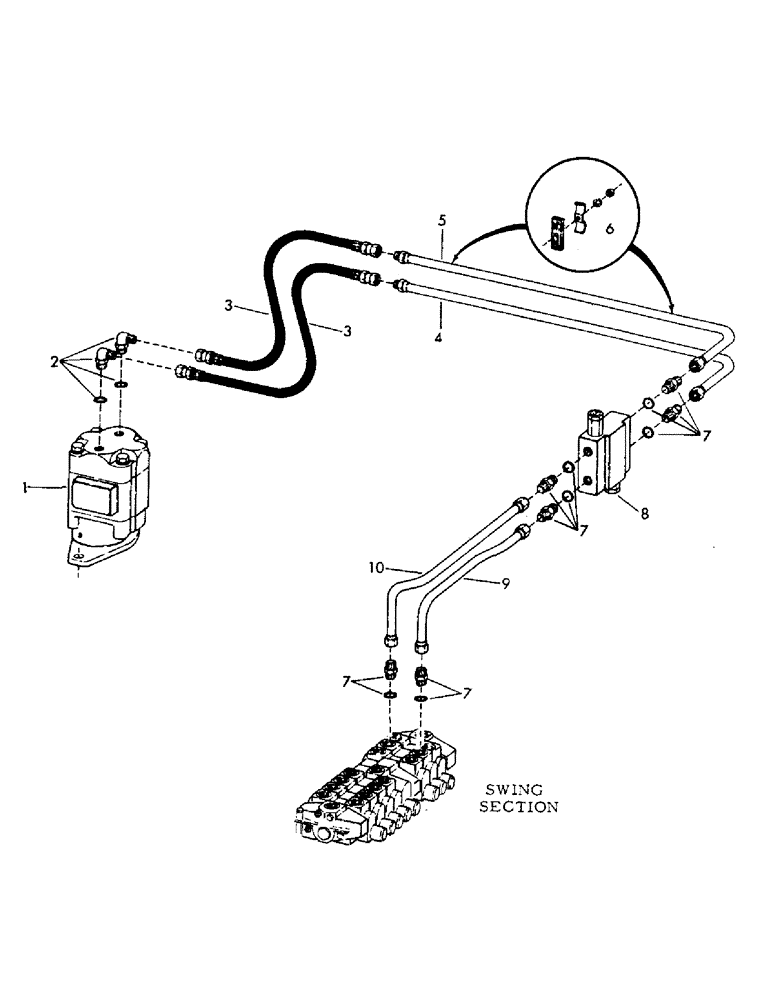

Запчасти Case 40YC (G09) - MAIN VALVE TO SWING MOTOR AND RETURN, * (USED ON UNITS WITH (07) - HYDRAULIC SYSTEM

1

33530M1

MOTOR, swing - for breakdown and mounting hardware, (See section "H")

1шт.

2

7944

HYDRAULIC HOSE,0.50" ID x 100.00", SAE J517,SAE J516,SAE 100R17

ELBOW, 90 degrees swivel - 1-5/16" male x 1-5/16" male

2шт.

6065

O-RING

"O" RING - 59/64" ID x 1-1/64" OD

2шт.

3

8628

HOSE, high pressure - 1" ID x 36" long

2шт.

4

37673

LINE, hydraulic

1шт.

5

37713

LINE, hydraulic

1шт.

6

74460

CLAMP, tube

2шт.

76681

SPACER

1шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

2шт.

7389

WASHER - 3/8"

2шт.

7

7972

JACK

CONNECTOR, flared - 1-5/16" male x 1-5/16" male

6шт.

6069

O-RING

"O" RING - 1-11/64" ID x 1-13/32" OD

6шт.

8

37296M1

VALVE, cross over relief - (For breakdown, see section "H")

1шт.

9

39049

LINE, hydraulic

1шт.

10

39050

LINE, hydraulic

1шт.
