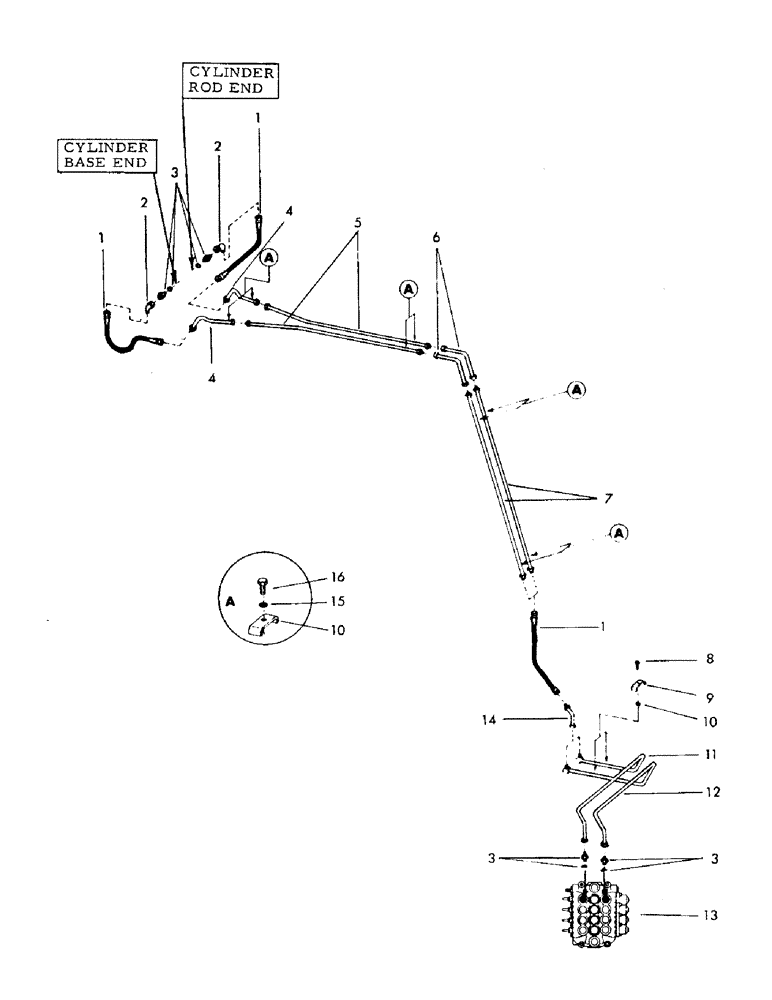

Запчасти Case 40YC (G06A) - VALVE TO TOOL CYLINDER AND RETURN FOR "Y" BOOM, (USED ON (07) - HYDRAULIC SYSTEM

1

8628

HOSE, high pressure - 1" ID x 36" long - (With 1-5/16"-12 female pressed on couplings)

4шт.

2

10361

BRACKET

ELBOW, swivel 90 degrees - (1" tube) - 1-5/16"-12 male x 1-5/16"-12 female - 37 degrees flared

2шт.

3

7972

JACK

CONNECTOR - (1" tube) - 1-5/16"-12 male x 1-5/16"-12 male - 37 degrees flared - (Includes "O" ring)

4шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

4шт.

4

211907

LEVER

LINE, hydraulic

2шт.

5

502566

LINE, hydraulic

2шт.

6

501696

PLATE

LINE, hydraulic

2шт.

7

211941

LINE, hydraulic

2шт.

8

2473

BOLT

CPSW - 1/2" x 3" NC grade 5

2шт.

9

46397

PIPE CLAMP

CLAMP, tube

10шт.

10

17169

NUT, self locking - 1/2" NC

2шт.

11

502080

MANIFOLD

LINE, hydraulic

1шт.

12

502081

SPARE PART

LINE, hydraulic

1шт.

13

VALVE, main - outer - (For breakdown, see section "H")

1шт.

14

211849

LINE, hydraulic

2шт.

15

4399

WASHER

LOCKWASHER - 1/2"

8шт.

16

2470

DISC

CPSW - 1/2" x 2-1/4" NC grade 5

8шт.
