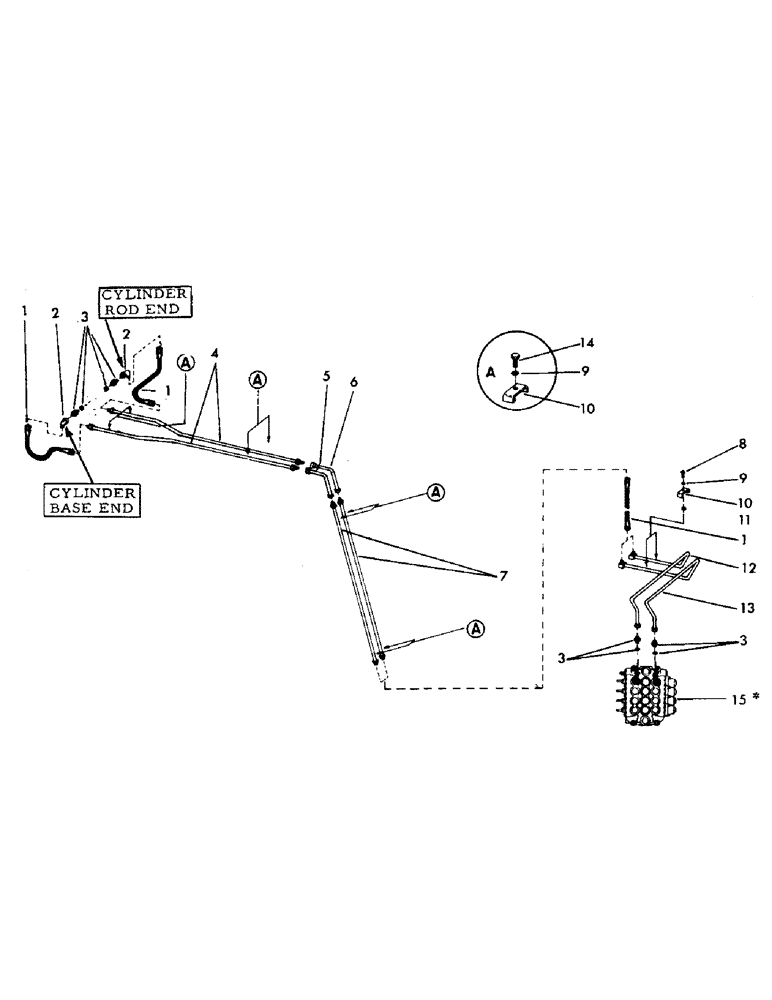

Запчасти Case 40YC (G06) - VALVE TO TOOL CYLINDER AND RETURN FOR "Y" BOOM, (USED ON (07) - HYDRAULIC SYSTEM

1

8628

HOSE, high pressure - 1" ID x 36" long - (With 1-5/16" female pressed on coulings)

4шт.

2

10361

BRACKET

ELBOW, 90 degrees - (1" tube) - 1-5/16"-12 male x 1-5/16"-12 female - 37 degrees flared

2шт.

3

7972

JACK

CONNECTOR - (1" tube) - 1-5/16"-12 male x 1-5/16"-12 male - 37 degrees flared - (Includes "O" ring)

4шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

4шт.

4

207136

LINE, hydraulic - (Used on units with serial number 1 thru 721)

2шт.

501695

ADAPTER

LINE, hydraulic - (Used on units with serial number 722 thru 909)

2шт.

Change in listing.

1шт.

5

37710

VALVE

LINE, hydraulic - (Used on units with serial nubmer 1 thru 721)

1шт.

501696

PLATE

LINE, hydraulic - (Used on units with serial number 722 thru 909)

1шт.

Change in listing.

1шт.

6

37707

OIL SEAL,41.27mm ID x 54.13mm OD x 6.91mm Thk

LINE, hydraulic - (Used on units with serial number 1 thru 722)

1шт.

501696

PLATE

LINE, hydraulic - (Used on units with serial number 722 thru 909)

1шт.

Change in listing.

1шт.

7

207134

LINE, hydraulic

2шт.

8

2474

SHEAVE

CPSW - 1/2" x 3-1/4" NC grade 5

2шт.

9

4399

WASHER

LOCKWASHER - 1/2"

10шт.

10

46397

PIPE CLAMP

CLAMP, tube

10шт.

11

17169

NUT, self locking - 1/2" NC

2шт.

12

39053

LINE, hydraulic - to tool valve section spool end - (Used on units with serial number 1 thru 899)

1шт.

502080

MANIFOLD

LINE, hydraulic, - to outside valve front port - (Used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.

13

39052

LINE, hydraulic - to tool valve section cap end - (Used on units with serial number 1 thru 899)

1шт.

502081

SPARE PART

LINE, hydraulic - to outside vlave rear port - (Used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.

14

2470

DISC

CPSW - 1/2" x 2-1/4" NC grade 5

8шт.

15

VALVE, main - outer - (For breakdown, see section "H") - (Used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.
