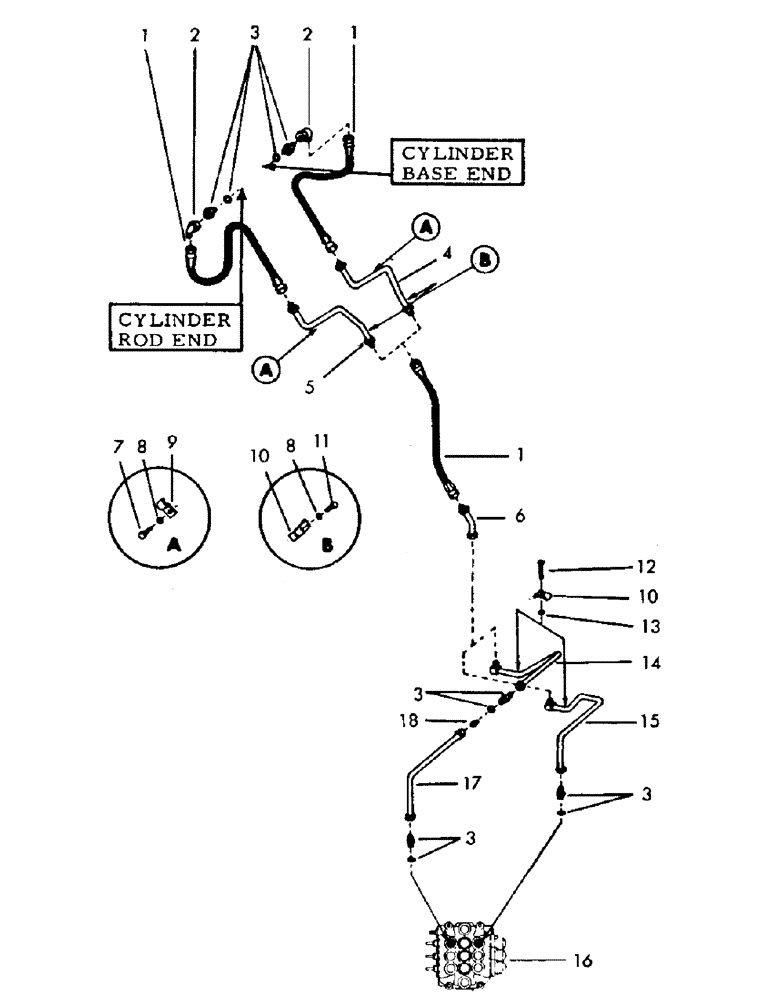

Запчасти Case 40YC (G04B) - VALVE TO CROWD CYLINDER AND RETURN FOR "Y" BOOM, (USED ON (07) - HYDRAULIC SYSTEM

1

8628

HOSE, high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

2

10361

BRACKET

ELBOW, swivel 90 degrees - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

2шт.

3

7972

JACK

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring)

5шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" OD

5шт.

4

502408

LINE, hydraulic

1шт.

5

504209

LINE, hydraulic

1шт.

6

211849

LINE, hydraulic

2шт.

7

2465

ENGINE

CPSW - 1/2" x 1" NC gr. 5

2шт.

8

4399

WASHER

LOCKWASHER - 1/2"

4шт.

9

79583

CLAMP, tube

2шт.

10

46397

PIPE CLAMP

CLAMP, tube

4шт.

11

2470

DISC

CPSW - 1/2" x 2-1/4" NC gr. 5

2шт.

12

2473

BOLT

CPSW - 1/2" x 3" NC gr. 5

2шт.

13

17169

NUT, self locking - 1/2" NC

2шт.

14

502109

SPARE PART

LINE, hydraulic

1шт.

15

502079

PLUG

LINE, hydraulic

1шт.

16

VALVE, main - inner - (For breakdown, see section "I")

1шт.

17

502078

SUPPORT

LINE, hydraulic

1шт.

18

79252

REGULATOR, flow

1шт.
