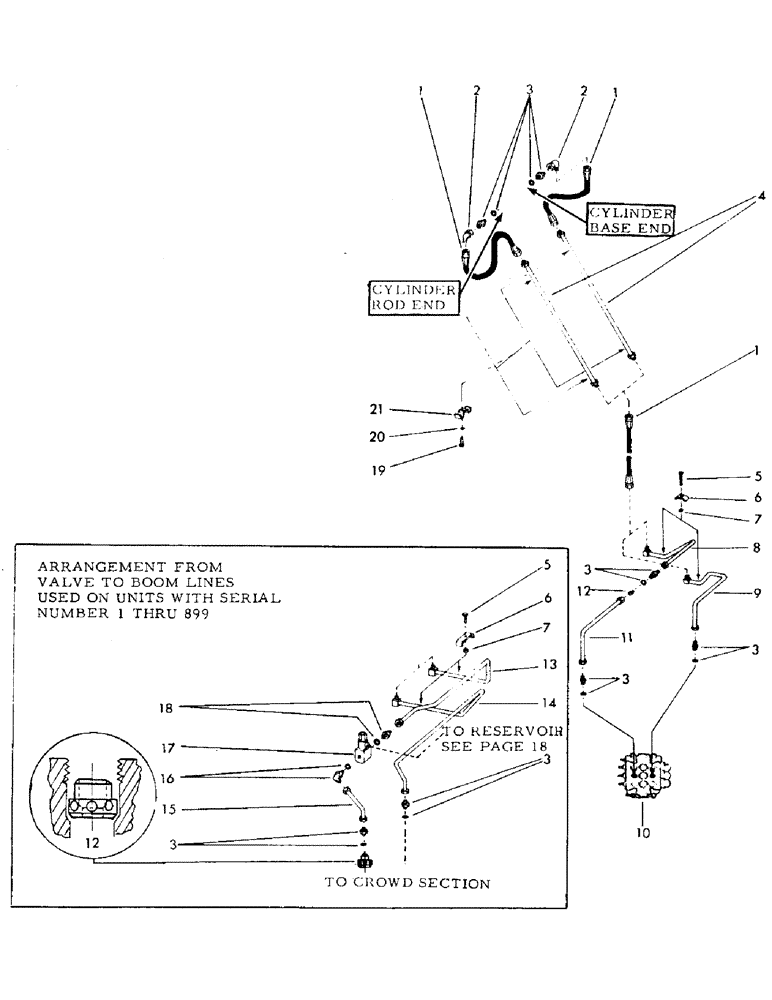

Запчасти Case 40YC (G04) - VALVE TO CROWD CYLINDER AND RETURN FOR "Y" BOOM, (USED ON (07) - HYDRAULIC SYSTEM

1

8628

HOSE, high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

2

10361

BRACKET

ELBOW, 90 degrees - swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" female - 37 degrees flared

2шт.

3

7972

JACK

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring) - (Quantity of 4 used on units with serial number 1 thru 899 and quantity of 5 used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

1шт.

4

207133

LINE, hydraulic

2шт.

5

2473

BOLT

CPSW - 1/2" x 3" NC grade 5

2шт.

6

46397

PIPE CLAMP

CLAMP, tube

2шт.

7

17169

NUT, self locking - 1/2" NC

2шт.

8

502109

SPARE PART

LINE, hydraulic - (Used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.

9

502079

PLUG

LINE, hydraulic - (Used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.

10

VALVE, main - inner - (For breakdown, see section "H") - (Used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.

11

502078

SUPPORT

LINE, hydraulic - (Used on units with serial number 900 thru 909)

1шт.

Change in listing.

1шт.

12

79252

REGULATOR, flow

1шт.

13

39048

LINE, hydraulic - (Used on units with serial number 1 thru 899)

1шт.

14

39054

LINE, hydraulic - (Used on units with serial number 1 thru 899)

1шт.

15

39051

LINE, hydraulic - (Used on units with serial number 1 thru 899)

1шт.

16

7943

ELBOW, 90 degrees - adjustable - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Includes "O" ring) - (Used on units with serial number 1 thru 899)

1шт.

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

1шт.

17

VALVE, inner relief - (For breakdown, see section "H") - (Used on units with serial number 1 thru 899)

1шт.

18

7984

COVER

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/8" - 12 male - (Includes "O" ring) - (Used on units with serial number 1 thru 899)

1шт.

19

2465

ENGINE

CPSW - 1/2" x 1" NC grade 5

4шт.

20

4399

WASHER

LOCKWASHER - 1/2"

4шт.

21

77469

CLAMP, tube

4шт.

Change in listing.

1шт.
