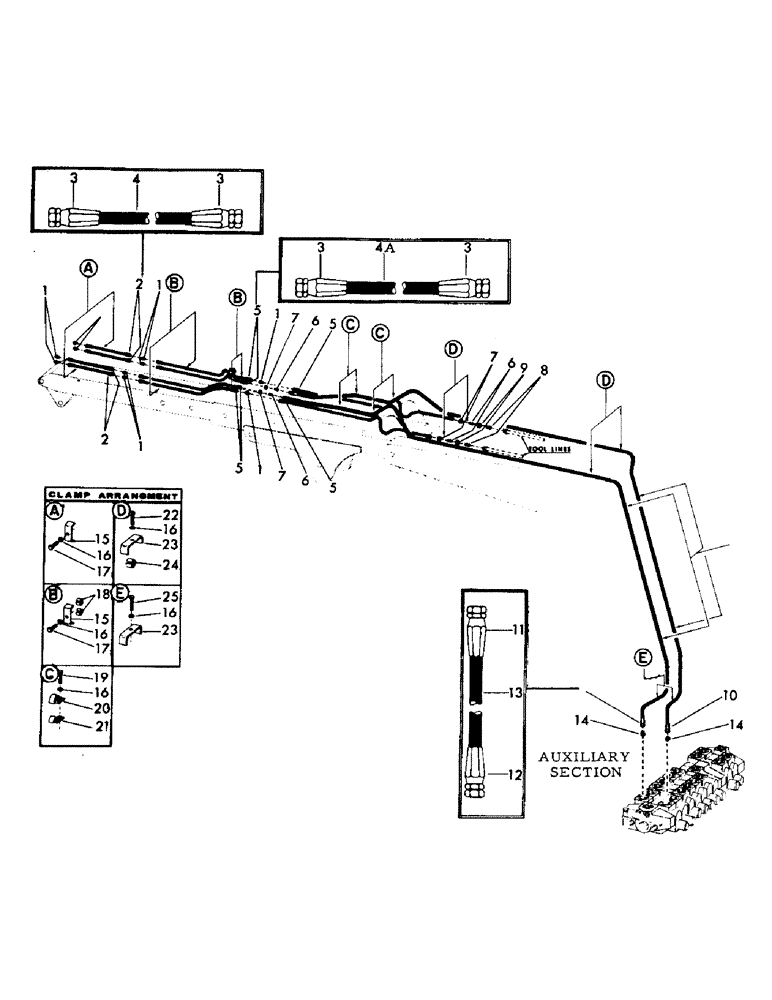

Запчасти Case 40YC (F22) - "Y" BOOM HYDRAULICS FOR 5/8 CORD AND 3/4 CORD PULPWOOD CLAMS (07) - HYDRAULIC SYSTEM

1

NLS

NO LONGER SERVICED

UNION, flared - 3/4" male x 3/4" male

10шт.

2

11236

HOSE, high pressure - 3/8" ID x 26" long (Consists of items 3 and 4)

4шт.

3

11091

COUPLING, reusable - 3/4" JIC female thread

20шт.

4

28465

HOSE, high pressure - 3/8" ID x 24" long (Bulk)

4шт.

4a

28465

HOSE, high pressure - 3/8" ID x 7' 1/2" long (Bulk)

6шт.

5

11234

ROLLER BEARING

HOSE, high pressuer - 3/8" ID x 7' 2-1/2" long (Consists of items 3 and 4A)

6шт.

6

101833

ADAPTER, reducing - 3/4" x 1/2" reduction - 3/4" JIC thread

4шт.

7

6277

O-RING

NUT, sleeve - 1-1/16"

4шт.

8

101832

ADAPTER, reducing - 1" x 3/4" reduction - 1-1/16" JIC thread

2шт.

9

6279

NUT, sleeve - 1-5/16"

2шт.

10

75824

PISTON PIN

HOSE, high pressure - 3/4" ID x 28' long (Consists of items 11 thru 13)

2шт.

11

60037

COUPLING, reusable - 1-1/16" JIC male thread

2шт.

12

11094

COUPLING, reusable - 1-1/16" JIC female thread

2шт.

13

28463

HOSE, high pressure - 3/4" ID x 27' 10" long (Bulk)

2шт.

14

7969

HYDRAULIC HOSE

CONNECTOR, flared - 1-5/16" x 1-1/16" (Includes "O" ring)

2шт.

6069

O-RING

"O" RING - 1-11/16" ID x 1-13/32" OD

2шт.

15

208409

CLAMP, hose

6шт.

16

4399

WASHER

LOCKWASHER - 1/2"

20шт.

17

2469

CPSW - 1/2" x 2" NC gr. 5

6шт.

18

75792

COVER

RING, compression - 3/8"

8шт.

19

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC gr. 5

4шт.

20

75850

ENGINE FLYWHEEL

CLAMP, hose - 3/4"

4шт.

21

75849

WEIGHT

CLAMP, hose - 3/8"

4шт.

22

2471

DISC

CPSW - 1/2" x 2-1/2" NC gr. 5

8шт.

23

46397

PIPE CLAMP

CLAMP, tube

10шт.

24

75794

BOWL

RING, compreesion

8шт.

25

2473

BOLT

CPSW - 1/2" x 3" NC gr. 5

2шт.
