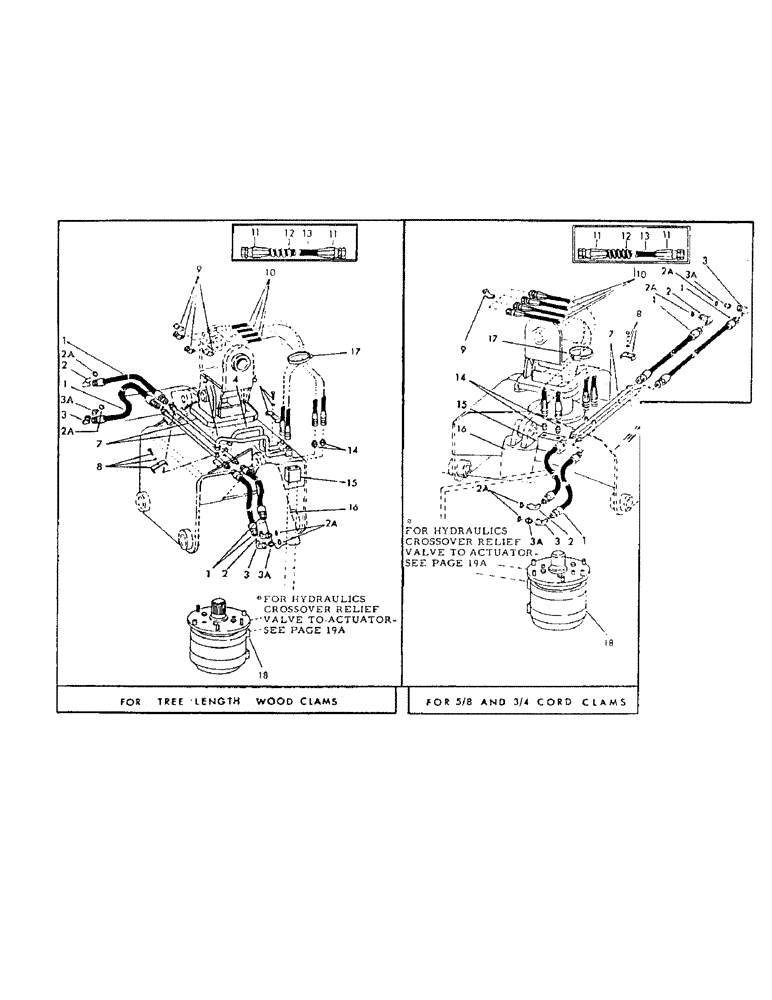

Запчасти Case 40YC (F18) - CLAM HYDRAULICS FOR:, TREE LENGTH WOOD CLAM, (USED ON CLAMS (07) - HYDRAULIC SYSTEM

1

8577

CAP

HOSE, high pressure - 1/2" ID x 20" long (With pressed on couplings)

4шт.

2

2092

ELBOW - 90 degrees adjustable - 7/8" NF male x 3/4" NF male (Includes Ref. 2A)

2шт.

2a

6061

O-RING

"O" RING - .644" ID x .818" O.D.

4шт.

Change in listing.

1шт.

3

10358

LARGE PLATE

ELBOW - 90 degrees swivel - 7/8" NF male x 7/8" NF female

2шт.

3a

7982

CHAIN

ADAPTER, straight - 7/8" NF male x 3/4" NF male (Includes Ref. 2A) adapters come with cylinders

2шт.

4

38764

WOODRUFF KEY

LINE, hydraulic (Inside)

1шт.

5

38763

LINE, hydraulic (Outside)

1шт.

6

45187

SEAT CUSHION

CLAMP, hydraulic line

1шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC grade 5

1шт.

4397

LOCKWASHER - 3/8"

1шт.

7

207807M1

LINE, hydraulic (Rear cross)

2шт.

8

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

CLAMP, hydraulic line,Weld Assy., Brake

2шт.

2403

LAMP

CPSW - 3/8" x 1-1/2" NC grade 5

2шт.

4397

LOCKWASHER - 3/8"

2шт.

9

9490

SEAL

ELBOW - 45 degrees - 3/4" NF male x 3/4" NF female

4шт.

10

60854

HOSE, high pressure - 3/8" ID x 56" long, Consists of Refs. 11, 12 and 13

4шт.

11

11091

COUPLING, re-usable - 3/4" JIC female

12шт.

12

78777

GUARD, armor - 7/8" ID x 50" long

2шт.

13

28465

HOSE, high pressure - (Bulk) 4 pieces 3/8" ID x 53" long (212")

1шт.

14

60833

ADAPTER, straight - 3/4" NF male x 3/8" NPT female

2шт.

15

VALVE, crossover relief (See section "I")

1шт.

2354

CPSW - 1/4" x 1-3/4" NC grade 5

2шт.

4395

WASHER

LOCKWASHER - 1/4"

2шт.

16

CYLINDER, clam - right hand (See section "H")

1шт.

CYLINDER, clam - left hand (See section "H")

1шт.

17

10877

CLAMP, hose - fits hose 1-1/2" O.D. thru 2" O.D.

2шт.

18

MOTOR, clam actuator - (See section "I")

1шт.
