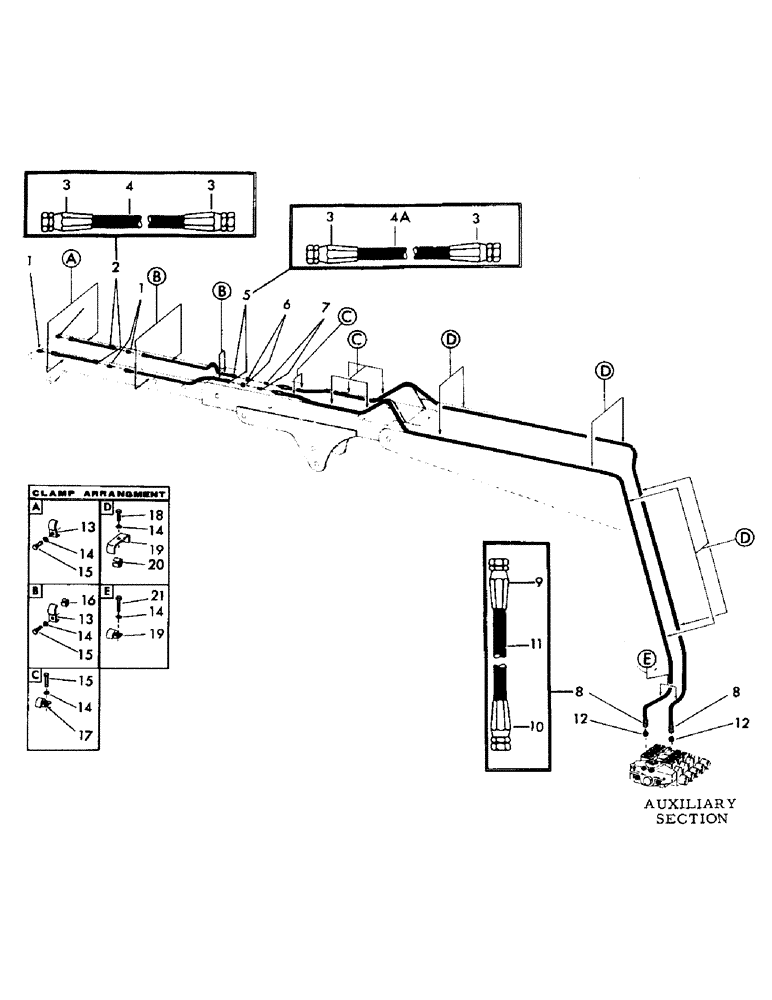

Запчасти Case 40YC (F10) - "Y" BOOM HYDRAULICS FOR WRIST-O-TWIST (07) - HYDRAULIC SYSTEM

1

NLS

NO LONGER SERVICED

UNION, flared - 3/4" male x 3/4" male

4шт.

2

11236

HOSE, high pressure - 3/8" ID x 26" long (Consists of items 3 and 4)

2шт.

3

11091

COUPLING, reusable - 3/4" JIC female thread

8шт.

4

28465

HOSE, high pressure - 3/8" ID x 24" long (Bulk)

2шт.

4a

28465

HOSE, high pressure - 3/8" ID x 7' 1/2" long (Bulk)

2шт.

5

11234

ROLLER BEARING

HOSE, high pressure - 3/8" x 7' 2-1/2" long (Consists of items 3 and 4A)

2шт.

6

6277

O-RING

NUT, sleeve - 1-1/16 NF

2шт.

7

101833

ADAPTER, reducing - 3/4" x 1/2" reduction - 3/4" JIC thread

2шт.

8

75824

PISTON PIN

HOSE, high pressure - 3/4" ID x 28' long - (Consists of items 9 thru 11)

2шт.

9

60037

COUPLING, reusable - 1-1/16" JIC male thread

2шт.

10

11094

COUPLING, reusable - 1-1/16" JIC female thread

2шт.

11

28463

HOSE, high pressure - 3/4" ID x 27' 10" long (Bulk)

2шт.

12

7969

HYDRAULIC HOSE

CONNECTOR, flared - 1-5/16" male x 1-1/16" male (Includes "O" ring)

2шт.

6069

O-RING

"O" RING - 1-11/64" ID x 1-13/32" OD

2шт.

13

77324

CLAMP, tube

2шт.

14

4399

WASHER

LOCKWASHER - 1/2"

22шт.

15

2465

ENGINE

CPSW - 1/2" x 1" NC gr. 5

12шт.

16

75792

COVER

RING, compression - 3/8"

4шт.

17

75850

ENGINE FLYWHEEL

CLAMP, hose

6шт.

18

2471

DISC

CPSW - 1/2" x 2-1/2" NC gr. 5

8шт.

19

46397

PIPE CLAMP

CLAMP, tube

10шт.

20

75794

BOWL

RING, compression - 3/4"

4шт.

21

2473

BOLT

CPSW - 1/2" x 3" NC gr. 5

2шт.
