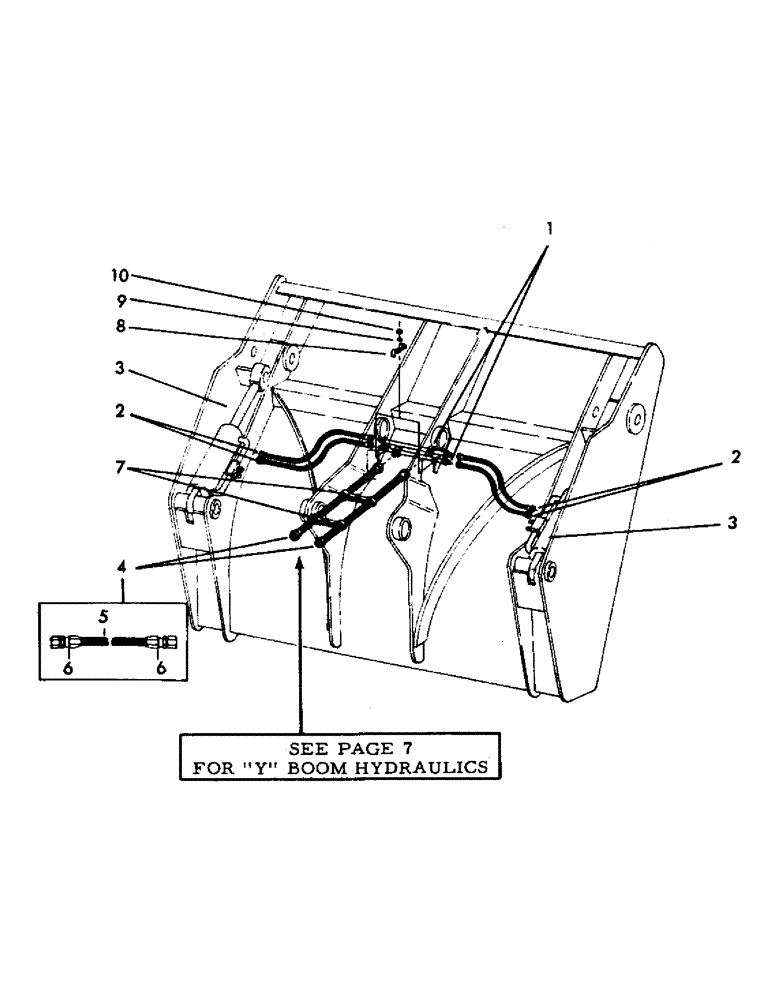

Запчасти Case 40YC (F06) - 4-IN-1 HYDRAULICS (07) - HYDRAULIC SYSTEM

1

207722

LINE, hydraulic

2шт.

2

11226

HOSE, high pressure - 3/8" ID x 32" long (Pressed on couplings)

4шт.

3

31431M2

CYLINDER - 4-in-1 (See section "H")

2шт.

4

11237

BACK PLATE

HOSE, high pressure - 3/8" ID x 28" long (Consists of items 6 and 7)

2шт.

5

28465

HOSE, high pressure - 3/8" x 26" long (Bulk)

2шт.

6

11091

COUPLING, reusable - 3/4" JIC female thread

4шт.

7

76712

YOKE

CLAMP, hose

4шт.

2401

LAMP

CPSW - 3/8" x 1" NC gr. 5

2шт.

4397

LOCKWASHER - 3/8"

2шт.

4222

NUT - 3/8" NC

2шт.

8

45173

HOUSING

CLAMP, tube

2шт.

9

4397

LOCKWASHER - 3/8"

2шт.

10

4222

NUT - 3/8" NC

2шт.
